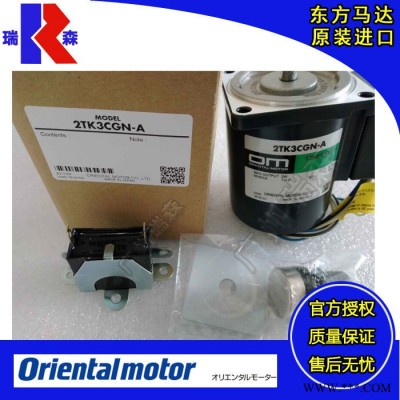

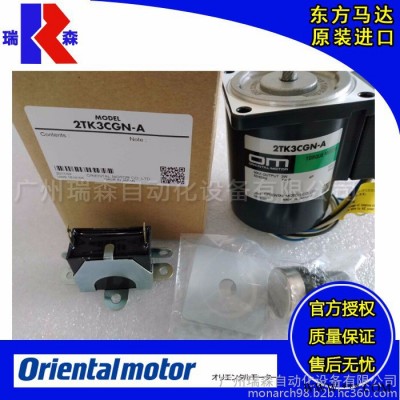

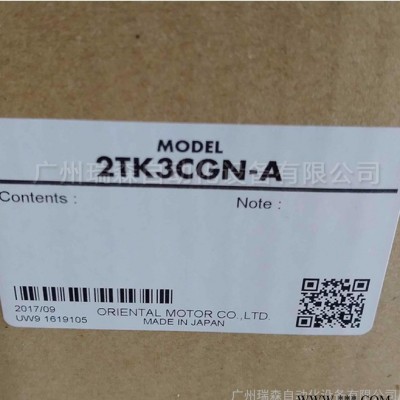

型號：2TK3CGN-A
品名：東方馬達扭矩馬達

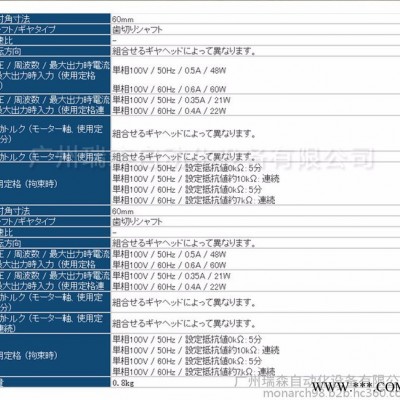

安裝角尺寸：60毫米
軸/齒輪型：牙軸
減速比：-
旋轉方向：組合せる減速機不同而不同。
電壓/電流/輸出電流/最大輸出時電流/輸出時輸入（使用額定5分鐘）。
單相100 V / 50 Hz / 50 Hz / 48 W
單相100 V / 60 Hz / 60
電壓/輸出/最大輸出時電流/最大輸出時輸入（使用額定連續）
單相100V / 50Hz / 0.35 A / 21 W
單相100 V / 60 Hz / 22 W / 22 W
起動轉矩（馬達軸、使用額定5分）
組合せる減速機不同而不同。
起動轉矩（馬達軸、連續額定連續）
組合せる減速機不同而不同。
使用額定（限制時間）
單相100 V / 50 Hz /設定抵抗值0 kΩ：5分
單相100 V / 50 Hz /設定抵抗值約10 kΩ：連續
單相100 V / 60 Hz /設定抵抗值0 kΩ：5分
單相100 V / 60 Hz /設定抵抗值約7 kΩ：連續
最大輸出功率（使用額定5分鐘）
單相100 V / 50 Hz：3 W（設置電阻值0）Ω）
單相100 V / 60 Hz：4 W（設定電阻值0）Ω）
最大輸出額定連續連續
單相100 V / 50 Hz：（設定的電阻值約10 kΩ）
單相100 V / 60 Hz：（設定的電阻值約7 kΩ）。
最大輸出時轉速/輸出時轉矩（馬達軸、使用額定5分鐘）。
單相100V / 50Hz : 750/ min / 40 mN･m（設定抵抗值0 kΩ）
單相100V / 60Hz : 900/ min / 44 mN･m（設定抵抗值0 kΩ）
最大輸出時轉速/最大輸出時轉矩（馬達軸、連續額定連續）
單相100V / 50Hz : 750/ min / 11 mN･m（設定抵抗值約10 kΩ）
單相100V / 60Hz : 900/ min / 9 mN･m（設定抵抗值約7 kΩ）
齒輪頭輸出軸的起動轉矩（使用額定5分鐘）。
組合せる減速機不同而不同。
允許慣性力矩J
組合せる減速機不同而不同。
電容電容器容量：7μF
電源輸入電壓：單相100 V
電源輸入：50 / 60 Hz
扭矩設定方法：可變電阻器（附件，20 kΩ）
質量：0.8公斤
