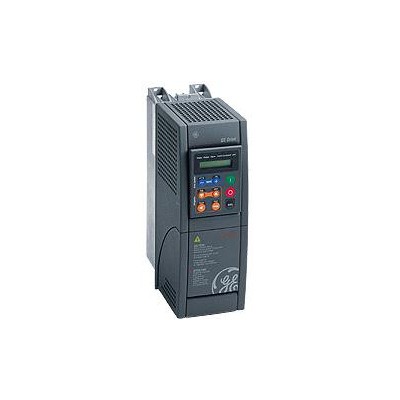

AV-300i 交流調速傳動系列是全數字微機控制矢量型的交流調速裝置。具有高性能的閉環磁場定向矢量控制（數字編碼器、正余弦編碼器），無測速反饋的磁場定向矢量控制，V/F壓頻比控制等多項運行模式。
Cat. GE IEC 146 Class 1 Motor Output Motor Output Drive Output KVA
Number Model AC Input Current (A) Kilowatt Horsepower 150% Overload 60s
460V AC Input 400V AC Input 460V IEC 146 Class 2
D6050 6KAVI43F75Y1** 1.6 0.75 1 1.4
D6051 6KAVI43001Y1** 2.7 1.5 2 2.4
D6052 6KAVI43002Y1** 3.8 2.2 3 3.4
D6053 6KAVI43003Y1** 5 3 4 4.5
D6054 6KAVI43005Y1** 6.5 4 5 5.9
D6055 6KAVI43007Y1** 8.5 5.5 7.5 7.7
D6056 6KAVI43010Y1** 12 7.5 10 10.9
D6057 6KAVI43015Y1** 16.8 11 15 15.3
D6058 6KAVI43020Y1** 22.4 15 20 20.3
D6059 6KAVI43025Y1** 32 22 25 29
D6060 6KAVI43030Y1** 42 30 30 38.2
D6061 6KAVI43040Y1** 55 37 40 50
D6062 6KAVI43050Y1** 64 45 50 58.3
D6063 6KAVI43060Y1** 79 55 60 72
D6064* 6KAVI43075X1** 98 75 75 89.2
D6065* 6KAVI43100X1** 128 90 100 116.5
D6066* 6KAVI43125X1** 145 110 125 132
D6067* 6KAVI43150X1** 173 132 150 157.5
D6068* 6KAVI43200X1** 224 160 200 204
D6069 DSAVI43250Y1** 247 200 250 302
D6070 DSAVI43300Y1** 329 225 300 361
D6071 DSAVI43350Y1** 414 250 350 414
D6072 DSAVI43400Y1** 480 300 400 477
D6073 DSAVI43450Y1** 551 335 450 515
D6074 DSAVI43500Y1** 634 375 500 590
D6075 DSAVI43600Y1** 685 450 600 728
D6076 DSAVI43700Y1** 787 525 700 788
D6077 DSAVI43800Y1** 971 600 800 900

AV-300i Options & Accessories
Deion Model No.
RS 485/232 Converter ??6KCV300CTI A3429
External Brake Unit (20 A) 230-460 Vac ?6KBU300-20 A3423
External Brake Unit (50 A) 230-460 Vac ?6KBU300-50 A3421
External Brake Unit (85 A) 230-460 Vac ?6KBU300-85 A3422
Genius? Option Card??? ?HE300GEN250 A3430
DeviceNet? Option Card ?6KCV301DNET A3431
Profibus-DP Bus Communication Option Card ?6KCV301PDP33 A3432
DGF Card ????6KCV301DGF A3434
Digital I/O Card ??6KCV301D8R4 A3435
Analog I/O Card? ?6KCV301D14A4F A3436
Analog I/O Plus Card ??6KCV301D20A6 A3437
Encoder Input Card? ?6KCV301ENC A3438
AV-300i Demo Kit ??6KAIDK A3442 3,
Keypad Mounting Kit ??6KCV301KPDMK A3441

AV-300i . Adjustable Frequency Flux Vector Drive

Part No. Board Name Drive Hp and Quantity Per Drive
0.75 1 2 3 5 7.5 10 15 20 25 30 40 50 60 75 100 125 150 200

Regulation Card
6KS501R RV33-1 (rev. 1) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
6KS504R RV33-1-2 (rev. 2) 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
