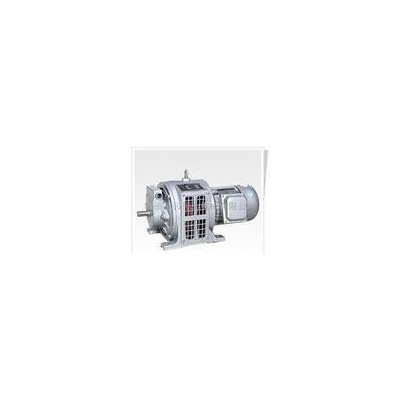

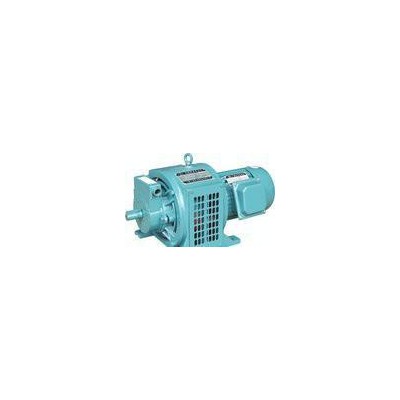

一YCT 系列電磁調速電動機
YCT Serles Electromagnetic Adjustable Speed Motor
□ 概述
YCT 系列電磁調速電動機是機械工業部組織設計的Y 系列異步電動機的主要派生系
列。電磁調速電動機由拖動電機（Y 系列電動機）、電磁轉差離合器和控制器三部份組成，
可用于恒轉距負載場合，特別適宜在遞減轉矩負載中使用（例如離心式水泵和風機），有較
明顯的節能效果。
YCT 系列電磁調速電動機能在規定的調速范圍內均勻地、連續地?zé)o級調速，并能輸出
額定轉矩，電機在運行中當負載轉矩變動時可通過控制器的速度負反饋系統自動調節離合器
的勵磁電流，使輸出轉速基本上保持不變。
本系列電機有全國統一的技術條件，并且外形安裝尺寸、拖動電機及其它易損件全國各
生產廠均為統一，可以互換。
□ Description
The YCT series electromagnetic andjustable speed motor is one of the derived series from Y
series asynchronous motor,which is designed under the organization of the Minstry of Mechaical
& Electronic Industries of the PRC The electromagnetic adjustable speed motor is composed of
three parts, ie. The driving motor (Y series motor) electromagnetic slip coupling and controller. It
is usually used under a constant torque load and is particularly suitable for the use under the load
with a decreasing torque such as the centrifugal pump and blower, etc. featuring evident
energy-saving efficiency.
The speed of the electromagnetic adjustable speed motor can be adjusted uniformly
continuously and steplessly within the specified adjustable speed range with an output of rated
torque. When the loading torque is changed during the running of the motor, the exciting current
of the coupling can be reguated automatically by the speed negative feedback system of the
controller so as to keep the output speed free of any variation basically.
There is a State Standard for the technical specifications of YCT series motor. Besides, the
overall & installation dimensions, driving motor, other easy-wearing parts of the motor in YTC
series are the same even if they are made by different domestic manufacturers, featuring high
exchangeability.
□ YTC 系列電機的特點：
1． 無失控區；
2． 調速范圍廣，速度調節平穩；
3． 具有速度負反饋?zhàn)詣?dòng)調節系統，轉速變化率??；
4． 起動力矩大，起動平穩；
5． 結構簡單、可靠、使用維護方便；
6． 控制功率小，并能實現多種方式控制。
□ Features of YCT series motor:
a. Free of out-of-control zone;
2
b. Wide adjustable speed range and stable speed dajustment;
c. With sped negarive feedback automatic regulation system, small speed variation ratio;
d. Large start torque and smooth start performance;
e. Simple construction, reliable and easy for operation and maintenance;
f. Small control power, multi-way control.
□ 應用范圍：
YCT 系列電磁調速電動機，可用于油漆流水線、裝配流水線的傳輸帶、注塑機、印染
機、印刷機、水泵、鼓風機、回轉爐、拉線機、卷紙機、卷板機、壓延機、空調設備、輸送
設備等。
□ Applications:
The YCT series clectromagnetic adjustable speed motor can be used in painting lines,
transmission belts of assembly lines, plastic injecting machines, dyeing machines, printing
machines, pumps, blowers rotary furnaces, wire drawing machines, calendars, airconditioning
equipments, transfer equipments, etc.
□ 型號說明 Model instruction
Y C T — 4 A(B)
交流異步A.C. asynchronous 拖動電機功率檔
電磁 Electromagnetic Power grade of driving motor
調速 Adjustable speed 拖動電機極數
中心高 Center height Pole number of driving motor
□ 訂貨須知
1、用戶選用于本系列電機時，應使選用電機的額定轉矩大于或等于負載轉矩。
2、訂購時須說明產品型號，標準功率，調速范圍，是否需要控制器，測速發電機為何
種等。
例：YCT160－4B，3KW.1250~125r/min 單機運行，不需附控制器，中頻測速發電機。
又例：YCT250-4A,18.5KW.1320~132r/min 四臺齊速運行，脈沖測速發電機。
3、如需要特殊型式或特殊規格的YCT 系列電機，請先于聯系，根據具體情況可以另行
設計，試制。
□ Ordering information
1) It is suggested that the user should select the YCT series motor. The rated torque of which
should be larger than or equal to the load torque.
2) All the informations about the model, nominal power. Adjustable speed range. Whether the
controller required. Variety of tachogenerator. etc, must be clearly indicated in the contract.
For example: YCT160-4B, 3KW. 1250-125r/min, single-motor running without controller,
medium-frequency tachogenerator.
Another example: YCT250-4A, 18.5KW. 1320-132r/min, 4-motor running, pulse
tachogenerator.
3) Special types and specifications of YCT series motors can be designed and arranged in a
trial production upon negotiation.
3
□ 主要技術數據 Main Technical Data 表1 Table 1
軸承
Bearing
型號
Model
標稱
功率
Nominal
power
kw
額定
轉矩
Rated
torque
Nm
調速
范圍
Adjustable
apeed range
r/min
轉速變化率
Speed
variation ratio
%
離合器
Coupling
拖動電機
Driving motor
噪音
Noise
[dB(A)]
（≤）
重量
Weight
Kg
YCT112-4A 0.55 3.6
205Z1
204Z1
180205Z1
180204Z1
75 55
YCT112-4B 0.75 4.9 205Z1 204Z1
180205Z1
180204Z1
75 60
YCT132-4A 1.1 7.1
306Z1
205Z1
180306Z1
180205Z1
75 85
YCT132-4B 1.5 9.7 306Z1 205Z1
180306Z1
180205Z1
78 90
YCT160-4A 2.2 14 307Z1 206Z1
180308Z1
180206Z1
78 120
YCT160-4B 3 19 307Z1 206Z1
180308Z1
180206Z1
82 125
YCT180-4A 4 25 307Z1 306Z1
180308Z1
180306Z1
82 162
YCT200-4A 5.5 35
309Z1
308Z1
310Z1
180308Z1
82 220
YCT200-4B 7.5 477 309Z1 308Z1
310Z1
180308Z1
86 230
YCT225-4A 11 69
310Z1
309Z1
311Z1 309Z1 86 465
YCT225-4B 15 94
1250~125
310Z1 309Z1
311Z1 309Z1 90 475
YCT250-4A 18.5 115
312Z1
311Z1
312Z1 311Z1 90 490
YCT250-4B 22 137 312Z1 311Z1
312Z1 311Z1 90 510
YCT280-4A 30 189 313Z1 312Z1
313Z1 312Z1 97 750
YCT315-4A 37 232 314Z1 313Z1
315Z1 313Z1 97 800
YCT315-4B 45 282
1320~132
314Z1 313Z1
315Z1
313Z1 99 800
YCT355-4A 55 344 318Z1 317Z1
318Z1
317Z1 99 1900
YCT355-4B 75 469
1320~440 318Z1
317Z1
318Z1 317Z1 103 1980
YCT355-4C 90 564 1320~600
≤2.5
318Z1
317Z1
318Z1 317Z1 103 2080
4
□ 外形安裝尺寸 Overall Installation dimensions (mm)
表2 Table2
安裝尺寸
Installation dimensiona (mm)
外形尺寸
型號 Overall dimensions (mm)
Model
A WB WC D E F G H K AB AD HD HA AA L
YCT112-
4A
4B 190 210 40 19 40 6 15.5 112 12 273 150 275 16 40 515
YCT132-
4A
4B 216 241 40 24 50 8 20 132 12 305 158 330 20 55
540
565
YCT160-
4A
4B 254 267 45 28 60 8 24 160 15 340 185 375 20 65
615
660
YCT180-4A 279 305 45 28 60 8 24 180 15 375 188 430 30 70 680
YCT200-
4A
4B 318 356 50 38 80 10 33 200 19 420 230 485 30 80
800
840
YCT225-
4A
4B 356 406 56 42 110 12 37 225 19 485 255 530 30 94
950
1000
YCT250-
4A
4B 406 457 63 48 110 14 42.5 250 24 540 285 570 35 105
1130
1170
YCT280-4A 457 508 70 55 110 16 49 280 24 580 320 655 40 110 1260
YCT315-
4A
4B 508 560 89 60 140 18 53 315 28 630 350 720 45 130
1400
1425
YCT355-4A 610 630 108 65 140 18 58 355 28 780 410 765 55 130 1660
YCT355-4B 610 630 108 75 140 20 67.5 355 28 780 410 765 55 130 1660
YCT355-4C 610 630 108 75 140 20 67.5 355 28 780 410 765 55 130 1660
