| 材質 | GCr15軸承鋼 |
|---|---|

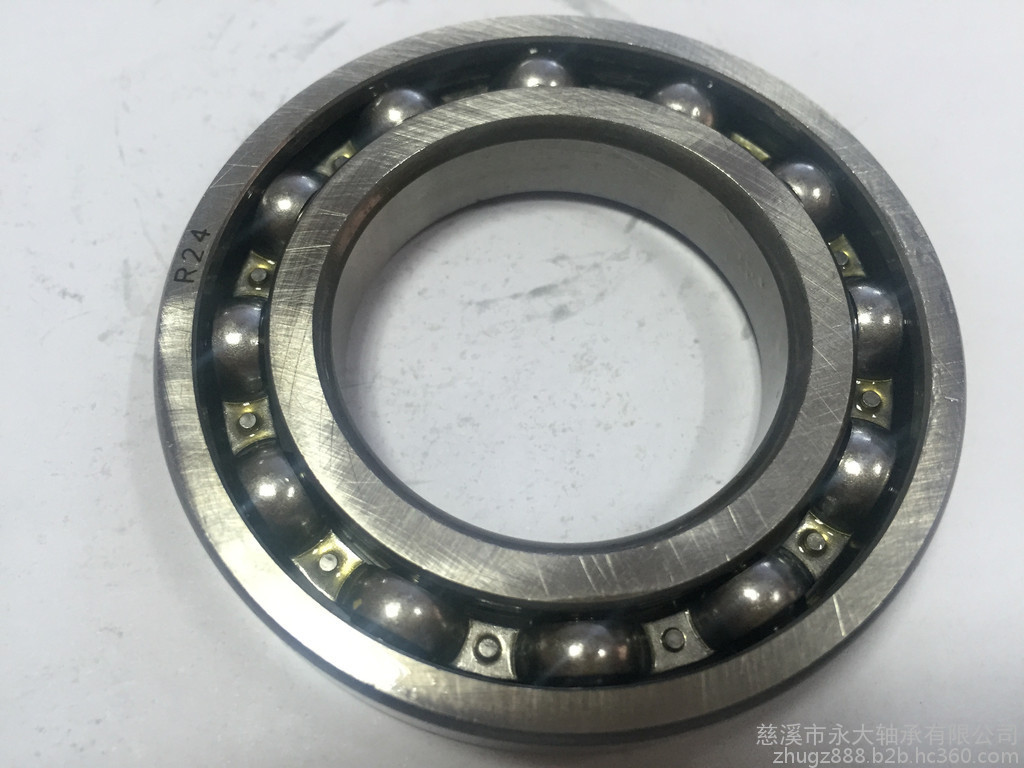

| 規格 | R24 |
| 厚度 | 11.1125 |
| 內徑 | 19.05 |
| 外徑 | 41.275 |
| 用途 | 工程機械 |
| 重量 | 0.0625 |
| 滾動體類型 | 球 |
| 是否標準件 | 標準件 |
| 樣品或現貨 | 現貨 |
| 是否進口 | 非進口 |
| 體積規格 | 中小型 |
| 滾動體列數 | 單列 |
| 滾道類型 | 深溝滾道 |
| 使用特性 | 高溫 |
| 品牌 | ZPL |
本公司供應ZPL GCr15軸承鋼 R14開式及閉式軸承 22.225x47.625x9.525 0.097，質量保證，歡迎咨詢洽談。
| 軸承型號Bearing Numbers | 外型尺寸Boundary dimensions | 額定負荷Load rating N | 參考重量（閉式）Weight kg | ||||||||||||
| 內徑 | 外徑 | 寬度Width B | 倒角 | 動負荷Cr | 靜負荷Cor | ||||||||||
| ZPL Bearing | Bearing | d | D | 開式 OPEN | 閉式Closed | rsmin | |||||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | ||||||
| R2 | 3.175 | 0.125 | 9.525 | 0.375 | 3.969 | 0.1563 | 3.969 | 0.1563 | 0.3 | 0.012 | 640 | 226 | 0.0014 | ||
| R2A | 3.175 | 0.125 | 12.7 | 0.5 | 4.366 | 0.1719 | 4.366 | 0.1719 | 0.3 | 0.012 | 640 | 226 | 0.0033 | ||
| R3 | 4.762 | 0.1875 | 12.7 | 0.5 | 3.969 | 0.1563 | 4.978 | 0.1960 | 0.3 | 0.012 | 1310 | 485 | 0.0029 | ||
| R4 | 6.35 | 0.25 | 15.875 | 0.625 | 4.978 | 0.1960 | 4.978 | 0.1960 | 0.3 | 0.012 | 1470 | 600 | 0.0045 | ||
| R4A | KLNJ-1/4 | EE2 | 6.35 | 0.25 | 19.05 | 0.75 | 5.556 | 0.2187 | 7.144 | 0.2813 | 0.4 | 0.016 | 2410 | 911 | 0.0100 |
| R6 | KLNJ-3/8 | EE3 | 9.525 | 0.375 | 22.225 | 0.875 | 5.556 | 0.2187 | 7.144 | 0.2813 | 0.4 | 0.016 | 3350 | 1410 | 0.0117 |
| R8 | KLNJ-1/2 | EE4 | 12.7 | 0.5 | 28.575 | 1.125 | 6.35 | 0.25 | 7.938 | 0.3125 | 0.4 | 0.016 | 5110 | 2380 | 0.0210 |
| R10 | KLNJ-5/8 | EE5 | 15.875 | 0.625 | 34.925 | 1.375 | 7.144 | 0.2813 | 8.731 | 0.3437 | 0.8 | 0.032 | 6000 | 3250 | 0.0367 |
| R12 | KLNJ-3/4 | EE6 | 19.05 | 0.75 | 41.275 | 1.625 | 7.938 | 0.3125 | 11.112 | 0.4375 | 0.8 | 0.032 | 8370 | 4520 | 0.0630 |
| Z9504C | 19.06 | 0.7504 | 45.225 | 1.7805 | 7.938 | 0.3125 | 15.494 | 0.61 | 0.8 | 0.032 | 8370 | 4520 | 0.0780 | ||
| R14 | KLNJ-7/8 | EE8 | 22.225 | 0.875 | 47.625 | 1.875 | 9.525 | 0.375 | 12.7 | 0.5 | 0.8 | 0.032 | 10060 | 5920 | 0.0970 |
| R16 | KLNJ-1 | EE9 | 25.4 | 1 | 50.8 | 2 | 9.525 | 0.375 | 12.7 | 0.5 | 0.8 | 0.032 | 10060 | 5920 | 0.1070 |
| R18 | KLNJ-1-1/8 | EE10 | 28.575 | 1.125 | 53.975 | 2.125 | 9.525 | 0.375 | 12.7 | 0.5 | 0.8 | 0.032 | 11900 | 7460 | 0.1220 |
| R20 | KLNJ-1-1/4 | EE11 | 31.75 | 1.25 | 57.15 | 2.25 | 9.525 | 0.375 | 12.7 | 0.5 | 0.8 | 0.032 | 13230 | 8300 | 0.1250 |
| R22 | KLNJ-1-3/8 | EE12 | 34.925 | 1.375 | 63.5 | 2.5 | 11.112 | 0.4375 | 14.288 | 0.5625 | 0.8 | 0.032 | 16210 | 10420 | 0.165 |
| R24 | KLNJ-1-1/2 | EE13 | 38.1 | 1.5 | 66.675 | 2.625 | 11.112 | 0.4375 | 14.288 | 0.5625 | 0.8 | 0.032 | 17030 | 11700 | 0.1720 |
| R114 | 3.175 | 0.125 | 6.35 | 0.25 | 2.779 | 0.1094 | 2.779 | 0.1094 | 0.08 | 0.003 | 294 | 98 | 0.0003 | ||
| R115 | 3.969 | 0.1563 | 7.938 | 0.3125 | 2.779 | 0.1094 | 3.175 | 0.125 | 0.08 | 0.003 | 392 | 147 | 0.00055 | ||
| R156 | 4.762 | 0.1875 | 7.938 | 0.3125 | 2.779 | 0.1094 | 3.175 | 0.125 | 0.08 | 0.003 | 392 | 147 | 0.00045 | ||
| R166 | 4.762 | 0.1875 | 9.525 | 0.375 | 3.175 | 0.125 | 3.175 | 0.125 | 0.08 | 0.003 | 715 | 274 | 0.0008 | ||
| R168 | 6.35 | 0.25 | 9.525 | 0.375 | 3.175 | 0.125 | 3.175 | 0.125 | 0.08 | 0.003 | 421 | 205 | 0.0006 | ||
| R186 | 4.762 | 0.1875 | 12.7 | 0.5 | 2.779 | 0.1094 | 3.969 | 0.1563 | 0.13 | 0.005 | 1313 | 490 | 0.0020 | ||
| R188 | 6.35 | 0.25 | 12.7 | 0.5 | 3.175 | 0.125 | 4.762 | 0.1875 | 0.13 | 0.005 | 833 | 372 | 0.0020 | ||
| R1810 | 7.938 | 0.3125 | 12.7 | 0.5 | 3.969 | 0.1563 | 3.969 | 0.1563 | 0.13 | 0.005 | 882 | 421 | 0.0017 | ||
