| 加工定制 | 是 |
|---|---|
| 適用范圍 | 雙吸泵 |

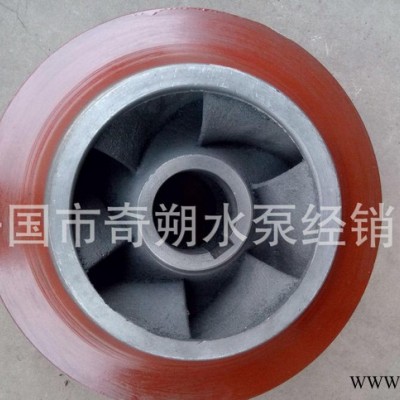

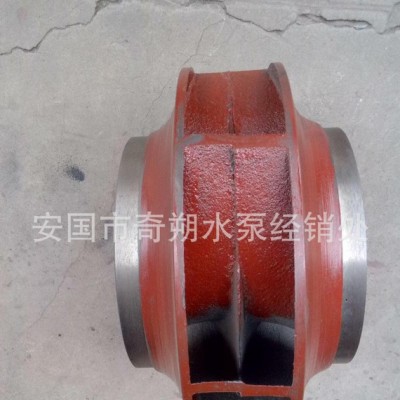

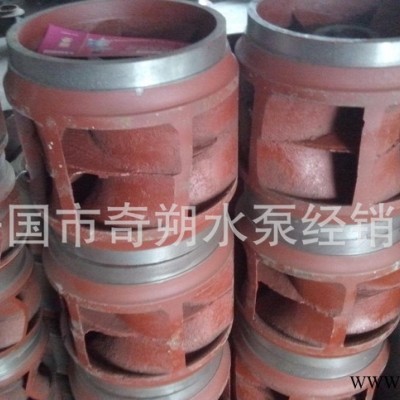

| 規格 | 葉輪 |
| 品牌 | 奇朔 |
| 型號 | 350S-16 14SH-28 |
S SH型泵系單級雙吸中開式離心泵。供輸送清水及物理化學性質類似于清水的液體之用。液體的溫度不超過80攝氏度.適用于工廠.礦山.城市給排水.電站.農田排灌和各種水利工程。泵的過流件材質為鑄鐵。軸封為鉛粉油浸石棉繩。自電機方向看，泵轉向?yàn)轫槙r(shí)針旋轉。S是改革后的產品。結構緊湊，剛性好，標準化程度高
| 型號 | 流量(m3/h) | 揚程 | 轉速(r/min) | 功率(%) | 效率率(%) | 汽蝕余量 | 備注(老型號) |
| 150S-78 | 160 | 78 | 2950 | 55 | 74 | 4.5 | 6sh-6 |
| 150S-78A | 140 | 60 | 2950 | 45 | 72 | 4.5 | 6sh-6A |
| 150S-50 | 160 | 50 | 2950 | 37 | 79 | 4.5 | 6sh-9 |
| 150S-50A | 140 | 39 | 2950 | 30 | 75 | 4.5 | 6sh-9A |
| 150S-50B | 133 | 36 | 2950 | 22 | 70 | 4.5 | 6sh-9B |
| 200S-95 | 280 | 95 | 2950 | 110 | 77 | 5 | 8sh-6 |
| 200S-95A | 268 | 87 | 2950 | 90 | 75 | 5 | 8sh-6A |
| 200S-95B | 245 | 72 | 2950 | 75 | 74 | 5 | 8sh-6B |
| 200S-63 | 280 | 63 | 2950 | 75 | 81 | 5 | 8sh-9 |
| 200S-63A | 270 | 46 | 2950 | 55 | 77 | 5 | 8sh-9A |
| 200S-42 | 280 | 42 | 2950 | 45 | 85 | 5 | 8sh-13 |
| 200S-42A | 270 | 46 | 2950 | 37 | 80 | 5 | 8sh-13A |
| 250S-65 | 485 | 42 | 1450 | 132 | 79 | 3.8 | 10sh-6 |
| 250S-65A | 468 | 36 | 1450 | 90 | 77 | 3.8 | 10sh-6A |
| 250S-39 | 485 | 65 | 1450 | 75 | 83 | 3.8 | 10sh-9 |
| 250S-39A | 468 | 54 | 1450 | 55 | 78 | 3.8 | 10sh-9A |
| 250S-24 | 486 | 39 | 1450 | 45 | 86 | 3.8 | 10sh-13 |
| 250S-24A | 414 | 30 | 1450 | 37 | 83 | 3.8 | 10sh-13A |
| 250S-14 | 485 | 24 | 1450 | 30 | 85 | 3.8 | 10sh-19 |
| 250S-14A | 432 | 20 | 1450 | 22 | 81 | 3.8 | 10sh-19A |
| 300S-90 | 790 | 14 | 1450 | 315 | 80 | 4.8 | 12sh-6 |
| 300S-90A | 756 | 11 | 1450 | 280 | 74 | 4.8 | 12sh-6A |
| 300S-90B | 720 | 90 | 1450 | 220 | 73 | 4.8 | 12sh-6B |
| 300S-58 | 790 | 78 | 1450 | 180 | 84 | 4.8 | 12sh-9 |
| 300S-58A | 720 | 67 | 1450 | 155 | 82 | 4.8 | 12sh-9A |
| 300S-58B | 685 | 58 | 1450 | 132 | 80 | 4.8 | 12sh-9B |
| 300S-32 | 790 | 50 | 1450 | 90 | 87 | 4.8 | 12sh-13 |
| 300S-32A | 700 | 43 | 1450 | 75 | 84 | 4.8 | 12sh-13A |
| 300S-19 | 790 | 32 | 1450 | 55 | 87 | 4.8 | 12sh-19 |
| 300S-19A | 700 | 26 | 1450 | 45 | 82 | 4.8 | 12sh-19A |
| 300S-12 | 790 | 19 | 1450 | 37 | 83 | 4.8 | 12sh-28 |
| 300S-12A | 700 | 15 | 1450 | 30 | 79 | 4.8 | 12sh-28A |
| 350S-125 | 1260 | 125 | 1450 | 680 | 81 | 5.5 | 14sh-6 |
| 350S-125A | 1181 | 112 | 1450 | 570 | 78 | 5.5 | 14sh-6A |
| 350S-125B | 1098 | 96 | 1450 | 500 | 77 | 5.5 | 14sh-6B |
| 350S-75 | 1260 | 75 | 1450 | 360 | 85 | 5.5 | 14sh-9 |
| 350S-75A | 1170 | 65 | 1450 | 280 | 84 | 5.5 | 14sh-9A |
| 350S-75B | 1080 | 55 | 1450 | 220 | 82 | 5.5 | 14sh-9B |
| 350S-44 | 1260 | 44 | 1450 | 220 | 87 | 5.5 | 14sh-13 |
| 350S-44A | 1116 | 36 | 1450 | 160 | 84 | 5.5 | 14sh-13A |
| 350S-26 | 1260 | 26 | 1450 | 110 | 88 | 5.5 | 14sh-19 |
| 350S-26A | 1130 | 21 | 1450 | 90 | 83 | 5.5 | 14sh-19A |
| 350S-16 | 1260 | 16 | 1450 | 75 | 86 | 5.5 | 14sh-28 |
| 350S-16A | 1130 | 12 | 1450 | 55 | 81 | 5.5 | 14sh-28A |
| 500S-98 | 2020 | 98 | 970 | 780 | 79.5 | 6 | 20sh-6 |
| 500S-98A | 1872 | 83 | 970 | 650 | 78.5 | 6 | 20sh-6A |
| 500S-98B | 1746 | 74 | 970 | 550 | 78 | 6 | 20sh-6B |
| 500S-59 | 2020 | 59 | 970 | 460 | 83 | 6 | 20sh-9 |
| 500S-59A | 1872 | 49 | 970 | 380 | 75 | 6 | 20sh-9A |
| 500S-59B | 1746 | 40 | 970 | 310 | 74 | 6 | 20sh-9B |
| 500S-35 | 2020 | 35 | 970 | 280 | 88 | 6 | 20sh-13 |
| 500S-35A | 1746 | 27 | 970 | 215 | 85 | 6 | 20sh-13A |
| 500S-22 | 2020 | 22 | 970 | 185 | 84 | 6 | 20sh-19 |
| 500S-22A | 1746 | 17 | 970 | 130 | 80 | 6 | 20sh-19A |
| 500S-13 | 2020 | 13 | 970 | 115 | 83 | 6 | 20sh-28 |
| 600S-75 | 3170 | 75 | 970 | 850 | 85 | 8.7 | 24sh-9 |
| 600S-75A | 2880 | 62 | 970 | 780 | 80 | 7.5 | 24sh-9A |
| 600S-47 | 3170 | 47 | 970 | 550 | 88 | 7.5 | 24sh-13 |
| 600S-32 | 3170 | 32 | 970 | 380 | 88 | 7.5 | 24sh-19 |
| 600S-32A | 2880 | 27 | 970 | 280 | 86 | 7.5 | 24sh-19A |
| 600S-32B | 2680 | 22 | 970 | 240 | 84 | 7.5 | 24sh-19B |
| 600S-22 | 3170 | 22 | 970 | 250 | 88 | 7 | 24sh-28 |
| 600S-22A | 2880 | 18 | 970 | 185 | 87 | 7 | 24sh-28A |
| 800S-32 | 5500 | 32 | 970 | 700 | 84 | 6.5 | 32sh-19 |
| 800S-32A | 5310 | 29 | 970 | 570 | 84 | 6.5 | 32sh-19A |
