| 產地 | 浙江 |
|---|---|
| 功率 | 13 |
| 速度 | 5000-10000pcs/h |
| 外形尺寸 | L6700mm*W1820mm*H2000mm |
| 品牌 | 創達 |
| 型號 | G-1080A |
| 加工定制 | 是 |
| 質量認證 | CE |

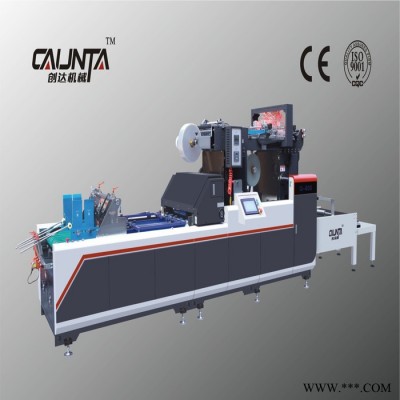

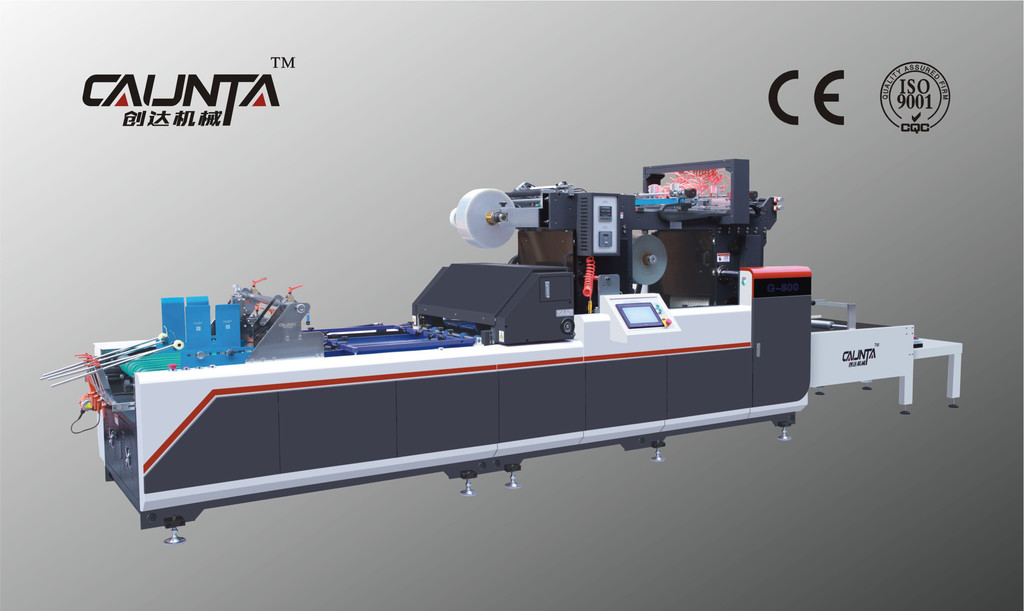

G-1080A全自動高速數控貼窗機
G-1080A Full-automatic High-speed Digital-control Window Patching Machine
機器介紹；
G-1080A全自動高速數控貼窗機為紙張類局部貼膜專用機器，該機為整體鋼板結構，橫刀裁切薄膜，整機配備6臺伺服電機和七臺步進電機，全數字化控制，運行中各項參數微調，100組客戶訂單文件記憶保存，重復產品或補單只需調取數據一鍵調節，調機速度僅需10分鐘，選裝在線診斷控制功能，該機可對厚度為0.05-0.25mm的PVC,BOPET,PE,OPP,CPP薄膜（膠片）進行雙壓線和雙切口，自動輸送紙張，自動涂膠，自動裁切，自動貼膜，運行速度10000pcs/h，各工位多傳感器檢測，運行狀態實時監控，異常降速警報。
G-1080A Full-automatic High-speed Digital-control Window Patching Machine has been the special machine for the paper partial film patching. This machine is in integral steel plate structure. It adopts transverse knife for the film cutting. The whole machine is equipped with 6 servo motors and 7 stepping motors with the full-digital control. All parameters can be fine-tuned during operation. Memory storage of 100 sets of customer order files enables it one key to retrieve the order when meets the repeated products or replacement order. The fastest adjustment speed is only 10 minutes. The online diagnostic control function can be an additional option. This machine can realize the double creasing and double cutting on PVC,BOPET,PE,OPP,CPP film with the thickness of 0.05-0.25mm. Automatic paper feeding, gluing, cutting and film patching can all be realized in this machine with the highest running speed of 10000pcs/h. It is also equipped with multi-sensor detection of each station, real-time monitoring of running state and abnormal speed reduction alarm functions.
主要技術參數（Specifications）
參數parameter G-1080A 最大紙張 Max.Paper Size W1080XL800mm 最小紙張 Min.Paper Size 110X110mm 紙張克數Paper Weight 牛皮紙Kraft Paper：150-1200g/㎡ 白卡紙White Cardboard：230-1200g/㎡ 瓦楞紙Corrugated Paper：≤3mm 薄膜最大 Max.Film Size W 400XL430mm 薄膜最小Min.Film Size W30XL65mm 薄膜最大放卷直徑 Max. Film Unwinding Diameter 450mm 薄膜厚度Film Thickness CPE/PE:0.1-0.3mm PVC:0.08-0.3mm APET/PET:0.06-0.3mm 貼膜精度Film Precision ±0.5mm 最大速度Maximum Speed 10000pcs/h 伺服電機數量 Quantity of Servo Motor 6臺Sets 步進電機數量 Quantity of Stepping Motor 7臺 Sets 驅動部位：V型沖壓模具X向自動調節2臺，Y向自動調節4臺，自動收紙1臺 Driving Parts： Two V-shaped stamping moulds with X-direction automatic adjustment，4 sets of Y-direction automatic adjustment , Automatic paper receiving 1 set V型沖孔模具數量 Quantity of V-shaped Punching Mould 4套Kits 薄膜壓線輪數量 Quantity of Film Creasing Wheels 2套Kits 電 源 Power 380/415V 50/60Hz 13KW 機器尺寸Overall Dimension L670×W182×200cm 整機重量Overall Weight 3200kg
型 號Model

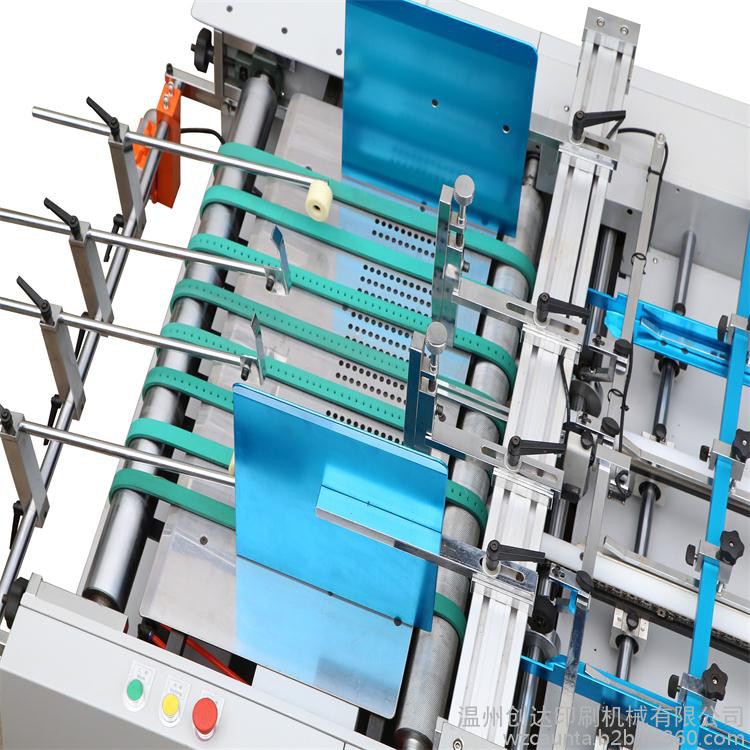

輸紙部；
輸紙皮帶采用日本倪塔品牌，解決了UV印刷紙張輸紙不順暢的問題，底部皮帶加真空吸附輸紙，伺服電機驅動，可多種輸紙模式切換。
Paper Feeding:
The Paper Feeding Belt of the machine adopts the Japanese Brand Nita which well solves the problem of unsmooth UV printing paper feeding. The paper feeding is realized through bottom belt with the vacuum absorption function. Driven by Servo Motor enables it to switch among multiple paper feeding modes.

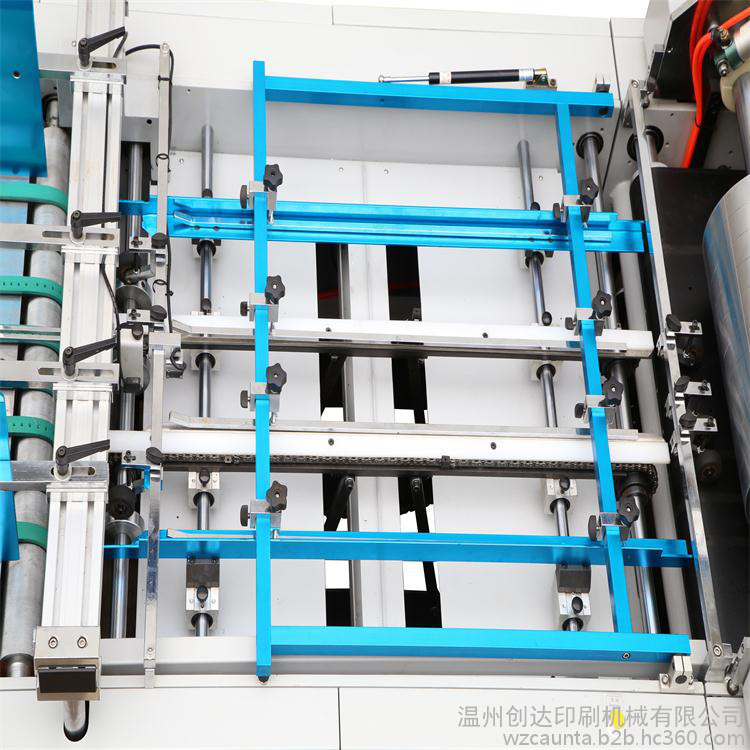

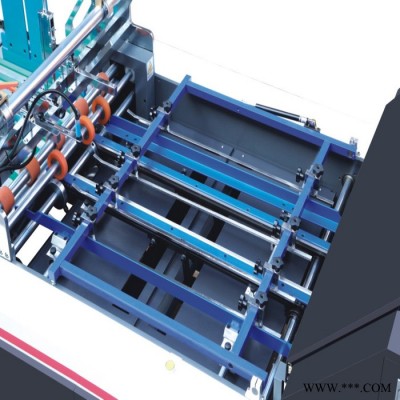

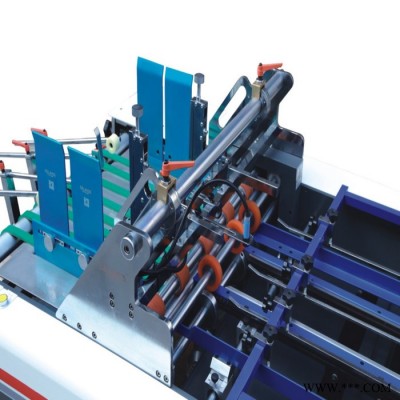

軌道校正部；
軌道帶自鎖直線軸承自由滑動取代了傳統絲桿傳動手搖調節慢的缺點，高分子尼龍材料軌道條 低噪音，耐磨損，校正定位銷采用伺服電機單獨驅動。
Correction of Paper Feeding Track:
The track with self-locking linear bearing is free to slide. It takes the place of traditional slow
screw-driving hand-shaking regulation. The chains orbits which contain high polymer nylon
material are in high wear resistance and low noise .Correction pin adopts servo motor
separately driving.

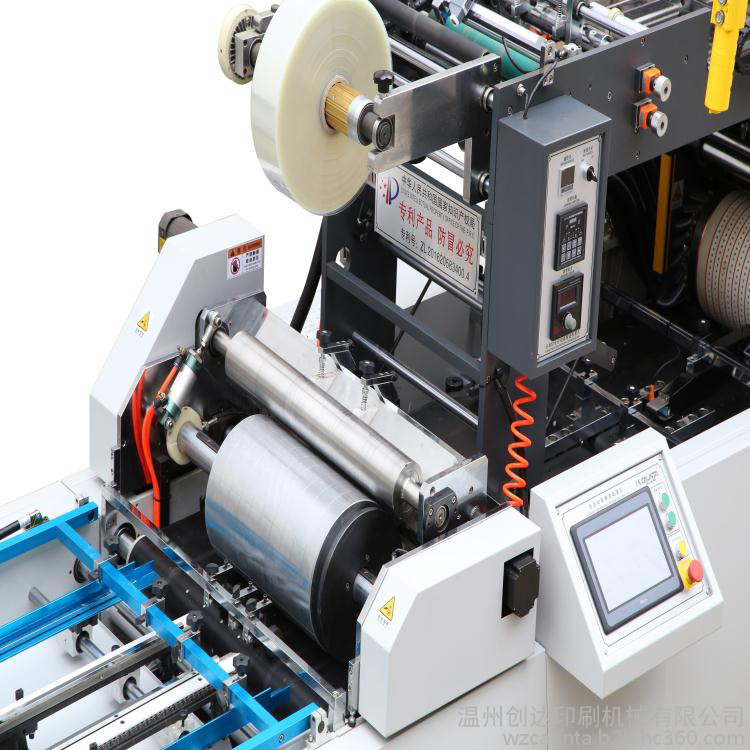

涂膠部；
涂膠滾筒304不銹鋼制作，易清洗，耐腐蝕，印膠模型滾筒橫向與縱向分別由伺服電機驅動，可不停機直接進行雙向調節,涂膠部具備空張?zhí)鸸δ埽苊饽z水接觸到皮帶，減少因?yàn)榭諒埗l繁停機清洗皮帶的麻煩。
Gluing:
The gluing roller is made from 304 Stainless steel material which is in high corrosion resistance
and is easy to clean. Transverse and longitudinal gluing model roller are driven by servo motor
which can realize the dual-directional regulation directly without stopping. The gluing part is
equipped with the automatic lifting function. It avoids the glue touching the belt which
reduces the trouble of frequently machine stop for cleaning because of the lack for paper
problem.

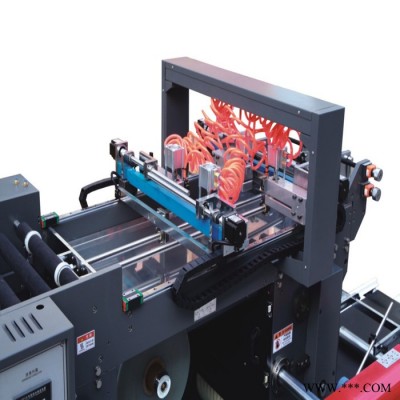

薄膜沖壓部；

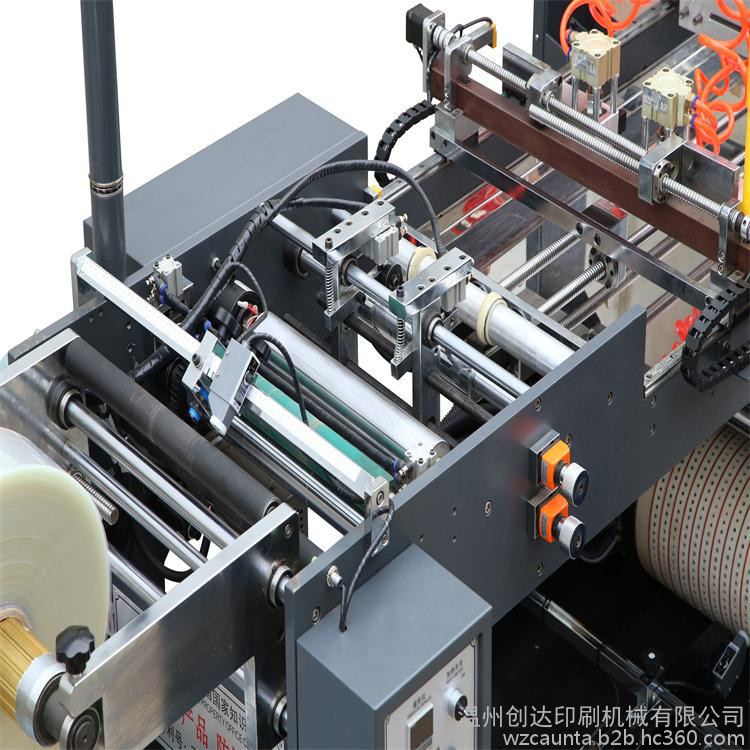

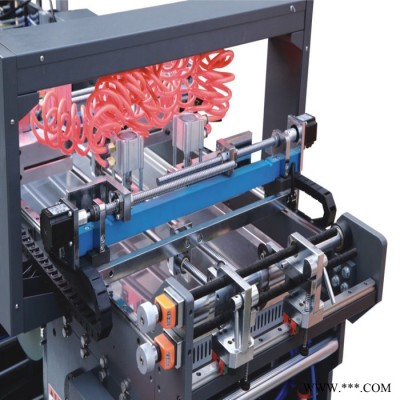

薄膜放卷帶磁粉張力和自動糾偏校正，壓線輪壓力氣動調節，標配四套沖壓模具，沖壓位置8軸雙向數控自動跟蹤，參數寫入微調。
Film Punching:
Film unwinding is equipped with various functions such as magnetic powder tension and
automatic correction, pressing line pressure pneumatic control, punching 8 axis
dual-directional numerical control auto tracking, parameter read-in minor adjustment etc. It is
also equipped with 4 sets punching moulds.

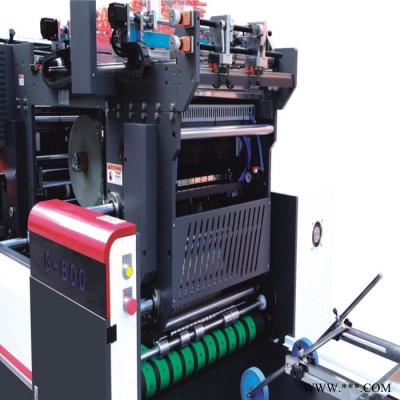

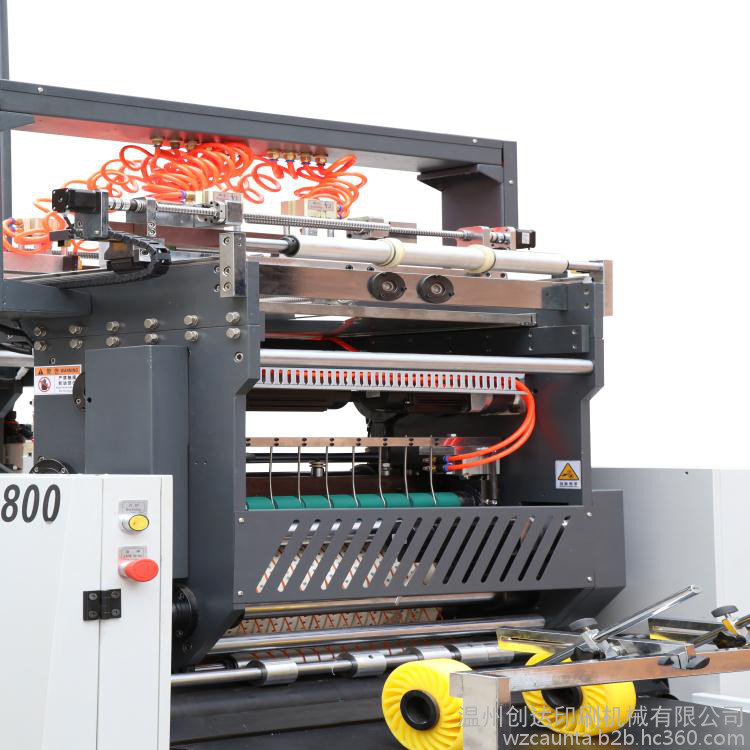

貼合部；
橫刀裁切由伺服電機驅動，裁切角度準確控制，相比傳統氣缸驅動，有噪音低，速度快，角度可控的優點。滾筒吸附連續式粘貼相比傳統間歇式粘貼具有貼合速度快，對薄膜要求低等優點，貼合滾筒由伺服電機單獨驅動，在機器運行的情況下可自由調節薄膜貼合位置。
Film Pasting:
Transverse cutting knife is driven by servo motor with high cutting angle precision control.
Compared with traditional cylinder driving .It has got the advantages of low noise, high speed
with the angle able to control etc. Roller absorption continuous pasting is in higher speed and
requires less towards film compared with traditional intermittent pasting way. The pasting
roller is separately driven by servo motor and can freely adjust the film pasting position when
machine is running.

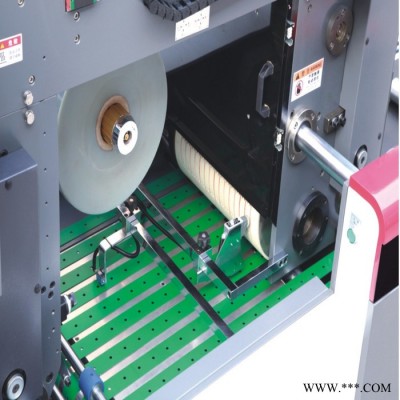

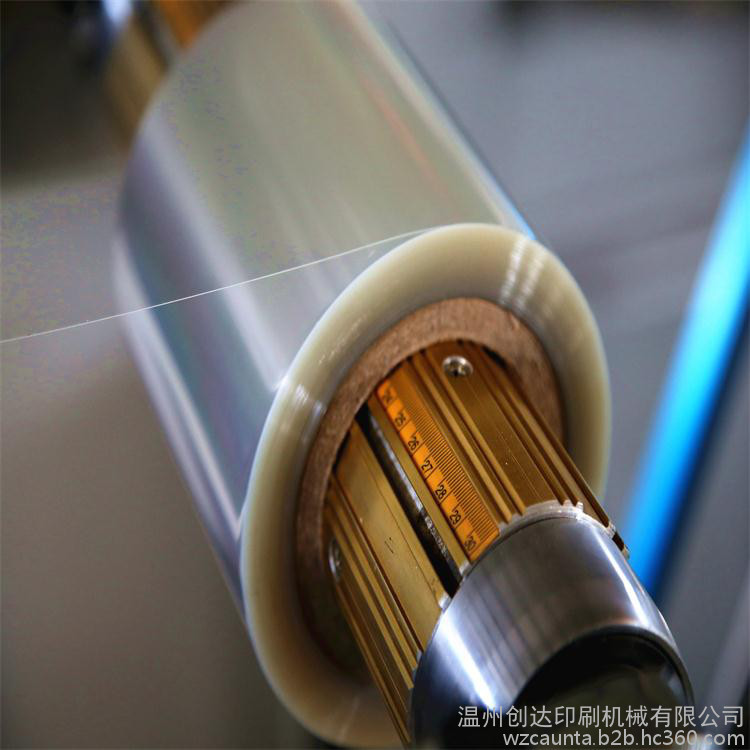

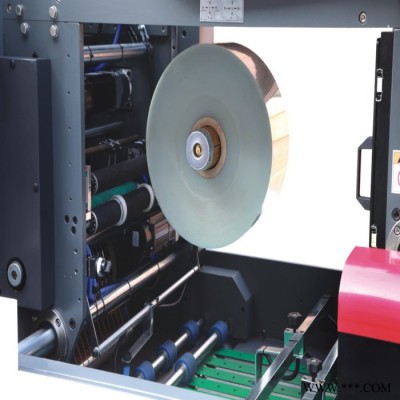

薄膜放卷部；
氣脹軸裝膜使更換薄膜更快捷，光電糾偏解決了薄膜卷材分切不平整的問題，放卷糾偏精度±0.2mm，電磁張力控制系統讓薄膜放料張力恒定在理想的狀態使薄膜壓痕以及沖孔精度更高。
Film Unwinding:
It adopts air shaft to install the film enables it to faster replace the film. The photoelectric correction well solves the problem of cutting unevenness for the film coiled material. The precision of unwinding correction is ±0.2mm.The Electromagnetic tension control system keeps the film feeding tension in constant at ideal state which makes the film creasing and punching in higher precision.
