| 品牌 | 客戶需求 |
|---|---|
| 型號 | BXM(D) |
樂清市柳市萬渝電器廠
品牌 | 型號 |
客戶需求 | BXM(D) |
聯系人：譚孝衛先生
聯系電話：18657775883
騰訊QQ：290590097

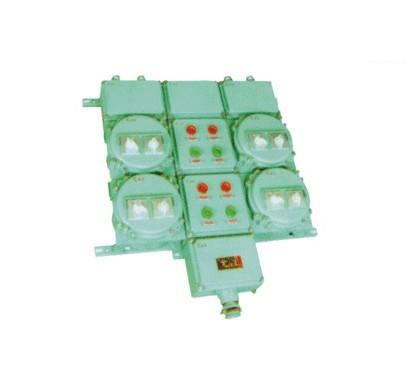

BXM(D)63防爆動力配電箱
產品特點 Featrues
■本產品復合型結構,開關箱采用隔爆型結構,母線箱及出線 ◆ This product is of combined structure,switch box adopts The structrue
箱采用增安型結構. of flame-proof,busbar and outlet compartment are of safety increased type.
■鑄鋁合金外殼,內裝高分析斷小型斷路器,具有過載短路保 ◆ MCB with high breaking capacity is mounted inside the diedcastedAI-alloy shell
護功能并可根據要求增加漏電保護等功能. Which has the function of protecting of electrical leakage is available as required.
■采用模塊結構,各種回路可以自由選擇組合. ◆ Moulded structure,free combination for each circuit.
■有特殊要求可特制. ◆ Can be made specially to special requirement.
■鋼管或電纜布線均可. ◆ Suitable for both steelpipe and cable wiring.
■符合GB3836-2000,IEC60079標準要求. ◆ Suitable for GB3836-2000,IEC60079 standard request.
主要技術參數 Main te chnical parameters
額定電 主回路額 主回路總 支路額 管螺紋 Thread 電纜外徑 防護等級
型號 壓(V) 定電流(A) 支路數 開關數(臺) 電流(A) 防爆標志 進線 出線 進線 出線 Protection
Type Rated Rated current Branch Switch No. Branch Ex-mark Inlet Outlet Inlet Outlet
voltage of main circuit number of main circuit current
--------------------------------------------------------------------------------
BXM（D）-4 4 1
BXM（D）-6 6 3
BXM（D）-8 380 63 8 5
BXM（D）-10 10 10
BXM（D）-12 ~ 12 15 G11/4" G1/2" Φ12 Φ8 IP55
BXM（D）-4K 4 20 Exde II CT6 ~ ~ ~ ~ *IP65
BXM（D）-6K 6 25 G3" G1'/2" Φ56 Φ 26
BXM（D）-8K 220 250 8 1 40
BXM（D）-10K 10 50
BXM（D）-12K 12 60
