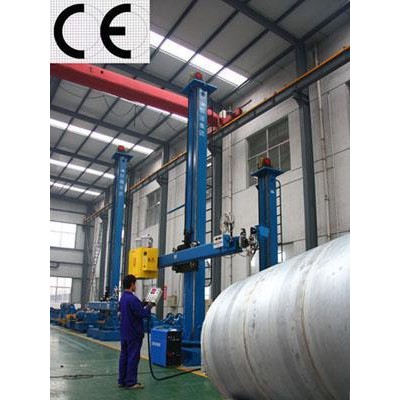

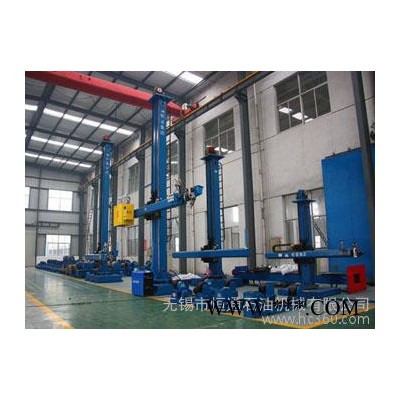

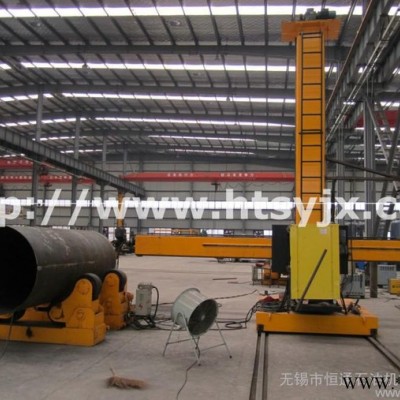

Welding manipulators(column and boom) are a kind of widely-used and high-automated auxiliary equipment in welding industry. Through the ratation of column and retraction of boom, welding manipulator meets welding requierments of cylinders with different sizes. Welding head is fixed at one end of manipulator to carry out automatic welding. This kind of welding manipulator could also be operated in match with welding rotator(turning roll) to carry out circumferential and longitudinal welding of inside and outside seam, which has got extensive application in bolier, Petrochemical, Shipbuilding and steel structure industries.

Structure : fixed type, fixed with rotation and movable type.

Both column and boom are cold-blended and go through annealing treatment.

There is anti-falling device to ensure the safety of boom lifting.

Boom retracting adopts VFD, being stable and reliable.

X-Y slide is fixed on one end of boom, which can be controlled by hand control panel.

Control roller bears eccentric shaft, which can decrease clearance between roller and rail.

Column rotation could be recognized by manual operation or electric drive.

Control unit includes: electric control board and hand control panel.

Optional: Trolley, Director chair or platform, dragchain, seam tracking and monitor system, and flux recovery system.

焊接操作機是一種應用廣泛、自動化程度高的一種焊接輔助設備，它通過橫臂的升降、伸縮和立柱的回轉，可滿足不同工件的焊接需要。本設備的橫臂前端需配備焊機，實現自動焊接。該設備還可以與焊接滾輪架組合成焊接中心，可實現圓筒形金屬結構件的內外環縫和縱縫的自動焊接，廣泛應用于鍋爐、石化、造船、汽車、鋼結構等行業。本焊接中心結構先進、功能齊全、控制靈活、操作方便，是提高焊接質量和實現焊接自動化的理想設備。

①焊接操作機結構形式分為：固定式，固定帶回轉式，移動帶回轉式。

②立柱和橫臂均采用冷彎焊接結構，整體折邊成型，并經退火處理后精加工，具有較好剛性及強度。

③為安全起見，橫臂升降裝置配有意外防墜落裝置，采用棘條棘爪結構。

④橫臂伸縮采用變頻調速，穩定可靠。

⑤橫臂前端配有十字微調結構，可通過手控盒調節。

⑥八只導向輪均采用偏心輪結構形式，在安裝調試時，可以調節偏心軸從而調節對導軌的松緊，調整結束后，通過雙級螺母鎖緊。

⑦立柱回轉分為電控箱和手工盒兩部分。

⑧可選項：移動臺車，載人座椅和平臺，拖鏈走線，焊縫跟蹤和監視系統，焊劑輸送回收系統。
