| 產地 | 全國 |
|---|---|
| 分類 | 庫存電工電氣產品 |
| 品牌 | 施耐德 |
| 型號 | BCH1802N12A1C |

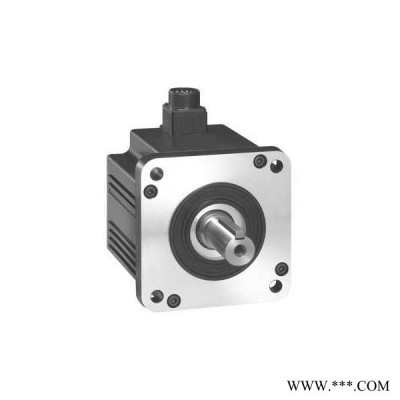

【施耐德（Schneider） BCH1802N12A1C】施耐德伺服電機 BCH1802N12A1C
適用范圍Lexium 23 Plus產品類型Servo motor產品名BCH
補充信息
Maximum mechanical speed3000 rpm額定電源電壓 [Us]220 V相數三相Continuous stall current16.1 A持續功率3 kW軸端KeyedSecond shaftWithout second shaft end軸直徑35 mm軸長度73 mmKey width10 mm反饋類型20 bits incremental encoder制動報閘無安裝方式Asian standard flangeMotor flange size180 mmTorque constant0.89 N.m/ABack emf constant32 V/krpm 20 °C轉子慣量54.95 kg.cm?Stator resistance0.104 Ohm 20 °CStator inductance2.76 mH 20 °CStator electrical time constant26.39 ms 20 °C**大徑向力 Fr1470 N**大軸向力 Fa490 N剎車起動功率20.4 W冷卻方式自然通風長度202.1 mmNumber of motor stacks2Centring collar diameter114.3 mmCentring collar depth4 mmNumber of mounting holes4Mounting holes diameter13.5 mmCircle diameter of the mounting holes200 mmDistance shaft shoulder-flange73 mm產品重量18.5 kg
環境
IP 保護等級IP40運行溫度0...40 °C
