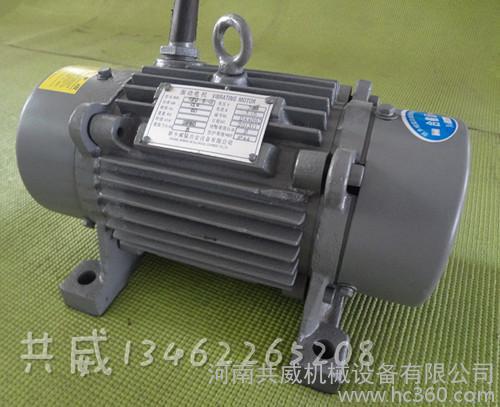

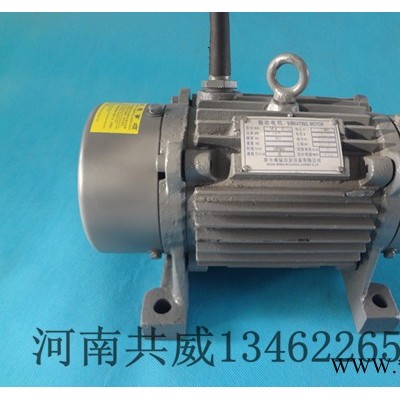

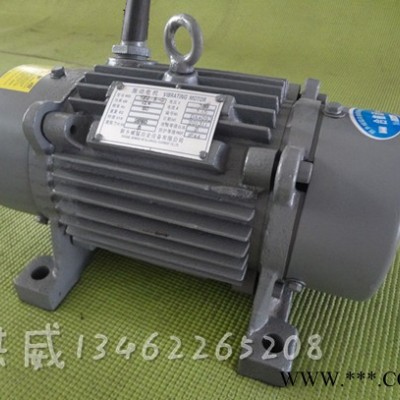

| 產品類型 | 三相異步電動機 |
|---|---|
| 極數 | 2極 |
| 頻率 | 50 |
| 品牌 | 共威 |
| 型號 | YZO-8-2 |
YZO振動電機技術參數表（臥式）
| 序號 | 型號 | 激振力(KN)
| 功率
| 電流
| 主要結構尺寸 | 重量
| |||||||||||
| L | H | A | B | C | D | E | F | h1 | Ф | h | M | ||||||
| 1 | YZO-1.5-2 | 1.5 | 0.15 | 0.38 | 300 | 203 | 150 | 210 | 124 | 180 | 100 | 70 | 82 | 98 | 30 | 10 | 19 |
| 2 | YZO-2.5-2 | 2.5 | 0.25 | 0.58 | 328 | 198 | 178 | 220 | 150 | 180 | 122 | 70 | 82 | 110 | 25 | 12 | 24 |
| 3 | YZO-5-2 | 5 | 0.4 | 1.15 | 362 | 216 | 208 | 270 | 176 | 220 | 142 | 90 | 91 | 143 | 35 | 14 | 37 |
| 4 | YZO-8-2 | 8 | 0.75 | 1.84 | 427 | 301 | 247 | 292 | 180 | 236 | 121 | 160 | 142 | 173 | 30 | 18 | 53 |
| 5 | YZO-16-2 | 16 | 1.5 | 3.48 | 470 | 301 | 267 | 292 | 200 | 236 | 141 | 160 | 142 | 173 | 30 | 18 | 75 |
| 6 | YZO-2.5-4 | 2.5 | 0.25 | 0.58 | 328 | 198 | 178 | 220 | 150 | 180 | 122 | 70 | 82 | 143 | 25 | 12 | 27 |
| 7 | YZO-5-4 | 5 | 0.4 | 1.15 | 388 | 216 | 208 | 270 | 176 | 220 | 142 | 90 | 91 | 173 | 35 | 14 | 43 |
| 8 | YZO-8-4 | 8 | 0.75 | 1.84 | 440 | 301 | 247 | 292 | 180 | 236 | 121 | 160 | 142 | 213 | 30 | 18 | 61 |
| 9 | YZO-10-4 | 10 | 1.0 | 2.3 | 440 | 301 | 247 | 292 | 180 | 236 | 121 | 160 | 142 | 213 | 30 | 18 | 75 |
| 10 | YZO-16-4 | 16 | 1.5 | 3.48 | 538 | 364 | 298 | 330 | 224 | 270 | 172 | 120 | 163 | 303 | 30 | 20.5 | 107 |
| 11 | YZO-17-4 | 17 | 0.75 | 1.8 | 450 | 300 | 240 | 330 | 150 | 260 | 90 | 170 | 135 | 260 | 25 | 27 | 78 |
| 12 | YZO-20-4 | 20 | 2.0 | 4.1 | 550 | 370 | 298 | 330 | 224 | 270 | 172 | 120 | 163 | 303 | 30 | 20 | 135 |
| 13 | YZO-30-4 | 30 | 2.5 | 5.75 | 560 | 425 | 306 | 400 | 184 | 326 | 100 | 186 | 195 | 376 | 35 | 30 | 168 |
| 14 | YZO-50-4 | 50 | 3.7 | 7.4 | 560 | 425 | 306 | 400 | 184 | 326 | 100 | 186 | 195 | 376 | 35 | 30 | 180 |
| 15 | YZO-75-4 | 75 | 5.5 | 11 | 670 | 512 | 400 | 540 | 248 | 440 | 170 | 240 | 240 | 455 | 37 | 36 | 350 |
| 16 | YZO-5-6 | 5 | 0.4 | 1.15 | 388 | 216 | 216 | 270 | 176 | 220 | 142 | 90 | 91 | 173 | 35 | 14 | 48 |
| 17 | YZO-8-6 | 8 | 0.75 | 1.84 | 490 | 301 | 247 | 292 | 180 | 236 | 121 | 160 | 142 | 213 | 30 | 18 | 65 |
| 18 | YZO-10-6 | 10 | 1.0 | 2.3 | 493 | 301 | 247 | 292 | 180 | 236 | 121 | 160 | 142 | 213 | 30 | 18 | 65 |
| 19 | YZO-12-6 | 12 | 1.0 | 2.1 | 450 | 300 | 240 | 330 | 150 | 260 | 90 | 170 | 135 | 260 | 25 | 27 | 82 |
| 20 | YZO-20-6 | 20 | 2.0 | 4.1 | 550 | 370 | 298 | 330 | 224 | 270 | 172 | 120 | 163 | 303 | 30 | 20 | 142 |
| 21 | YZO-30-6 | 30 | 2.5 | 5.75 | 560 | 425 | 306 | 400 | 184 | 326 | 100 | 186 | 195 | 376 | 35 | 30 | 180 |
| 22 | YZO-50-6 | 50 | 3.7 | 7.4 | 560 | 425 | 300 | 400 | 184 | 326 | 94 | 186 | 195 | 376 | 35 | 30 | 200 |
| 23 | YZO-75-6 | 75 | 5.5 | 11 | 670 | 512 | 400 | 540 | 248 | 440 | 170 | 240 | 240 | 455 | 37 | 36 | 370 |
