| 動力形式 | 噴涂機 |
|---|---|
| 功率 | 5500（w） |
| 規格 | 2040*820*950mm |
| 空氣消耗量 | 0 |
| 噴射寬度 | 600mm |
| 噴嘴直徑 | 8.10.12.14.17 |
| 適用范圍 | 建筑室內外裝修 |
| 壓力比 | 30bar |
| 種類 | 空氣噴涂機 |
| 重量 | 275（Kg） |
| 品牌 | 溫工 |
| 型號 | JP70-P |
| 加工定制 | 是 |
| 最大輸出壓力 | 0（N/S） |
| 空載排量 | 0 |
| 最佳噴射距離 | 20m |

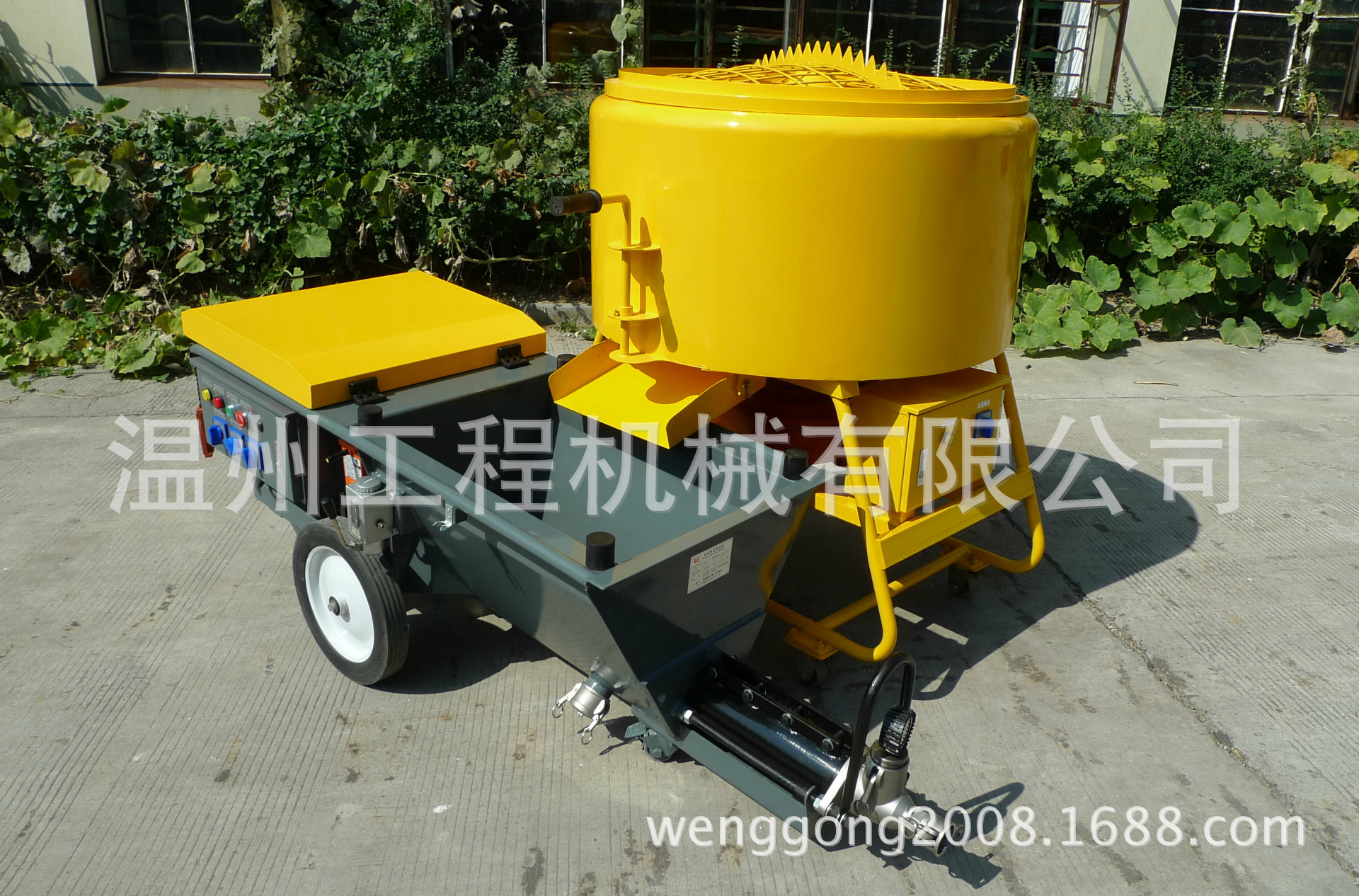

JP70-P是我公司引進意大利技術制造的一款多功能為一體的大排量砂漿噴涂機械，具備泵送、粘結、噴涂聯合作業功能；適宜各種不同特性，不同用途的預拌干混砂漿施工；模塊式結構，拆卸簡單，移動方便，使用容易；具備選擇控制調節功能，實現不同的壓力、排量與噴涂速度；設有壓力保護裝置，滿足遠程控制操作需要。
JP70-P is multi-functional large output plastering machine introduced Italian technology. It has the combined functions of pumping, bonding and plastering. It's suitable for different characteristics dry ready-mixed mortar construction. With modular structure, it's easy to move, dissemble and operate. With variable speed regulation, can achieve different pressure, output and plastering speed. Sets the pressure controlling protection mechanism, and meets the remote control working requirement.
標準配置 Standard equipment
泵設備 Pump equipment Wenggong D70
防震壓力計總成 Shockproof pressure gage assembly
變速馬達 Variable-speed motor
氣泵集成 Air pump integration (配置 JP70-P Equipment)
振動篩 Vibrating screen
整體式控制箱 Integral control box
帶有氣源支持噴槍Spraying gun with air support (配噴嘴 with spraying nozzle, 配置 JP70-P Equipment )
輸漿管 Delivery hose GB/T3683 32-1-W.P.9Mpa或
GB/T3683 38-1-W.P.7Mpa Length:10m
帶快速連接器空氣管 Air tube with fast connector ID: ￠13 Length:10m (配置 JP70-P Equipment )
手動油泵 Manual oil pump Y6
工具箱Tool box
操作說明書 Operating instruction
JP70-P型砂漿噴涂機技術參數
Technical parameters of JP70 Mortar plastering machine
型號Model JP70-P
電源Supply power 400V 50Hz
電機功率Motor power 4/5.5kw
壓縮機功率Compressor power 0.9kw
**大顆粒尺寸Maximum grain size 8mm
排量Output 50L/min
輸送壓力Delivery pressure 30bar
水平輸送距離Horizontal delivery distance 0-60m
垂直輸送距離Vertical delivery distance 0-30m
送料斗容量Hopper volume 120L
重量Net weight 275mm
外型尺寸Dimension (L×W×H) 2040*820*950mm
注：以上數據只作參考，因選用砂漿的理化性能差別，其產生的各項數值也不相同。
Note: The above figures are only for reference, due to differences in physical and chemical properties of selected mortar, its each value is different accordingly.
