| 電機功率 | 1.1 |
|---|---|
| 動力類型 | 電動 |
| 規格 | 500 |
| 生產能力 | 0.124 |
| 適用物料 | 礦石，泥漿，冶金 |
| 應用領域 | 礦山，研究院 |
| 轉速范圍 | 筒里 |
| 作業方式 | 機械 |
| 攪拌機類型 | 礦用圓筒攪拌機 |
| 物料類型 | 礦石，冶金 |
| 布局形式 | 固定，移動 |
| 攪拌方式 | 葉輪攪拌 |
| 每次處理量范圍 | 0.124 |
| 攪拌鼓形狀 | 圓形 |
| 裝置方式 | 電動 |
| 品牌 | 斯特爾 |
| 型號 | 各種 |
| 料桶容量 | 0.124 |

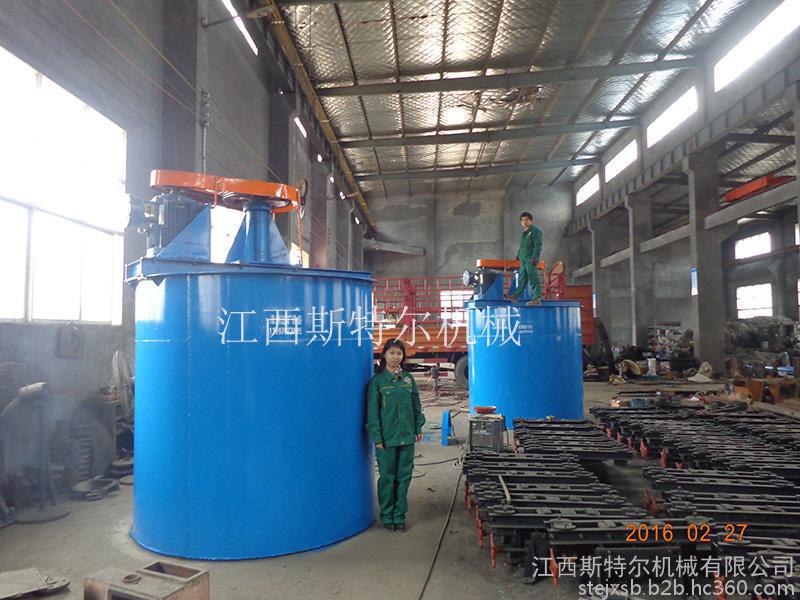

礦用攪拌槽（桶）Agitatingtank
該設備適于浮選、重選、磁選等對濃度不大于35%及固體成分粒度小于1毫米的礦漿進行攪拌，也可用于浮選藥劑和其它非金屬礦物的攪拌，使礦粒懸浮并于藥劑充分接觸，混勻，為選別作業創造條件。本產品由原地礦部唯一指定企業生產，執行行業標準。
該系列攪拌槽有以下幾種：礦漿攪拌槽、提升式攪拌槽、高濃度攪拌槽、高效攪拌槽、藥劑攪拌槽。
The device is suitable forflotation, re-election, magnetic separation, etc. right concentration of notmore than 35% and solid components of the slurry particle size of less than 1mm to stir, but also can be used for flotation agents and other non-metallicminerals, mixing, so that mine suspended particles and in full access to thePharmacy, mixing, in order to create conditions for sorting operations. Thisproduct is the only designated former Ministry of Geology and Mineralproduction, the implementation of industry standards
This series of stirred tank are thefollowing: Agitating tank 、Lifting agitating tank、High concentration agitation tank、 Hing efficiency agitation tank、Specifcatications of shemicalagitation tank 聯系人：溫會燕 電話：13970115002 QQ:2393778966
| 型號Model | 單位 Uite | 500 | 750 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| 槽體直徑Diameter tank | mm | 500 | 750 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| 槽體高度Heighe | mm | 500 | 750 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| 槽體容積Volume tank | m3
| 0.124 | 0.25 | 0.58 | 1.15 | 2.2 | 4.4 | 11.2 | 19.1 | 46 |
| 葉輪直徑Impeller Diameter | mm | 150 | 240 | 240 | 310 | 400 | 550 | 630 | 700 | 1000 |
| 葉輪轉速Impeller speed | r/min | 1000 | 530 | 530 | 492 | 320 | 230 | 230 | 210 | 121.6 |
| 功率Power | kw | 1.1 | 1.5 | 1.5 | 2.2 | 3 | 5.5 | 7.5 | 7.5 | 30 |
| 重量Weighe | kg | 260 | 320 | 480 | 908 | 1280 | 1760 | 2700 | 5190 | 12510 |
