| 加工定制 | 否 |
|---|---|
| 材質 | 橡膠 |
| 規格 | EPIN德國JACOB橡膠密封件 |
| 連接型式 | EPIN德國JACOB橡膠密封件 |
| 適用范圍 | EPIN德國JACOB橡膠密封件 |
| 品牌 | EPIN德國JACOB橡膠密封件 |
| 型號 | EPIN德國JACOB橡膠密封件 |

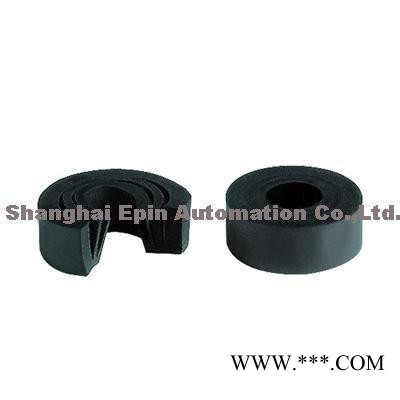

EPIN德國JACOB橡膠密封件（JACOB Sealing ring 3xx/xx NEO）
Jacob Sealing insert WJ-DM/D xx/zXz(多孔橡膠件)
>> Configuration
Sealing insert：Evoprene TPE, M & PG;
>> Properties
sealing insert for the installation of several single cablesTemperature range：-30°C/+100°CComment: assembled in PERFECT series: 50.6xx M//zXz, 50.6xx Pazzzz/zXz> >Features
|
| 溫度范圍 |
| -30°C | |
| +100°C |
Size | H | Da | Di | Pkg. | Part No. |
xx | mm | mm | mm | Piece |
|
09/12 | 5,5 | 13,3 | 5x7,5x10 | lose | 309 UG |
11/16 | 6 | 16,5 | 7,5x10x12,5 | lose | 311 UG |
13/20 | 6 | 18,3 | 7,5x10x12,5 | lose | 313 UG |
16/25 | 7 | 20,4 | 7,5x10x12,5x15 | lose | 316 UG |
21/25 | 8 | 25,9 | 10x13x16x19 | lose | 321 UG |
29/32 | 9,5 | 34,7 | 18x21x24x27 | lose | 329 UG |
36/50 | 12 | 44,7 | 24x27x30x33 | lose | 336 UG |
42/50 | 14 | 51,7 | 30x33x36x39 | lose | 342 UG-30 |
48/63 | 14 | 56,9 | 36x39x42x45 | lose | 348 UG-36 |
|
| 溫度范圍 |
| -55°C | |
| +175°C |
Size | H | Da | Di | Pkg. | Part No. |
xx | mm | mm | mm | Piece |
|
09/12 | 5,5 | 13,3 | 5x7,5x10 | lose | 309 USI |
11/16 | 6 | 16,5 | 7,5x10x12,5 | lose | 311 USI |
13/20 | 6 | 18,3 | 7,5x10x12,5 | lose | 313 USI |
16/25 | 7 | 20,4 | 7,5x10x12,5x15 | lose | 316 USI |
21/25 | 8 | 25,9 | 10x13x16x19 | lose | 321 USI |
|
| 溫度范圍 |
| -30°C | |
| +100°C |
Size | H | Da | Di | Pkg. | Part No. |
xx | mm | mm | mm | Piece |
|
M16 | 5,5 | 13,8 | 5x7,5x10 | lose | M316UG |
M20 | 6 | 17,8 | 7,5x10x12,5 | lose | M320UG |
M25 | 7,5 | 22,8 | 9x12x15x18 | lose | M325UG |
M32 | 9 | 29,8 | 14x17x20x23 | lose | M332UG |
|
| 溫度范圍 |
| -30°C | |
| +100°C |
Size | H | Da | Di | Pkg. | Part No. |
xx | mm | mm | mm | Piece |
|
09/12 | 5,5 | 13,3 | 5x7,5x10 | lose | 309 UG |
11/16 | 6 | 16,5 | 7,5x10x12,5 | lose | 311 UG |
13/20 | 6 | 18,3 | 7,5x10x12,5 | lose | 313 UG |
16/25 | 7 | 20,4 | 7,5x10x12,5x15 | lose | 316 UG |
21/25 | 8 | 25,9 | 10x13x16x19 | lose | 321 UG |
29/32 | 9,5 | 34,7 | 18x21x24x27 | lose | 329 UG |
36/50 | 12 | 44,7 | 24x27x30x33 | lose | 336 UG |
42/50 | 14 | 51,7 | 30x33x36x39 | lose | 342 UG-30 |
48/63 | 14 | 56,9 | 36x39x42x45 | lose | 348 UG-36 |
