| 應用范圍 | PCB |
|---|---|
| 種類 | 轉接頭 |
| 接口類型 | RJ45(水晶頭) |
| 支持卡數 | 二合一 |
| 讀卡類型 | ic |
| 形狀 | 矩形 |
| 制作工藝 | 冷壓 |
| 特性 | 質量優越，外觀優美 |
| 接觸件材質 | 磷青銅鍍金 |
| 絕緣體材質 | ABS |
| 芯數 | 8 |
| 針數 | 8 |
| 線長 | 50（mm） |
| 產地 | 東莞 |
| 產品認證 | ISO9001 |
| 額定電流 | 1.5 |
| 額定電壓 | 125 |
| 工作環境 | -40+80 |
| 適用范圍 | 網絡連接 |
| 品牌 | YL |
| 型號 | 8P8C |
| 加工定制 | 是 |

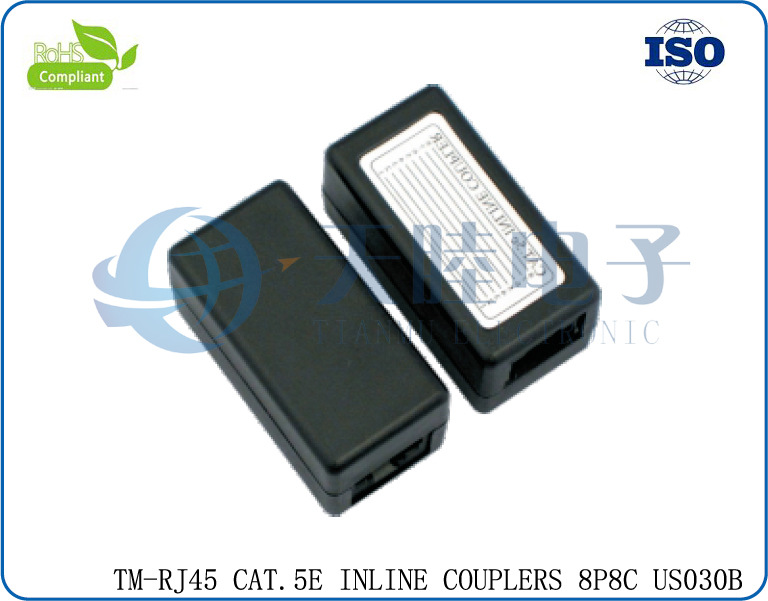

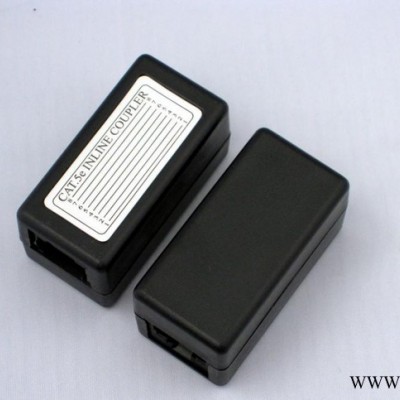

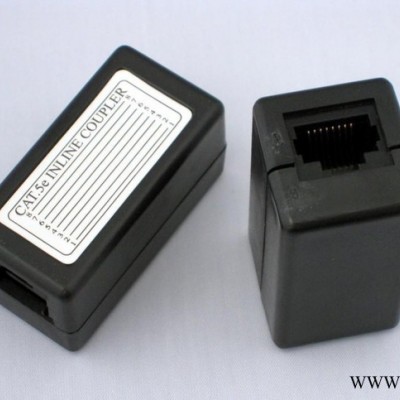

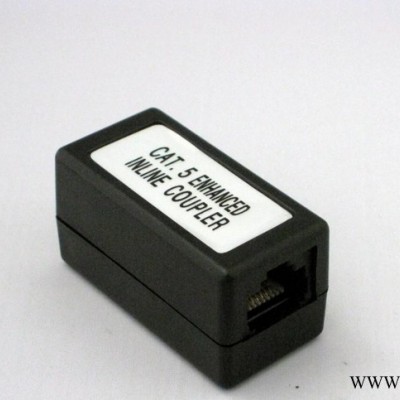

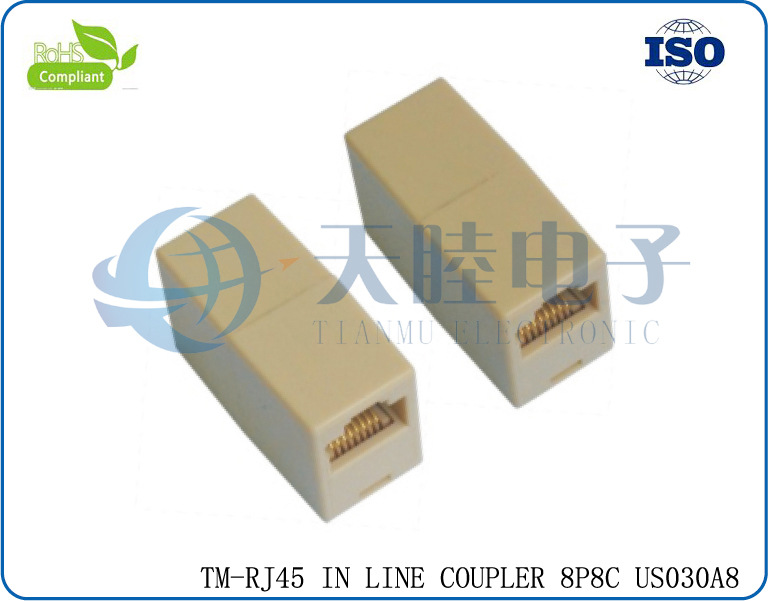

CAT 5E接線盒 8P8C 規格:47X25.2X23.5 用線路板連接。
MATERIAL
1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBT、 NYLON
2. HOUSING COLOR : BLACK OR OTHERS
3. CONTACT MATERIAL : PHOSPHOR BRONZE φ0.46mm
4. PLATING: GOLD PLATING OVER NICKEL.GOLD PLATING
THICKNESS 1.5u"/3u"/6u"/15u"/30u"/50u"
5. SHIELD : 0.20 THICKNESS BRASS WITH NICKEL PLATED
SPECIFICATIONS
ELECTRICAL
1. VOLTAGE RATING: 125 VAC RMS.
2. CURRENT RATING: 1.0 AMP
3. CONTACT RESISTANCE: 30 MILLIOHMS MAX.
4. INSULATION RESISTANCE : 500 MEGOHMS MIN @500 VDC
5. DIELECTRIC WITHSTANDING RESISTANCE: 1000 VAC RMS.50Hz 1MINUTE
MECHANICAL
1. DURABILITY : 750 CYCLES MIN
2. PCB RETENTION PRE-SOLDER: 1 LB MIN
ENVIRONMENTAL
1. STORAGE :-40℃~80℃
2. OPERATION: 0℃~70℃
