| 加工定制 | 是 |
|---|---|
| 應用范圍 | PCB |
| 種類 | 插頭/插座 |
| 接口類型 | USB |
| 支持卡數 | 單卡 |
| 讀卡類型 | CF |
| 形狀 | 矩形 |
| 制作工藝 | 冷壓 |
| 特性 | 防潮 |
| 工作頻率 | 低頻 |
| 接觸件材質 | C2680 |
| 絕緣體材質 | LCP |
| 芯數 | 4 |
| 針數 | 4 |
| 線長 | 0（mm） |
| 品牌 | connyao |

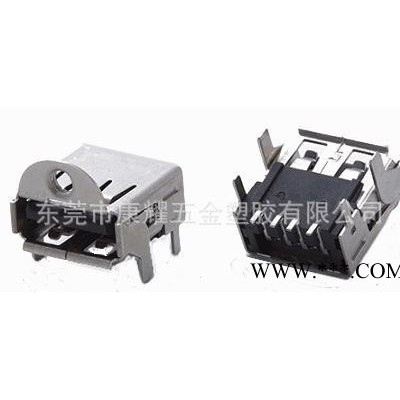

| 型號 | USB AF 90 SMT 有螺絲孔 |
NOTE:
1.MATERIAL:
1.1 INSULATOR:LCP UL 94V-0
1.2 CONTACT:Cu2680(T=0.25mm)
1.3 SHELL:Cu2680(T=0.30mm)
2.ELECTRICAL CHARACTERISTICS;
2.1 CONTACTRESISTANCE:30m? MAXIMUM
2.2 ConTACT CURRENT RATING:1.5A
2.3 DIELECTRIC WITHSTANDING VOLTAGE:500 V R.M.S.
2.4 INSULATION RESISTANCE 1000 MEGOHMS MIN
2.5 OPERATING TEMPEROTURE:-40%%DC ～ 85%%DC
3.MECHANICAL CHARACTERISTICS:
3.1 MATING FORCE:3.5kg MAX
3.2 UNMATING FORCE:1.0kg MIN
3.3 DURABILITY:MANDATORY:5,000 CYCLES
4.PLATING
4.1 TERMINAL:GOLD FLASH ALL OVER 50u" MIN
NICKEL AND 1u"MIN Tin ALL OVER 50u" MIN
NICKEL ON SOLDER AREA
4.2 SHELL:150u"MIN.NICEL OVER 20"MIN BRASS
