山東龍興集團是一家油漆涂料生產設備的大型集團化生產企業廠商，幾十年來我公司致力于系列機械與液壓升降的高速分散攪拌機、蝶式分散攪拌機、真空混合分散攪拌機、移動式混合分散乳化機及管線式分散乳化機，液體立臥式砂磨機及研磨機的開發設計與制造；龍興集團銷售部長原君禮現真誠為您推薦該款多功能高速分散攪拌機,關于多功能高速分散攪拌機技術信息如果不夠全面，歡迎您致電和微信（手機同號）咨詢！

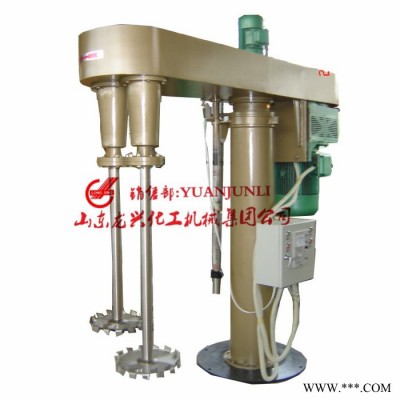

多功能高速分散攪拌機是用于液體、固體進行攪拌分散、溶解的高效設備，廣泛應用涂料、油墨、顏料、膠粘劑等化工產品，該機由液壓系統、主傳動、攪拌系統、導向機構、電控箱五部分組成，各部分結構緊湊、合理。分散盤型式：平盤鋸齒式、三義槳式、碟式等多種形式。設備安全可靠，操作維護簡單；生產連續性強，對物料可進行快速分散和溶解，分散效果好，生產效率高，安裝簡便，適合各種粘度的物料的分散攪拌。

多功能高速分散攪拌機采用無級調速：有電磁調速、變頻調速（如用于水性涂料）及防爆變頻調速（如用于油性涂料）等多種形式。無級調速功能可以根據不同的工藝階段需要調整不同的轉速，充分滿足了各工藝生產過程中不同的工藝要求；液壓、機械兩種升降形式；分散盤型式：平盤鋸齒式、碟式等其它形式；高速分散機通過分散盤上下劇齒的高速運轉，能夠?qū)ξ锪线M(jìn)行高速的強烈的剪切、撞擊、粉碎、分散，達到迅速混合、溶解、分散、細化的功能。針對不同物料的粘度及處理量有不同的功率及型號

高速分散機分單軸和雙軸高速分散機，克服了漏油通病，主要是針對不同粘度漿狀的液體原料進行粉碎、分散、乳化、混合，通過分散盤上下鋸齒的高速運轉的新型高效攪拌設備。高速分散攪拌機特點1、強勁的離心力將物料從徑向甩入定、轉子之間狹窄精密的間隙中，同時受到離心擠壓、液層摩擦、液力撞擊等綜合作用力，物料被初步分散。2、高速分散機的分散盤下方呈層流狀態，不同流速的漿料層互相擴散，起到分散作用。高速分散機具有360度回轉、無級調速、液壓升降等多種功能。可同時配置2-4只容器，液壓升降行程1000㎜、360度回轉功能能更好的滿足一機多用，能夠在很短的時間內從一個缸變換到另一個缸進行作業，極大的提高了工作效率，同時也降低了人工勞動強度，

3、分散機物料不斷地從徑向高速射出，在物料本身和容器壁的阻力下改變流向，與此同時在轉子區產生的上、下軸向抽吸力的作用下，又形成上、下兩股強烈的翻動紊流。物料經過數次循環**終完成分散過程。

1.Working principles:

The serrated circular blade of the dispersion plate rotates at a high speed so that materials flip up and down intensly in the container, and are impacted and sheared by the blade . As a result, the aggregate is destroyed to rapid dispersion,homogeneous mixing,and fast dissolution.

The machine stirs,dissolves and disperses the liquid or liquid - solid materials at a high speed,to complete the process of solid-liquid dispersion, wetting, depolymerization, and stabilization.

The speed can be arbitrarily adjusted (electromagnetic speed control and frequency speed control), and the speed range is 80-1250 rev / min. The medium speed is used to stir and dissolve, and the high speed to disperse into homogenization. The main motor is the speed control motor.

2.Uses:
It is widely used to produce coatings, dyes, ink, pigments, papermaking, cosmetics, food, resin, adhesive, lotion,
medicine, oil, pesticides, daily chemical and other fields.

3.Performance characteristics:
(1)It makes the slurry into a scroll-like circulation, and produces a strong vortex,then the particles on the surface of the slurry fall into the bottom of the vortex spirally.

(2)Turbulent areas are formed at a distance of 2.5-5mm to the edge of the dispersion plate, then the slurry and particles are sheared and shocked strongly;
(3)With the upper and the lower beams formed outside the region , the slurry is fully cycled and flipped;
(4)The laminar area is formed beneath the dispersion plate, and different rates of slurries spread mutually;
(5)The 270-degree rotation of the body can better meet the needs of multi-purposes .It can be transformed to work from one cylinder to another in a very short time, which greatly increases the work efficiency.

4.Category :
 There are mechanical lifts and hydraulic lifts. There are electromagnetic speed control motor, frequency control mortor (such as for water-based paint), and explosion-proof frequency control motor(such as for oil-based paint).

5.Notes:
Our company is able to undertake the non-standard customization according to the customer’s specific requirements.  (It needs the customers to provide the size of their drawings.)
