| 加工定制 | 是 |
|---|---|
| 適用范圍 | 水泵 |

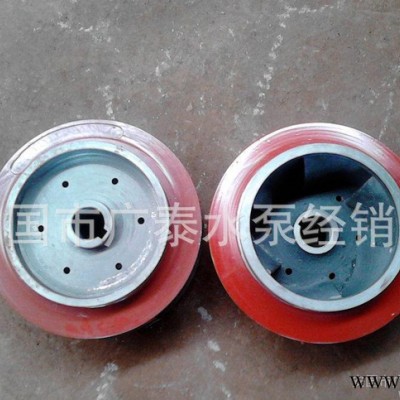

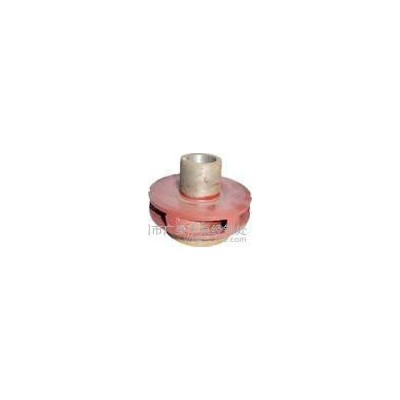

| 產品別名 | 離心泵葉輪 清水泵葉輪 |
| 品牌 | 廣泰泵業 |
| 型號 | IS200-150-250 |
產品概述：
IS型泵系單級單吸（軸向吸入）離心泵，適用于工業和城市給水、排水、亦可用于農業排灌。供輸出清水或物理及化學性質類似清水的IS型系列性能范圍（按設計點計）：
轉速：2900r/min和1450r/min
進口直徑：50—200mm
流量：6.3—400m
揚程：5－125m
型號意義：
IS 80 － 65 － 160 A
IS——單級單吸清水離心泵
80——吸入口直徑
65——排出口直徑
160——葉輪名義直徑
A——表示該泵更換了不同外徑的葉輪
技術參數：
型號 | 轉速n(r/min) | 流量(m3/h) | 揚程 | 電機功率 | 氣蝕余量 |
| 50-32-125 | 2900 | 12.5 | 20 | 2.2 | 2 |
| 50-32-160 | 2900 | 12.5 | 32 | 3 | 2 |
| 50-32-160A | 2900 | 10 | 20.8 | 2.2 | 2 |
| 50-32-200 | 2900 | 12.5 | 50 | 5.5 | 2 |
| 50-32-200B | 2900 | 10 | 32 | 3 | 2 |
| 50-32-250 | 2900 | 12.5 | 80 | 11 | 2 |
| 50-32-250A | 2900 | 11.6 | 68.5 | 7.5 | 2 |
| 50-32-250B | 2900 | 10.5 | 56 | 7.5 | 2 |
| 50-32-250C | 2900 | 10 | 51 | 7.5 | 2 |
| 65-50-125 | 2900 | 25 | 20 | 3 | 2 |
| 65-50-160 | 2900 | 25 | 32 | 5.5 | 2 |
| 65-50-160A | 2900 | 20 | 20.5 | 3 | 2 |
| 65-40-200 | 2900 | 25 | 50 | 7.5 | 2 |
| 65-40-200A | 2900 | 22 | 38.5 | 5.5 | 2 |
| 65-40-200B | 2900 | 20 | 32 | 5.5 | 2 |
| 65-40-250 | 2900 | 25 | 80 | 15 | 2 |
| 65-40-250A | 2900 | 22.5 | 64.5 | 11 | 2 |
| 65-40-250B | 2900 | 20 | 51 | 7.5 | 2 |
| 65-40-315 | 2900 | 25 | 125 | 30 | 2.5 |
| 65-40-315A | 2900 | 23.3 | 108 | 22 | 2.35 |
| 65-40-315C | 2900 | 20 | 80 | 15 | 2.5 |
| 80-65-125 | 2900 | 50 | 20 | 5.5 | 3 |
| 80-65-125A | 2900 | 42 | 14 | 3 | 3 |
| 80-65-160 | 2900 | 50 | 32 | 7.5 | 2.5 |
| 80-65-160A | 2900 | 40.5 | 21.2 | 5.5 | 2.5 |
| 80-50-200 | 2900 | 50 | 50 | 15 | 2.5 |
| 80-50-200A | 2900 | 45 | 45 | 11 | 2.5 |
| 80-50-200B | 2900 | 40 | 32 | 7.5 | 2.5 |
| 80-50-250 | 2900 | 50 | 80 | 22 | 2.5 |
| 80-50-250B | 2900 | 40 | 51 | 15 | 2.5 |
| 80-50-315 | 2900 | 50 | 125 | 37 | 2.5 |
| 80-50-315A | 2900 | 46.5 | 103 | 37 | 2.5 |
| 80-50-315B | 2900 | 43.2 | 93 | 30 | 2.5 |
| 80-50-315C | 2900 | 40 | 80 | 30 | 2.5 |
| 100-80-125 | 2900 | 100 | 20 | 11 | 4.5 |
| 100-80-125A | 2900 | 88 | 15 | 7.5 | 4.5 |
| 100-80-160 | 2900 | 100 | 32 | 15 | 4 |
| 100-80-160A | 2900 | 85 | 23 | 11 | 4 |
| 100-65-200 | 2900 | 100 | 50 | 22 | 3.6 |
| 100-65-200A | 2900 | 90 | 40 | 22 | 3.6 |
| 100-65-200B | 2900 | 82.5 | 34 | 15 | 3.6 |
| 100-65-250 | 2900 | 100 | 80 | 37 | 3.8 |
| 100-65-250A | 2900 | 80 | 64.5 | 30 | 3.8 |
| 100-65-250B | 2900 | 80 | 51 | 30 | 3.8 |
| 100-65-315 | 2900 | 100 | 125 | 75 | 3.6 |
| 100-65-315A | 2900 | 93.2 | 108 | 55 | 3.6 |
| 100-65-315B | 2900 | 86.35 | 93 | 45 | 3.6 |
| 100-65-315C | 2900 | 80 | 80 | 45 | 3.6 |
| 125-100-200 | 2900 | 200 | 50 | 45 | 4.5 |
| 125-100-200A | 2900 | 185 | 42.5 | 37 | 4.5 |
| 125-100-200B | 2900 | 160 | 40 | 30 | 4.5 |
| 125-100-200C | 2900 | 144 | 36 | 22 | 4.5 |
| 125-100-250 | 2900 | 200 | 80 | 75 | 4.2 |
| 125-100-250A | 2900 | 184 | 67.5 | 55 | 4.2 |
| 125-100-250B | 2900 | 168 | 56 | 55 | 4.2 |
| 125-100-250D | 1450 | 100 | 20 | 11 | 2.5 |
| 125-100-250A-D | 1450 | 92 | 16 | 11 | 2.5 |
| 125-100-315C | 2900 | 160 | 80 | 75 | 4.5 |
| 125-100-315-D | 1450 | 100 | 32 | 15 | 2.5 |
| 125-100-315A-D | 1450 | 92 | 27 | 15 | 2.5 |
| 125-100-315B-D | 1450 | 85 | 23 | 11 | 2.5 |
| 125-100-315C-D | 1450 | 80 | 20 | 11 | 2.5 |
| 125-100-400 | 1450 | 100 | 50 | 30 | 2.5 |
| 125-100-400A | 1450 | 90 | 45 | 22 | 2.5 |
| 125-100-400B | 1450 | 80 | 40 | 18.5 | 2.5 |
| 125-100-400C | 1450 | 72 | 36 | 15 | 2.5 |
| 150-125-250 | 1450 | 200 | 20 | 18.5 | 3 |
| 150-125-250A | 1450 | 180 | 16.5 | 18.5 | 3 |
| 150-125-250B | 1450 | 168 | 14 | 11 | 3 |
| 150-125-315 | 1450 | 200 | 32 | 30 | 4.2 |
| 150-125-315A | 1450 | 175 | 28 | 22 | 4.2 |
| 150-125-315B | 1450 | 150 | 24 | 15 | 4.2 |
| 150-125-400 | 1450 | 200 | 50 | 45 | 2.8 |
| 150-125-400A | 1450 | 180 | 45 | 37 | 2.8 |
| 150-125-400B | 1450 | 160 | 40 | 30 | 2.8 |
| 150-125-400C | 1450 | 144 | 36 | 22 | 2.8 |
| 200-150-250 | 1450 | 400 | 20 | 37 | 4.6 |
| 200-150-250A | 1450 | 320 | 16 | 22 | 4.6 |
| 200-150-315 | 1450 | 400 | 32 | 55 | 3.5 |
| 200-150-315A | 1450 | 350 | 28 | 37 | 3.5 |
| 200-150-315B | 1450 | 300 | 24 | 30 | 3.5 |
| 200-150-400 | 1450 | 400 | 50 | 90 | 4 |
| 200-150-400A | 1450 | 360 | 45 | 75 | 3.8 |
| 200-150-400B | 1450 | 320 | 40 | 55 | 3.8 |
| 200-150-400C | 1450 | 288 | 36 | 45 | 3.8 |
