| 材質 | Q235 |
| 電壓 | 380v |
| 風量 | 18000-120000m3/h |
| 配套電機功率 | 2*4 2*7.5 2*11 2*15 2*30 2*37KW |
| 適用范圍 | 通風換氣,通風 |
| 性能 | 低噪音風機 |
| 葉片數 | 7 8 9 11 |
| 重量 | 900kg |
| 軸功率 | 4/22/45/60/88/110/140 |
| 風機壓力 | 380v |
| 氣流方向 | 軸流 |
| 品牌 | 瑞冠 |
| 型號 | SDS |
| 加工定制 | 是 |
| 渦輪頭材質 | 鐵 |

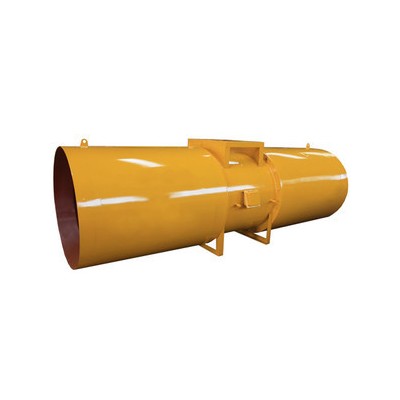

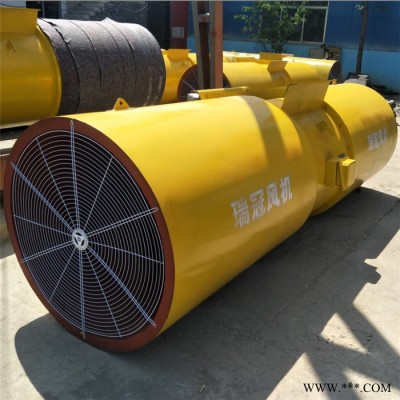

SDS-D/S系列隧道射流風機
機號：5. 6#-12.5# 風量：14760-109440m3/h
特點：能耗低、推力高、噪聲低、維護簡單、安裝方便懸掛或水平、不占用有用面積、可實現反向運轉,排出隧道內的煙霧、有單向和雙向通風、配用雙速電機可降低運行費用
應用：隧道、地鐵、礦山等工程
| SDS-D/S性能參數表 | | SDS — D 單向通風型 | | 型號No. | 葉角代號 | 轉速rpm | 風量m 3 /s | 軸向推力N | 出口風速m/s | 單速功率KW | 噪聲dBA | 雙速功率KW | | 5.6 | 1 | 2900 | 8.6 | 385 | 35.1 | 11 | 75 | 12.5 / 2.8 | | 1450 | 4.1 | 87 | 16.8 | 1.5 | 63 | | 2 | 2900 | 7.8 | 315 | 31.7 | 7.5 | 73 | 8 / 2 | | 1450 | 3.8 | 76 | 15.6 | 1.1 | 61 | | 3 | 2900 | 7.0 | 245 | 28.4 | 5.5 | 71 | -- | | 4 | 2900 | 6.2 | 200 | 25.2 | 4 | 68 | -- | | 6.3 | 1 | 2900 | 11.8 | 540 | 37.8 | 15 | 75 | 16 / 3.8 | | 1450 | 5.5 | 139 | 17.6 | 2.2 | 63 | | 2 | 2900 | 10.5 | 430 | 33.6 | 11 | 73 | 12.5 / 2.8 | | 1450 | 5.0 | 102 | 16.1 | 1.5 | 61 | | 3 | 2900 | 9.2 | 330 | 29.5 | 7.5 | 71 | -- | | 4 | 2900 | 8.2 | 260 | 26.4 | 5.5 | 68 | -- | | 7.1 | 1 | 2900 | 14.8 | 660 | 37.4 | 18.5 | 75 | 16 / 3.8 | | 1450 | 7.1 | 162 | 17.9 | 2.2 | 63 | | 2 | 2900 | 13.5 | 550 | 34.1 | 15 | 73 | 16 / 3.8 | | 1450 | 6.3 | 131 | 15.9 | 1.5 | 61 | | 3 | 2900 | 12.1 | 435 | 30.6 | 11 | 72 | -- | | 4 | 2900 | 10.5 | 340 | 26.5 | 7.5 | 69 | -- | | 8 | 1 | 1450 | 14.8 | 55. | 29.5 | 15 | 75 | 15.5 / 5.1 | | 960 | 10.0 | 240 | 19.9 | 4 | 68 | | 2 | 1450 | 13.8 | 475 | 27.5 | 11 | 74 | 12 / 4 | | 960 | 9.1 | 210 | 18.1 | 3 | 67 | | 3 | 1450 | 12.2 | 375 | 24.3 | 7.5 | 72 | -- | | 4 | 1450 | 11.0 | 300 | 21.9 | 5.5 | 70 | -- | | | | | 型號No. | 葉角代號 | 轉速rpm | 流量 m 3 /s | 軸向推力N | 出口風速m/s | 單速功率KW | 噪聲 dBA | 雙速功率KW | | 9 | 1 | 1450 | 21.1 | 870 | 33.2 | 22 | 75 | 24 / 8.5 | | 960 | 13.8 | 380 | 21.7 | 7.5 | 68 | | 2 | 1450 | 19.2 | 735 | 30.2 | 18.5 | 73.5 | 18 / 6.2 | | 960 | 12.4 | 315 | 19.5 | 5.5 | 66 | | 3 | 1450 | 17.3 | 600 | 27.2 | 15 | 71 | -- | | 4 | 1450 | 14.2 | 410 | 22.3 | 7.5 | 68 | -- | | 10 | 1 | 1450 | 27.6 | 1130 | 35.1 | 30 | 75 | 33 / 11 | | 960 | 18.2 | 490 | 23.2 | 11 | 68 | | 2 | 1450 | 23.2 | 800 | 29.5 | 22 | 73 | 24 / 8.5 | | 960 | 14.8 | 340 | 18.8 | 5.5 | 66 | | 3 | 1450 | 20.4 | 670 | 26.0 | 15 | 71 | -- | | 4 | 1450 | 18.8 | 550 | 23.9 | 11 | 68 | -- | | 11.2 | 1 | 1450 | 34.8 | 1370 | 35.5 | 37 | 75 | 38 / 13 | | 960 | 22.1 | 600 | 22.8 | 11 | 68 | | 2 | 1450 | 31.4 | 1100 | 32.1 | 30 | 73.5 | 33 / 11 | | 960 | 19.6 | 465 | 20.2 | 7.5 | 67 | | 3 | 1450 | 27.4 | 900 | 27.9 | 22 | 72 | -- | | 4 | 1450 | 24.4 | 710 | 25.0 | 15 | 69 | -- | | 12.5 | 1 | 1450 | 42.4 | 1690 | 34.6 | 45 | 75 | 47 / 16 | | 960 | 27.2 | 740 | 22.2 | 15 | 68 | | 2 | 1450 | 37.8 | 1350 | 30.8 | 37 | 73.5 | 38 / 13 | | 960 | 24.2 | 590 | 19.8 | 11 | 67 | | 3 | 1450 | 32.2 | 1005 | 26.3 | 22 | 71 | -- | | 4 | 1450 | 30.4 | 880 | 24.8 | 18.5 | 69 | -- | | | SDS — S 雙向通風型 | | 型號No. | 葉角代號 | 轉速 rpm | 流量 m 3 /s | 軸向推力 N | 出口風速m/s | 裝機功率KW | 噪聲dBA | 雙速功率KW | | 5.6 | 1 | 2900 | 8.4 | 340 | 34.1 | 11 | 75 | 12.5 / 2.8 | | 1450 | 4.0 | 82 | 16.2 | 1.5 | 63 | | 2 | 2900 | 7.6 | 280 | 30.9 | 7.5 | 73 | 8 / 2 | | 1450 | 3.7 | 71 | 15.1 | 1.1 | 61 | | 3 | 2900 | 6.7 | 210 | 27.2 | 5.5 | 71 | -- | | 4 | 2900 | 6.0 | 175 | 24.2 | 4 | 68 | -- | | 6.3 | 1 | 2900 | 11.2 | 480 | 35.8 | 15 | 75 | 16 / 3.8 | | 1450 | 5.4 | 117 | 17.3 | 2.2 | 63 | | 2 | 2900 | 10.0 | 375 | 32.0 | 11 | 73 | 12.5 / 2.8 | | 1450 | 4.6 | 85 | 14.7 | 1.5 | 61 | | 3 | 2900 | 8.6 | 280 | 27.5 | 7.5 | 71 | -- | | 4 | 2900 | 7.8 | 230 | 25.0 | 5.5 | 68 | -- | | 7.1 | 1 | 2900 | 13.3 | 555 | 33.7 | 18.5 | 75 | 16 / 3.8 | | 1450 | 6.5 | 132 | 16.4 | 2.2 | 63 | | 2 | 2900 | 12.2 | 465 | 30.8 | 15 | 73 | 16 / 3.8 | | 1450 | 6.0 | 112 | 15.2 | 1.5 | 61 | | 3 | 2900 | 10.8 | 365 | 27.3 | 11 | 72 | -- | | 4 | 2900 | 9.5 | 285 | 24.1 | 7.5 | 69 | -- | | 8 | 1 | 1450 | 13.8 | 450 | 29.5 | 15 | 75 | 15.5 / 5.1 | | 960 | 8.9 | 200 | 19.9 | 4 | 68 | | 2 | 1450 | 12.8 | 390 | 27.5 | 11 | 74 | 12 / 4 | | 960 | 8.3 | 170 | 18.1 | 3 | 67 | | 3 | 1450 | 11.0 | 24.3 | 310 | 7.5 | 72 | -- | | 4 | 1450 | 10.0 | 250 | 21.9 | 5.5 | 70 | -- | | | | | 型號No. | 葉角代號 | 轉速rpm | 流量m 3 /s | 軸向推力N | 出口風速m/s | 單速功率KW | 噪聲 dBA | 雙速功率KW | | 9 | 1 | 1450 | 19.4 | 725 | 33.2 | 22 | 75 | 24 / 8.5 | | 960 | 12.0 | 315 | 21.7 | 7.5 | 68 | | 2 | 1450 | 17.6 | 610 | 30.2 | 18.5 | 73.5 | 18 / 6.2 | | 960 | 11.2 | 260 | 19.5 | 5.5 | 66 | | 3 | 1450 | 16.0 | 550 | 27.2 | 15 | 71 | -- | | 4 | 1450 | 12.4 | 340 | 22.3 | 7.5 | 68 | -- | | 10 | 1 | 1450 | 24.8 | 950 | 35.1 | 30 | 75 | 33 / 11 | | 960 | 16.2 | 415 | 23.2 | 11 | 68 | | 2 | 1450 | 22.1 | 750 | 29.5 | 22 | 73 | 24 / 8.5 | | 960 | 13.8 | 330 | 18.8 | 5.5 | 66 | | 3 | 1450 | 18.8 | 550 | 26.0 | 15 | 71 | -- | | 4 | 1450 | 17.4 | 450 | 23.9 | 11 | 68 | -- | | 11.2 | 1 | 1450 | 32.2 | 1220 | 32.7 | 37 | 75 | 38 / 13 | | 960 | 20.5 | 530 | 21.0 | 11 | 68 | | 2 | 1450 | 30.2 | 1080 | 30.7 | 30 | 73.5 | 33 / 11 | | 960 | 19.6 | 475 | 20.0 | 7.5 | 67 | | 3 | 1450 | 26.1 | 805 | 26.5 | 22 | 72 | -- | | 4 | 1450 | 22.8 | 640 | 23.1 | 15 | 69 | -- | | 12.5 | 1 | 1450 | 40.2 | 1470 | 32.8 | 45 | 75 | 47 / 16 | | 960 | 25.4 | 640 | 20.7 | 15 | 68 | | 2 | 1450 | 37.2 | 1260 | 30.3 | 37 | 73.5 | 38 / 13 | | 960 | 23.2 | 550 | 18.9 | 11 | 67 | | 3 | 1450 | 30.1 | 860 | 24.5 | 22 | 71 | -- | | 4 | 1450 | 28.1 | 750 | 22.9 | 18.5 | 69 | -- | | |
