| 材質 | 不銹鋼，鍍鋅板 |
|---|---|
| 產品認證 | ISO9001 |
| 功率 | 22 |
| 類型 | 恒溫干燥箱 |
| 適用范圍 | 工礦企業 |
| 溫度范圍 | 40--120 |
| 主要用途 | 加熱融化油脂 |
| 操作方式 | 間歇式 |
| 品牌 | 南京騰陽 |
| 型號 | 非標訂做 |
| 加工定制 | 是 |
概述：I.overview:

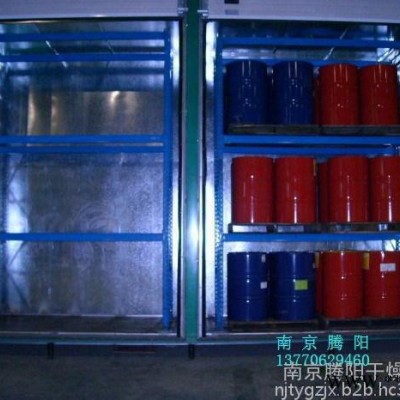

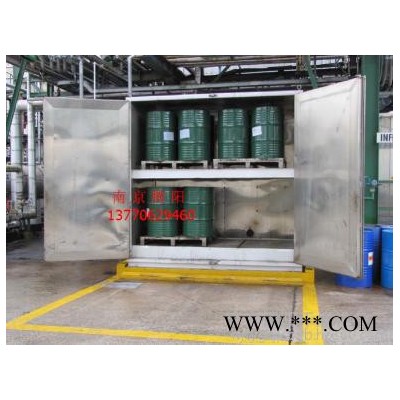

本公司開發高性能的騰陽牌大型烘箱和加熱室，可以對溫度**控制。溫度偏差小，自動化程度高，干燥和加熱時受熱均勻，并伴有熱風均勻吹拂被干燥的特殊裝置。性能可靠。本公司已成功為浙江和天津南京某外資油品企業設計、安裝了60-100㎡的大型烘房和150㎡的加熱室。已無故障使用了六年。高性能的騰陽牌大型烘房和加熱室，廣泛應用于潤滑油品和添加劑和**陶瓷行業的模具和產品的干燥，而且能源得到**好的利用，是良好的節能設備。南京騰陽干燥設備廠可以提供從設計、制造、安裝和售后服務的全方位**服務。
本公司開發高性能的騰陽牌大型烘箱和加熱室，可以對溫度**控制。溫度偏差小，自動化程度高，干燥和加熱時受熱均勻，并伴有熱風均勻吹拂被干燥的特殊裝置。性能可靠。本公司已成功為浙江和天津 南京某外資油品企業設計、安裝了60-100㎡的大型烘房和150㎡的加熱室。已無故障使用了六年。高性能的騰陽牌大型烘房和加熱室，廣泛應用于潤滑油品和添加劑和**陶瓷行業的模具和產品的干燥，而且能源得到**好的利用，是良好的節能設備。南京騰陽干燥設備廠可以提供從設計、制造、安裝和售后服務的全方位**服務。
I.overview:
Thecompany to develop high performance of the large oven and heating room, can beaccurately controlled temperature. Small temperature deviation, high degree ofautomation, heating, drying and heat evenly, and accompanied by even hot airblowing drying special device. Reliable performance. The company has beensuccessfully for the Zhejiang and Tianjin Nanjing a foreign oil companiesdesign, installed heating chamber of 60-100 square meters large drying room and150 square meters. Has been used for six years without fault. High performanceof the large baking room and heating room, widely used in lubricating oil andadditives and advanced ceramic industry mold and product drying, and energy isthe best use, is a good energy-saving equipment. Nanjing Teng Yang dryingequipment factory can provide from the design, manufacture, installation andafter-sales service to the full range of quality services.
二、結構特點及工作原理

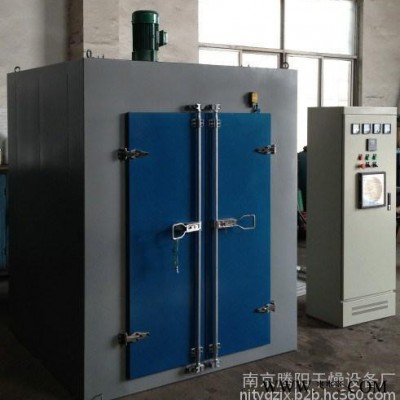

該加熱箱熱空氣循環系統采用立式電機水平循環送風方式，熱風循環均勻高效。風源由循環送風電機帶動風輪經由不銹鋼電加熱管，而將熱風順著側面風道送出，再經由風道至烘箱內室，再將使用后的空氣吸入頂部風道成為風源再度循環加熱使用，頂部設有壹臺循環風機，有足夠的風力和風壓來確保室內溫度均勻性。當因開關保溫箱的門動作引起溫度值發生擺動，可介此送風循環系統迅速恢復操作狀態溫度值。該型號烤箱在工作溫度選定后，箱內自動控制系統使溫度恒溫。熱源采用電加熱，風力強勁，運行平穩，溫度自動控制，熱源可采用電加熱，通過溫度傳感器測量和計算PID自整定功能，控溫精度達±1℃，進行加熱、升溫、恒溫、溫度自動控制，并有數字顯示設定溫度和烘箱內實際溫度。該保溫箱通用性強、操作簡單，在工業強干擾環境下運行性能穩定，并配有超溫報警燈。為了保證了執行元器件及試件的完好，整機保護系統由超溫保護裝置構成。
Two, structural characteristicsand working principle:
The thermal air circulationsystem of the heating box adopts the horizontal circulating air supply mode ofvertical motor, and the air circulation is uniform and efficient. Fengyuan bycyclic send wind motor drives the wind wheel via a stainless steel electricheating tube, and the hot air along the side of the air duct is sent, via airduct to an oven chamber, the use of air inhalation air duct at the top becomeair re circulation heating, with one set of circulating fan on top, enough windand air pressure to ensure that the indoor temperature uniformity. When thedoor action of the switch insulation box causes the temperature value to swing,the air circulation system can be sent to resume operation state temperaturevalue. The type of oven in the working temperature, the box automaticallycontrol system to make the temperature constant temperature. Heat source isheated by electric heating, stable operation, automatic temperature control,heat source can be used for electric heating, temperature sensor measurementand calculation of PID auto setting function, temperature control accuracy of1, heating, heating, constant temperature, automatic temperature control, and adigital display set temperature and oven temperature. The thermal insulationbox is strong, easy to operate, stable in industrial strong jamming environment,and is equipped with over temperature warning lamp. In order to guarantee theimplementation of the components and the test piece, the whole system is madeup of over temperature protective device.
The company to develop highperformance of the large oven and heating room, can be accurately controlledtemperature. Small temperature deviation, high degree of automation, heating,drying and heat evenly, and accompanied by even hot air blowing drying specialdevice. Reliable performance. The company has been successfully for theZhejiang and Tianjin Nanjing a foreign oil companies design, installed heatingchamber of 60-100 square meters large drying room and 150 square meters. Hasbeen used for six years without fault. High performance of the large bakingroom and heating room, widely used in lubricating oil and additives andadvanced ceramic industry mold and product drying, and energy is the best use,is a good energy-saving equipment. Nanjing Teng Yang drying equipment factorycan provide from the design, manufacture, installation and after-sales serviceto the full range of quality services.
三. 加熱烤箱外觀結構形式、耐用性：

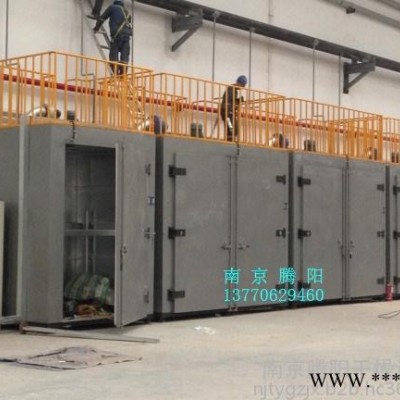

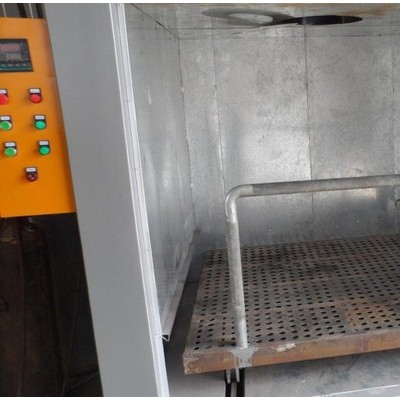

由于不銹鋼電加熱管被密封在箱體內，與外界空氣接觸面小，因此箱內鍍鋅板不易被氧化腐蝕。而且內熱循環：烘烤物件受熱均勻。加熱時底部有接油槽和接油坑，預防物料不慎益處。該設備在電氣控制安全上還**可靠：結構合理，有效工作面積大，叉車上下料方便，功能全，操作簡單，維修調整方便，噪音小，可靠性高，成本低，能耗少，生產效率高。在設備的后部焊有垂直爬梯（無護籠），便于安裝及維修人員到達設備頂部。設備頂部四周焊有安全護欄高度1070mm,確保安全生產。該加熱箱共為獨立加熱箱，加熱箱的外形四周多設有80mm的保溫層。加熱系統為獨立控制，電器控制柜設在加熱箱的側面。
