| 材質 | 銅，不銹鋼 |
|---|---|
| 產地 | 天津 |
| 耐溫 | -40℃到100℃ |
| 顏色 | 金屬本色 |
| 阻燃性 | 強 |
| 執行質量標準 | 國標 |
| 品牌 | 易科 |
| 型號 | 齊全 |
| 加工定制 | 是 |
| 質量認證 | ce認證 |

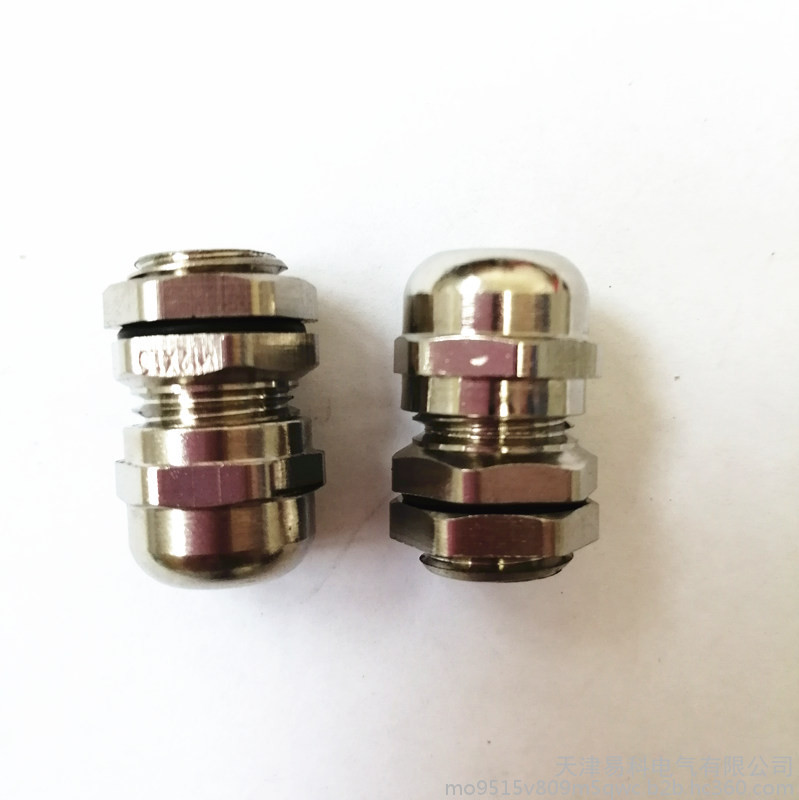

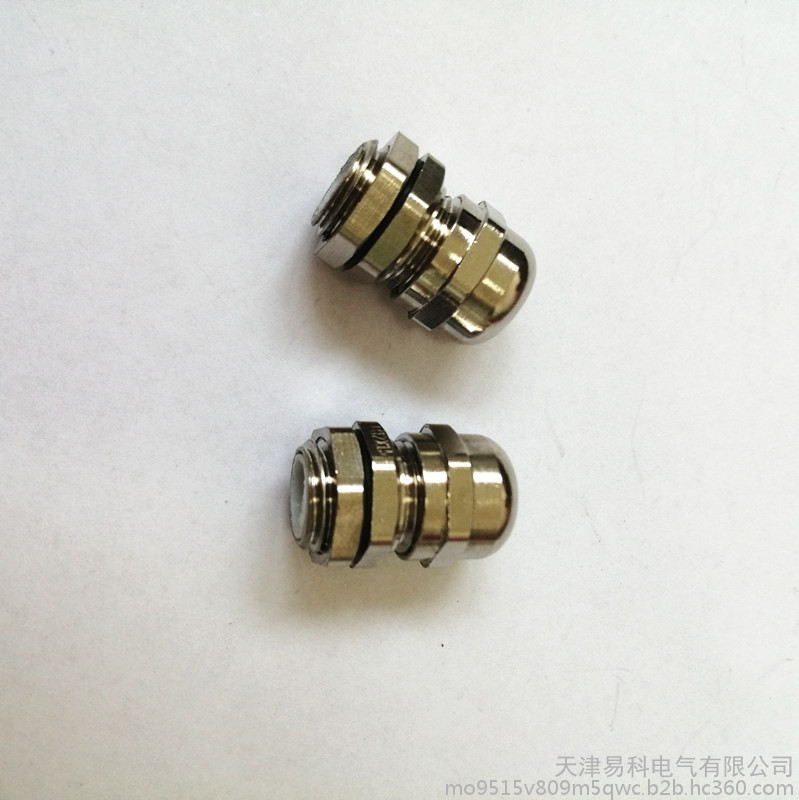

不銹鋼金屬電纜接頭防水接頭 格蘭頭M20*1.5 M10 12 14 16 18 24 25 27

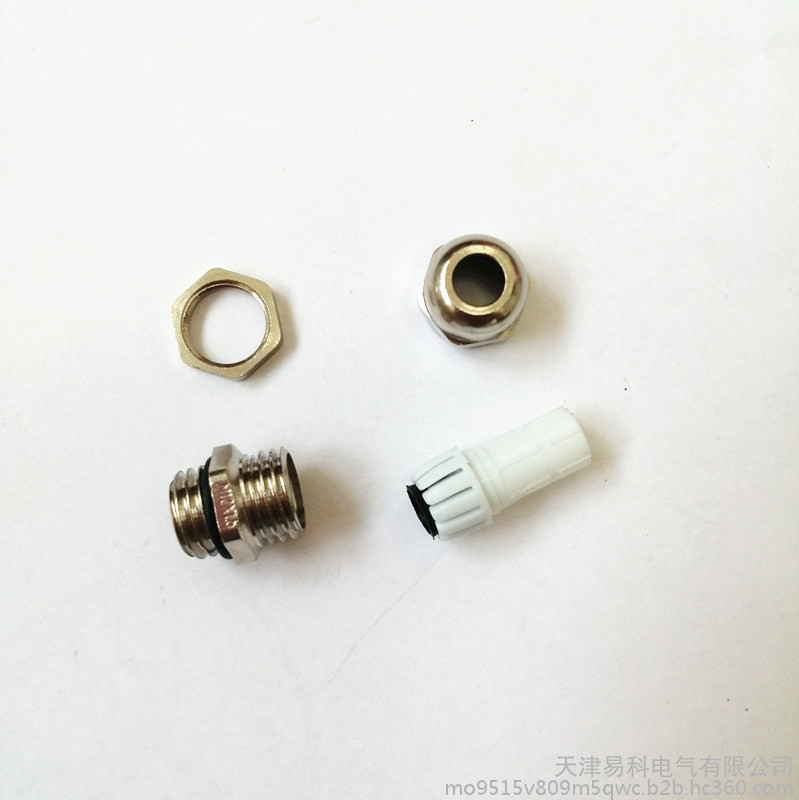

1、產品特性：特殊夾緊爪與加緊圈凹凸相扣設計，配合迫緊頭，裝配簡單，夾緊電纜范圍大，抗拉力強，防水防塵，耐腐蝕。 2、產品材質：接頭主體黃銅鍍鎳材質，夾緊件為尼龍(PA)材質，密封件和O型圈采用丁晴橡膠（NBR）制成。
3、防護等級：IP68。工作溫度：靜態：-40℃到100℃，短時間達120℃。動態：-20℃到 80℃，短時間100℃。
4、 螺紋長度：短螺紋適合于薄型機板的開孔或有內螺紋的設備上；長螺紋適合厚型機板。也可定制加長型螺紋。
5、使用方法：電纜接頭是電纜的配套產品，一端將電纜鎖緊，另一端接入設備。
| 螺紋規格公制AG Specification of thread AG | 螺紋規格PG Specification of thread PG | 螺紋規格NPT Specification of thread AG | 螺紋規格G Specification of thread G | 適用電纜 Cable range | 螺紋長度GL Thread length | 接合長度H Joint length | 扳手經 Spanner diameter |
| M12*1.5 | PG7 | NPT1/4 | G1/4 | 3-6.5 | 7mm | 19mm | 14mm |
| M14*1.5 | 4-8 | 7mm | 19mm | 18mm | |||
| M16*1.5 | PG9 | NPT3/8 | G3/8 | 4-8 | 8mm | 20mm | 18mm |
| M18*1.5 | PG11 | 5-10 | 8mm | 21mm | 20mm | ||
| M20*1.5 | PG13.5 | NPT1/2 | G1/2 | 6-12 | 8mm | 22mm | 22mm |
| M22*1.5 | PG16 | 10-14 | 8mm | 23mm | 24mm | ||
| M24*1.5 | 10-14 | 9mm | 25mm | 24/27mm | |||
| M25*1.5 | PG19 | 10-14 | 9mm | 25mm | 24/27mm | ||
| M25*1.5 | NPT3/4 | G3/4 | 13-18 | 9mm | 27mm | 30mm | |
| M27*1.5(2) | 13-18 | 9mm | 27mm | 30mm | |||
| M28*1.5(2) | PG21 | 13-18 | 9mm | 27mm | 30mm | ||
| M30*1.5(2) | 13-18 | 9mm | 29mm | 30/32mm | |||
| M32*1.5(2) | PG25 | 15-22 | 10mm | 29mm | 35mm | ||
| M33*1.5(2) | 15-22 | 10mm | 29mm | 35mm | |||
| M36*1.5(2) | PG29 | NPT1 | 18-25 | 10mm | 31mm | 40mm | |
| M37*1.5(2) | G1 | 18-25 | 10mm | 31mm | 40mm | ||
| M40*1.5(2) | 18-25 | 11mm | 31mm | 40/45mm | |||
| M40*1.5(2) | 22-30 | 11mm | 35mm | 45mm | |||
| M42*1.5(2) | PG36 | NPT1-1/4 | 22-30 | 11mm | 35mm | 45mm | |
| M47*1.5(2) | G1-1/4 | 25-33 | 11mm | 37mm | 50mm | ||
| M48*1.5(2) | 25-33 | 11mm | 37mm | 50mm | |||
| M50*1.5(2) | PG42 | NPT1-1/2 | 32-38 | 12mm | 37mm | 55/57mm | |
| M54*1.5(2) | G1-1/2 | 32-38 | 12mm | 38mm | 57mm | ||
| M56*1.5(2) | PG48 | NPT2 | 32-38 | 12mm | 38mm | 57/59mm | |
| M60*1.5(2) | G2 | 37-44 | 13mm | 38mm | 65mm | ||
| M63*1.5(2) | 37-44 | 13mm | 38mm | 65mm | |||
| M64*1.5(2) | PG63 | NPT2-1/2 | 37-44 | 13mm | 38mm | 65/68mm | |
| M72*2 | G2-1/2 | 42-52 | 15mm | 42mm | 77mm | ||
| M75*2 | 42-52 | 15mm | 42mm | 77mm | |||
| M80*2 | NPT3 | 55-62 | 15mm | 45mm | 90mm | ||
| M88*2 | G3 | 65-70 | 15mm | 45mm | 94mm | ||
| M100*2 | 78-84 | 15mm | 45mm | 110mm |
