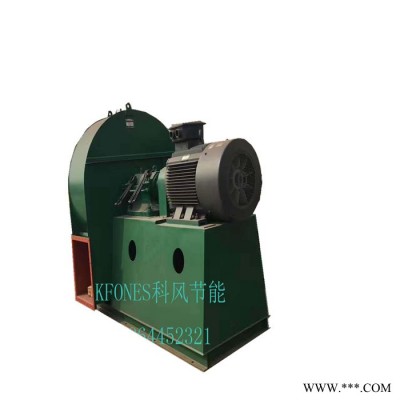

GY6-GY6-51-1型鍋爐離心送引風機

通風機：溫度t=20℃，密度ρ=1.2kg/m3,大氣壓力P=101325Pa
引風機：溫度t=200℃，密度ρ=0.745kg/m3,大氣壓力P=101325Pa

機號	轉速 r/min	全壓Pa	流量m3/h	電動機型號	功率kW
8D	1450	2745-2701	11000-13200	Y160L-4	15
		2612-2479	15400-17600	Y180M-4	18.5
		2346-1859	19800-26400	Y180L-4	22
9D	1450	3474-3138	15700-25000	Y200L-4	30
		2969-2353	28100-37500	Y225M-4	45
10D	1450	4289-4220	21500-25800	Y225M-4	45
		4081-3874	30000-34300	Y250M-4	55
		3666-2905	38600-51500	Y280S-4	75
11D	1450	5190-5106	28600-34300	Y280S-4	75
		4938-4688	40000-45700	Y280M-4	90
		4436-3515	51400-68500	Y315S-4	110
	960	2275-2238	18900-22700	Y200L2-6	22
	960	2164-1541	26500-45400	Y225M-6	30
12D	1450	6176-6077	37100-44600	Y315S-4	110
		5877-5579	51800-59300	Y315M1-4	132
		5279-4183	66700-89000	Y315M2-4	160
	960	2707-2664	24600-29500	Y250M-6	37
		2576-2183	34300-49100	Y280S-6	45
		2008-1834	54100-59000	Y280M-6	55
13D	1450	7248-7132	47200-56700	Y315M1-4	185
		6897-6547	65900-75400	Y315M2-4	200
		6196-4909	84800-113000	Y355-4	200/250
	960	3177-3023	31200-43700	Y280M-6	55
		2870-2152	50000-74900	Y315S-6	75
14D	1450	8406-7186	58900-106000	Y355-4	250/280/315
		6779-5694	118000-141000	Y400-4	355
	960	3685-3626	39000-46900	Y315S-6	75
		3506-3149	54500-70200	Y315M1-6	90
		2972-2496	78100-93400	Y315M2-6	110
15D	1450	9650-6537	72400-172000	Y400-4	355/400/450/500
	960	4230-4025	48100-66900	Y315M2-6	110
		3821-3616	76800-86100	Y315M3-6	132
		3412-2865	96000-115000	Y315M2-6	130
	730	2446-2470	36600-43900	Y280M-8	45
		2327-2209	50900-58400	Y315S-8	55
		2091-1657	65500-87400	Y315M1-8	75
16D	1450	10980-9917	88100-140000	Y400-4	500/560
		9385-7437	158000-211000	Y450-4	630/710
	960	4813-4579	58300-81400	Y315M2-6	160
		4347-4114	92700-105000	Y355M1-6	185
		3881-3260	117000-140000	Y355M2-6	200
16D	730	2783-2514	44300-70500	Y315M1-8	75
		2379-1885	79800-106000	Y315M2-8	90
17D	960	5433-5169	69900-97600	Y355M2-6	200
		4907-4644	111000-126000	Y355-6	250
		4381-3680	140000-168000	Y400-6	280
	730	3142-2989	53200-74200	Y315M2-8	90
		2837-2685	84400-95800	Y315M3-8	110
		2533-2128	106000-128000	Y315M2-8	132
18D	960	6091-5992	83000-100000	Y355-6	250
		5795-4126	116000-199000	Y400-6	280/315/355
	730	3522-3465	63100-76000	Y315M3-8	110
		3351-3181	88200-100000	Y315M2-8	132
		3010-2386	114000-151000	Y355M2-8	160
19D	960	6787-6129	97600-155000	Y400-6	315/355/400
		5801-4597	176000-234000	Y450-6	450/500
	730	3924-3734	74200-103000	Y355M2-8	160
		3544-3354	118000-134000	Y355M3-8	185
		3165-2658	148000-178000	Y355M4-8	200
20D	960	7520-5094	114000-273000	Y450-6	450/500/560/630
	730	4348-4277	86700-105000	Y355M3-8	185
		4137-2946	121000-208000	Y400-8	220/250/280

Y-6-51-1型鍋爐離心引風機

機號	轉速 r/min	全壓Pa	流量m3/h	電動機型號	功率kW
8D	1450	1704-1622	11000-15400	Y160M-4	11
		1539-1154	17600-26400	Y160L-4	15
9D	1450	2157-2053	15700-21900	Y180L-4	22
		1948-1461	25000-37500	Y200L-4	30
10D	1450	2663-2534	21500-30000	Y225S-4	37
		2405-1803	34300-51500	Y225M-4	45
11D	1450	3222-3067	28600-39900	Y250M-4	55
		2910-2182	45700-68500	Y280S-4	75
	960	1412-1387	18900-22700	Y180L-6	15
		1342-1205	26400-34000	Y200L1-6	18.5
		1137-955	37800-45400	Y200L2-6	22
12D	1450	3835-3463	37200-59300	Y280M-4	90
		3276-2597	66700-89000	Y315S-4	110
	960	1681-1435	24600-44100	Y225M-6	30
		1354-1136	49000-58900	Y250M-6	37
13D	1450	4500-4284	47200-65900	Y315M1-4	132
		4064-3629	75400-94300	Y315M2-4	160
		3338-3048	104000-113000	Y315M1-4	185
	960	1973-1878	31200-43600	Y250M-6	37
		1779-1684	49900-56100	Y280S-6	45
		1589-1334	62400-74800	Y280M-6	55
14D	1450	5219-3535	59000-141000	Y355-4	220/250
	960	2288-2178	39100	Y280M-6	55
		2064-1550	62300-93400	Y315S-6	75
15D	1450	5992-5410	72600-116000	Y355-4	250/280
		5119-4058	130000-174000	Y400-4	355
	960	2627-2583	48100-57700	Y315S-6	75
		2500-2244	66900-86100	Y315M1-6	90
		2118-1779	96100-115000	Y315M2-6	110
	730	1519-1370	36600-58400	Y280S-8	37
		1296-1027	65500-87400	Y280M-8	45
16D	1450	6817-4617	88100-211000	Y400-4	355/400/450/500
	960	2988-2843	58300-61400	Y315M2-6	110
		2699-2554	92700-105000	Y315M3-6	132
		2410-2024	117000-140000	Y315M2-6	160
	730	1728-1698	44300-53400	Y280M-8	45
		1642-1475	61900-79800	Y315S-8	55
		1392-1169	89000-106000	Y315M1-8	75
17D	960	3384-3318	69900-84200	Y315M1-6	132
		3209-3047	94600-111000	Y315M2-6	160
		2883-2721	126000-140000	Y355M1-6	185
		2503-2285	154000-168000	Y355M2-6	200
	730	1957-1665	53200-9580	Y315M1-8	75
		1571-1320	106000-128000	Y315M2-8	90
18D	960	3794-3416	83000-132000	Y355M2-6	200
		3232-2562	150000-199000	Y355-6	250
	730	2194-1975	63100-100000	Y315M2-8	90
		1867-1479	114000-151000	Y315M3-8	110
19D	960	4227-4009	97600-136000	Y355-6	250
		3806-2855	155000-234000	Y400-6	315/355
	730	2444-2318	74200-103000	Y315M3-8	110
		2201-2080	118000-134000	Y315M2-8	132
		1963-1651	148000-178000	Y355M2-8	130
20D	960	4684-3766	114000-227000	Y400-6	315/355/400
		3464-3163	251000-273000	Y450-6	450
	730	2708-2656	86700-105000	Y315M2-8	132
		2569-2438	121000-138000	Y355M2-8	160
		2305-1826	15600-208000	Y355M3-8	185
