| 產品別名 | [家用電器直流無刷電機] |
|---|---|
| 產品用途 | 家用電器 |
| 電動機功率 | 22 |
| 適用原料 | APET |

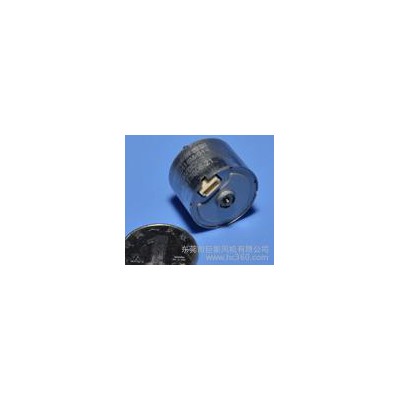

JN2238M直流無刷電機所屬分類：產品簡介：特征：雙轉向信號功能，鎖定保護，低慣量,，低噪音，低電磁干擾，超長壽命10000小時以上訂購熱線：400-998-3208產品詳情
> | JN2238M | Output Power 輸出功率: 1W~6W | Weight 重量: 54g (Approx.) |
Brushless DC Motor-Typical Application 直流無刷電機-典型應用 Home Application: Small Appliance, Electric Curtain, Electric Windows/Door, Small Cross-flow Fan 家用電器：小家電，電動窗簾，電動門窗，小型貫流風機 Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine 醫療器械：醫療泵，手術器械，攪拌機，離心機 Industry Facilities: Printing Machine, Binding Machine, Cutting Machine, Electric Valve 工業設備：印刷機，裝訂機，裁剪機，電動閥門 Business Equipment: Cash Register, ATM, TV set frame 商業設備：點鈔機，ATM機，電視機架 Personal Care: Massager, Vibrator, Malaxation Apparatus, Scrub Apparatus 個人護理：按摩器，震動器，揉捏器，磨砂器 | |||
Model 型號 (Brushless DC 無刷) | 電壓 Voltage(V) | No Load 空載 | Rated Load 額定負載 | Starting 起動 | ||||||
Operating Range | Rated | Speed (rpm) | Current (A) | Torque (mNm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (mNm) | Current (A) | |
JN2238M-S01 | 5-8 | 6 | 4000 | 0.09 | 4.61 | 3075 | 0.45 | 1.49 | 20.0 | 1.20 |
JN2238M-S02 | 8-26 | 12 | 4480 | 0.04 | 3.92 | 3490 | 0.19 | 1.44 | 17.7 | 0.72 |
JN2238M-S03 | 8-26 | 24 | 9980 | 0.08 | 5.886 | 8090 | 0.33 | 4.98 | 30.7 | 1.38 |
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement. 注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。 |
