| 別名 | 攪拌槽 |
|---|---|
| 用途 | 選礦 |
| 規格 | 1500x1500 |
| 產品別名 | 攪拌槽 |
| 外形尺寸 | 1500x1500 |
| 產地 | 山東煙臺招遠 |
| 電動機功率 | 0.55kw |
| 結構形式 | 立式 |
| 類型 | 攪拌槽 |
| 應用領域 | 礦物攪拌 |
| 種類 | 選礦設備 |
| 磨礦方式 | 濕式 |
| 品牌 | 金鳳 |
| 型號 | RJ1500 |
| 加工定制 | 是 |
1.1產品特點

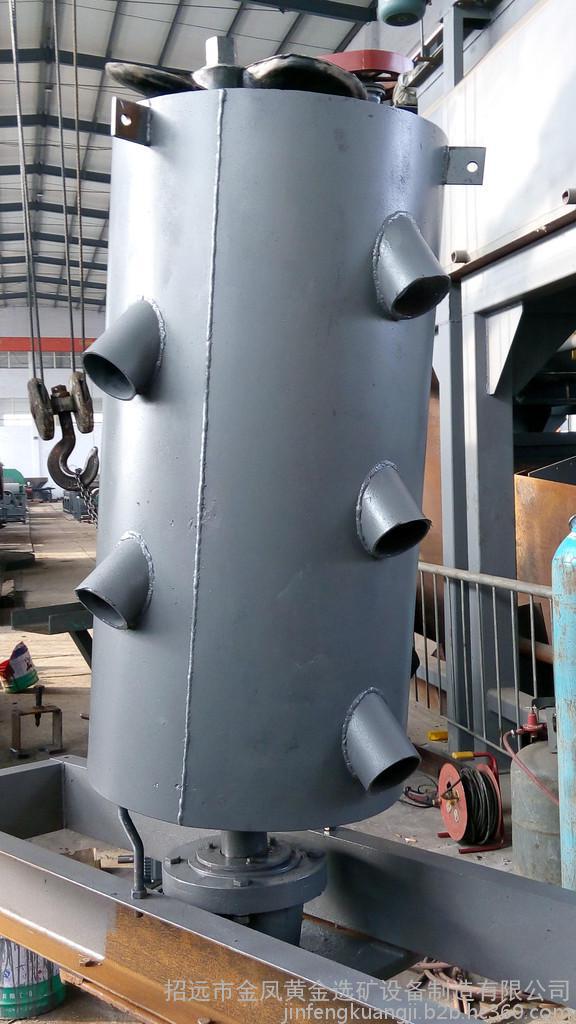

該產品是目前常用的普通攪拌槽，葉輪位于循環筒的下口部位，將礦漿、藥劑加入帶吸入管孔的循環筒內進行攪拌。本公司通過實驗，設計的新型葉輪不同于原來的Ⅰ、Ⅱ型攪拌槽、攪拌效率高。
1.2選用說明
1.2.1可根據用戶需要制作橡膠葉輪、尼龍葉輪等產品，訂貨時需特別注明。
1.2.2可根據用戶要求設置電機、給礦口、排礦口的相對位置，一般在現場安裝時組裝相關部件。
1.2.3 RJ攪拌槽有錐底和平底兩種型式，錐底型式需特別注明。
1.1 Product Features
This product is the most commonly used ordinary agitating tank at present. The impeller is located at the bottom opening of the cycling cylinder, taking the ore pulp and chemical reagent into the cycling cylinder with a suction orifice for agitating. The new impeller designed through experiments is different from the original agitating tank I and II, with high agitating efficiency.
1.2 Notes for selection
1.2.1 We can make rubber and nylon impeller as required by the customer. Please specify the type while placing your order.
1.2.2 We can arrange the relative positions of motor, feeding opening and discharging opening as required by the customer. Generally, relevant parts are assembled at the time of on-site installation.
1.2.3 There are two types of RJ agitating tank: cone base and flat base. Please specify it if a cone base type is demanded.
RJ型單葉輪攪拌槽技術參數表 Technical parameter list of RJ single impeller agitating tank
| 型號 Model | 槽的內部尺寸 Internal size of trough | 有效容積 (m3） Effective volume | 攪拌器Stirrer | 電動機 Motor | 外形尺寸 Dimension | 重量 （kg） Weight | ||||
| 直徑 （mm) diameter | 功率 （r/min） Speed | 型號 Model | 功率 （kw） Power | |||||||
| 長度 Length | 高度 Height | |||||||||
| 直徑 diameter | 高度 Heigh | |||||||||
| RJ05 | 500 | 500 | 0.078 | 150 | 690 | Y80M2-4 | 0.75 | 720 | 874 | 110 |
| RJ07 | 750 | 750 | 0.26 | 240 | 530 | Y90L-4 | 1.5 | 939 | 1241 | 228 |
| RJ10 | 1000 | 1000 | 0.58 | 240 | 530 | Y90L-4 | 1.5 | 1080 | 1665 | 350 |
| RJ12 | 1200 | 1200 | 1.14 | 400 | 320 | Y132S-4 | 3 | 1540 | 1858 | 765 |
| RJ15 | 1500 | 1500 | 2.2 | 400 | 320 | Y132S-4 | 3 | 1690 | 2171 | 1360 |
| RJ20 | 2000 | 2000 | 5.5 | 550 | 230 | Y132M2-4 | 5.5 | 2381 | 3046 | 1655 |
| RJ25 | 2500 | 2500 | 11 | 625 | 230 | Y160M-4 | 7.5 | 2881 | 3546 | 2766 |
| RJ30 | 3000 | 3000 | 19.1 | 900 | 210 | Y225S-8 | 18.5 | 3266 | 4325 | 4296 |
