| 產品別名 | 縫焊機 |
|---|---|
| 電流 | 交流 |
| 動力形式 | 水焊 |
| 工作形式 | 滾焊 |
| 焊接速度 | 1360 |
| 類型 | 橫縫滾焊機 |
| 驅動形式 | 電動 |
| 樣式 | 便攜式 |
| 用途 | 焊接 |
| 作用對象 | 金屬 |
| 作用原理 | 脈沖 |
| 成形時間 | 3S |
| 焊接直徑 | 1000 |
| 焊接壓力 | 0.6 |
| 品牌 | 火龍 |
| 型號 | FN-100 |

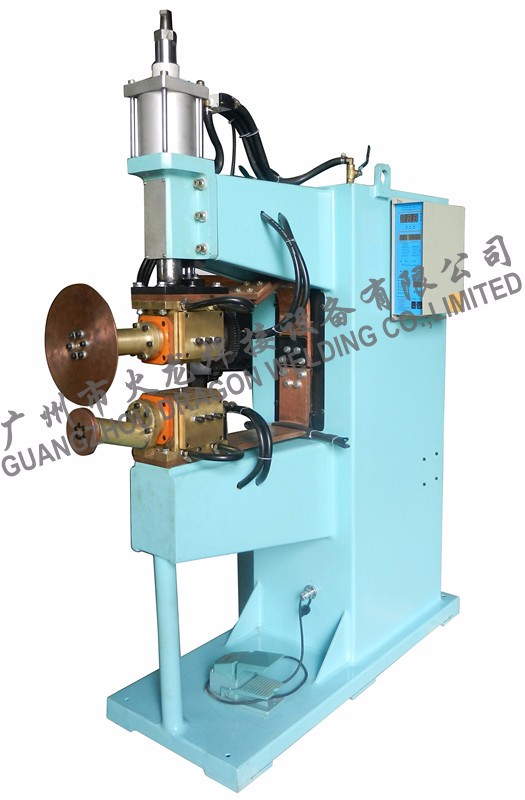

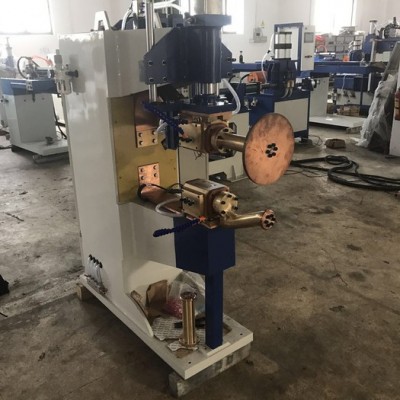

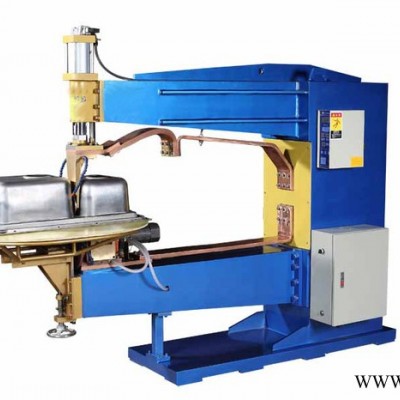

FN系列交流滾焊機
FN Series AC Rolling Seam Welding Machine
整機特性
1. 包含兩種標準機型：橫縫滾焊機和縱縫滾焊機；
2. 一臺機器也可以同時具備橫縫焊接和縱縫焊接兩種功能，只要將轉換一下上電極輪的方向和更換一下下電極臂，就可以輕松地完成兩種焊接方式的切換；
3. 單輪采用三相調速驅動，焊接速度調整方便，保證上下兩輪切線速度一致；
4. 采用可調行程氣缸加壓，避免上下電極碰撞損傷；

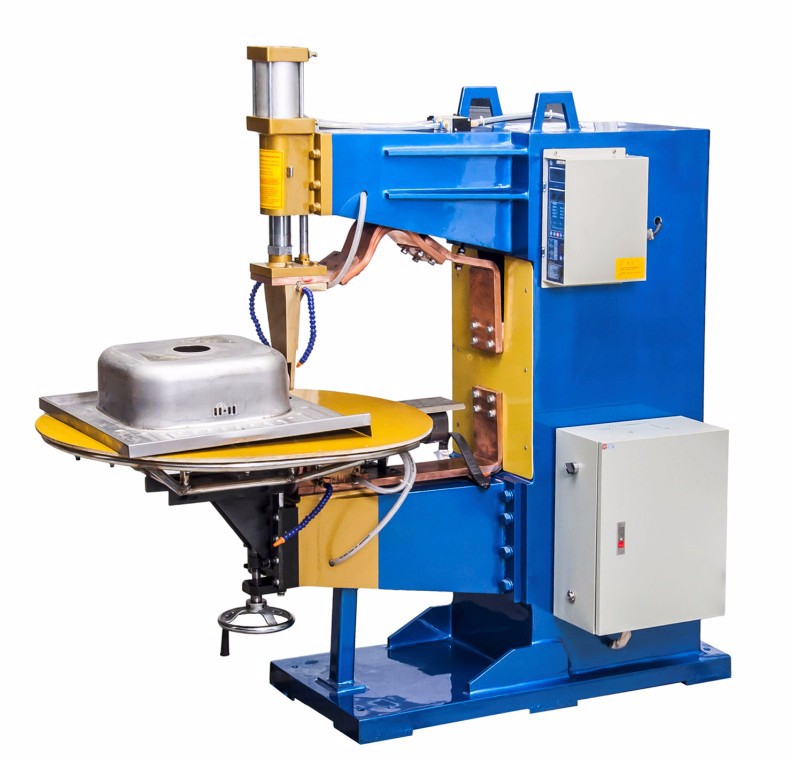

5. 廣泛應用于五金、家電、汽車、摩托車油箱、制盆、、水槽、制罐等金屬制造和加工行業。
Main Features
l There are two standard Types: Transversal Seam Welding Machine and Longitudinal Seam Welding Machine;
l Also one machine can be used as both transversal seam welding and longitudinal seam welding, only need to change the direction of upper welding wheel and the lower welding head and change the welding arm;
l Welding wheel adopt three-phase infinitely adjustable-speed drives,convenient to welding speed adjusting,the two welding wheels have the same tangential speed;
l Adopt adjustable stroke cylinder,to avoid collision damage between upper and lower welding wheel;
l Driven one head and free the other head;

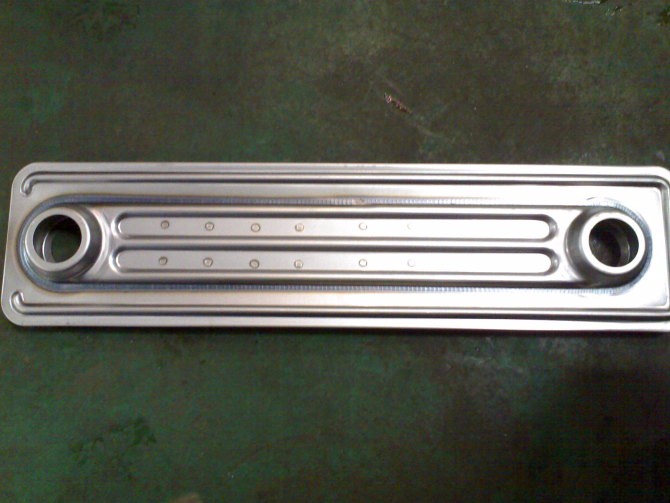

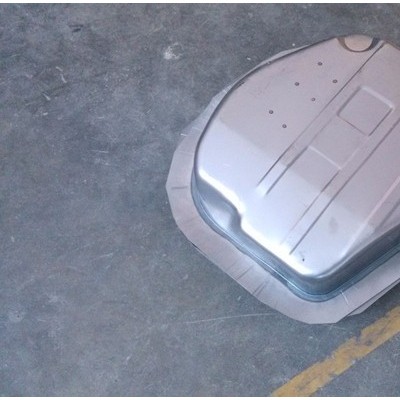

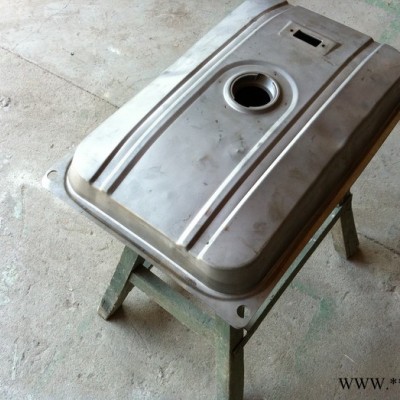

l Widely used in hardware, appliances, automotive, manufacturing pots, can, fuel tank, tank producing and other metal manufacturing and processing industries.
主要技術參數 Main Technical Parameters
| 項目 Item | 額定 | 額定初 | 額定 | 短 | 電極 | 焊接 | 電極 | 電動機 | 電動機 | 冷卻 | 重量 |
| Rated | Rated | Rated | Maximum | Electrode | Welding | Electrode | Motor | Motor | Cooling | Weight | |
| KVA | V | Hz | A | mm | M/min | KN | V | W | L/min | Kg | |
| FN-50 | 50 | 380 | 50/60 | 15000 | 50 | 0.6-2 | 2.5 | 3-380V | 90 | 30 | 500 |
| FN-75 | 75 | 380 | 50/60 | 18000 | 50 | 0.6-2 | 3.9 | 3-380V | 150 | 30 | 650 |
| FN-100 | 100 | 380 | 50/60 | 20000 | 50 | 0.6-2 | 4.7 | 3-380V | 150 | 30 | 880 |
| FN-150 | 150 | 380 | 50/60 | 26000 | 50 | 0.6-2 | 6.1 | 3-380V | 150 | 40 | 1050 |
| FN-200 | 200 | 380 | 50/60 | 31000 | 50 | 0.6-2 | 6.1 | 3-380V | 150 | 40 | 1250 |
