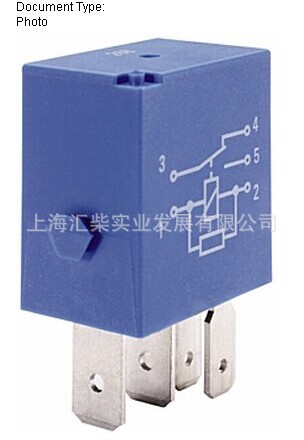

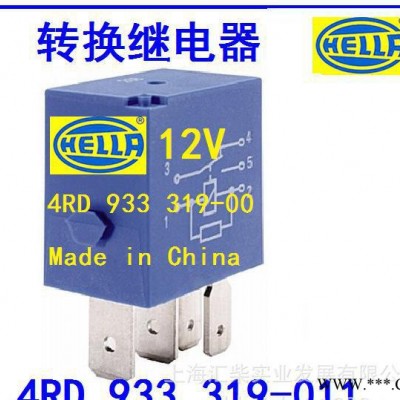

海拉4RD933319-007電子控制繼電器 大電流繼電器
| 應用范圍 | 控制 電流 | | 產(chǎn)品系列 | 繼電器 | | 觸點負載 | 中功率 | | 觸點切換電流 | 15A | | 觸點切換電壓 | 12V | | 觸點形式 | 常開型 | | 額定電流 | 20-35A | | 額定電壓 | 12V | | 防護特征 | 密封式 | | 線圈電源 | DC12V | | 線圈功率 | 0.36W | | 品牌 | 海拉 | | 型號 | 4RD 933 319-007 |
| HELLA | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | Relay, main current | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | 4RD 933 319-007 | ![]() | Relay, main current | | ![]() | ![]() | ![]() | ![]() |

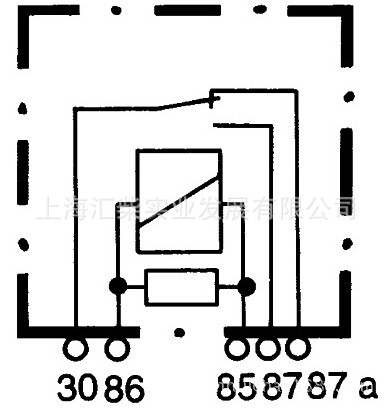

![]() | ![]() | | Supplementary Article/Supplementary Info 2: with lock tab, with resistance, Capacity at 12V: 20/35A, Supplementary Article/Supplementary Info: without holder, Colour: Blue, Inductive Load: 15 A, 30 A, Capacitive Load: 15 A, 25 A, Rated Voltage: 12 V, Ohmic Load: 20 A, 35 A, Number of Poles: 5, Wiring Diagramme: W2, Combi Switch Function: Directional Contact, Prot.type (IP Code): 54, Plug-type ID: C1, Temp. Range: -40°C / +125°C °C | ![]() |
| ![]() | ![]() | ![]() |
| ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | 4RD 933 319-011 | ![]() | Relay, main current | | ![]() | ![]() | ![]() | ![]() |
![]() | ![]() | | Supplementary Article/Supplementary Info 2: with resistance, Capacity at 24V: 20A / 10A, Supplementary Article/Supplementary Info: without holder, Colour: Black, Rated Voltage: 24 V, Number of Poles: 5, Wiring Diagramme: W2, Combi Switch Function: Selector Switch, Prot.type (IP Code): 54, Plug-type ID: C1, Temp. Range: -40°C...+125°C °C | ![]() |
| ![]() | ![]() | ![]() |
| ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | ![]() | 4RD 933 319-017 | ![]() | Relay, main current | | ![]() | ![]() | ![]() | ![]() |
![]() | ![]() | | Supplementary Article/Supplementary Info 2: with resistance, Capacity at 24V: 20A / 10A, Supplementary Article/Supplementary Info: without holder, Colour: Black, Rated Voltage: 24 V, Number of Poles: 5, Wiring Diagramme: W2, Combi Switch Function: Selector Switch, Prot.type (IP Code): 54, Plug-type ID: C1, Temp. Range: -40°C...+125°C °C | ![]() |
|
|
*************************************************************************************************************************************************************************************************************************************************************************************************************************************************************************
|
