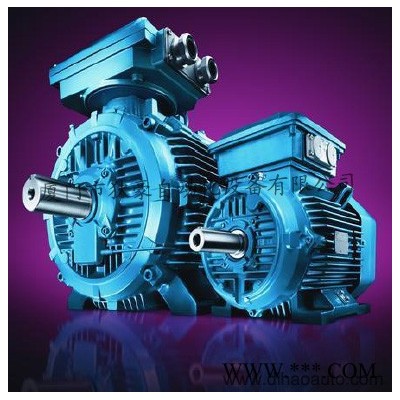

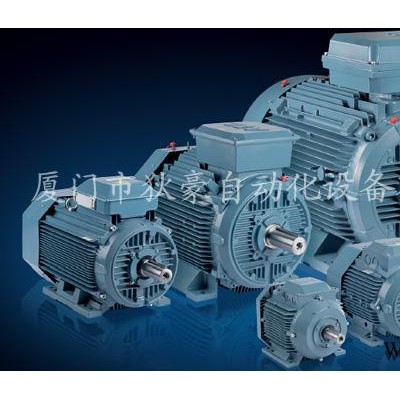

M3BP三相全封閉鼠籠式電機
M3BP系列高性能過程用途鑄鐵電機是針對當今工業中惡劣工況要求而設計的高效電機，符合歐洲一級能源標準，廣泛應用于船舶、造紙、礦山、電廠、港機、冶金、水廠等行業。
亮點：
功率范圍覆蓋0.25kW-710kW
針對當今工業中惡劣工況要求而設計，適用嚴酷要求并長期連續運轉的場合
按照ABB低壓電機最高質量等級制造，長達30年的設計使用壽命
強大的改裝平臺，可針對特殊應用需求提供專業解決方案
高效率等級和低維護設計，降低客戶的運營成本
IP55-IC411-絕緣等級F，溫升等級B
符合IEC 60034-30；2008的IE2效率等級

IE2 M3BP

3000r/min 2極，B3臥式安裝,標準設計
M3BP71MA2 0.37KW B3 3GBP071321-ASB
M3BP71MB2 0.55KW B3 3GBP071322-ASB
M3BP80MB2 0.75KW B3 3GBP081322-ASB
M3BP80MC2 1.1KW B3 3GBP081323-ASB
M3BP90SLB2 1.5KW B3 3GBP091322-ASB
M3BP90SLC2 2.2KW B3 3GBP091323-ASB
M3BP100LB2 3KW B3 3GBP101322-ASB
M3BP112MB2 4KW B3 3GBP111322-ADB
M3BP132SMB2 5.5KW B3 3GBP131322-ADB
M3BP132SMC2 7.5KW B3 3GBP131324-ADB
M3BP160MLA2 11KW B3 3GBP161031-ADG
M3BP160MLB2 15KW B3 3GBP161036-ADG
M3BP160MLC2 18.5KW B3 3GBP161037-ADG
M3BP180MLA2 22KW B3 3GBP181031-ADG
M3BP200MLA2 30KW B3 3GBP201035-ADG
M3BP200MLB2 37KW B3 3GBP201036-ADG
M3BP225SMA2 45KW B3 3GBP221031-ADG
M3BP250SMA2 55KW B3 3GBP251031-ADG
M3BP280SMA2 75KW B3 3GBP281210-ADG
M3BP280SMB2 90KW B3 3GBP281220-ADG
M3BP315SMA2 110KW B3 3GBP311210-ADG
M3BP315SMB2 132KW B3 3GBP311220-ADG
M3BP315SMC2 160KW B3 3GBP311230-ADG
M3BP315MLA2 200KW B3 3GBP311410-ADG
M3BP355SMA2 250KW B3 3GBP351210-ADG
M3BP355SMB2 315KW B3 3GBP351220-ADG
M3BP355SMC2 355KW B3 3GBP351230-ADG
M3BP355MLA2 400KW B3 3GBP351410-ADG
M3BP355MLB2 450KW B3 3GBP351420-ADG
M3BP355LKA2 500KW B3 3GBP351810-ADG
M3BP355LKB2 560KW B3 3GBP351820-ADG
M3BP400LA2 560KW B3 3GBP401510-ADG
M3BP400LKA2 560KW B3 3GBP401810-ADG
M3BP400LB2 630KW B3 3GBP401520-ADG
M3BP400LKB2 630KW B3 3GBP401820-ADG
M3BP400LC2 710KW B3 3GBP401530-ADG
M3BP400LKC2 710KW B3 3GBP401830-ADG
3000r/min 2極，B5立式安裝,標準設計
M3BP71MA2 0.37KW B5 3GBP071321-BSB
M3BP71MB2 0.55KW B5 3GBP071322-BSB
M3BP80MB2 0.75KW B5 3GBP081322-BSB
M3BP80MC2 1.1KW B5 3GBP081323-BSB
M3BP90SLB2 1.5KW B5 3GBP091322-BSB
M3BP90SLC2 2.2KW B5 3GBP091323-BSB
M3BP100LB2 3KW B5 3GBP101322-BSB
M3BP112MB2 4KW B5 3GBP111322-BDB
M3BP132SMB2 5.5KW B5 3GBP131322-BDB
M3BP132SMC2 7.5KW B5 3GBP131324-BDB
M3BP160MLA2 11KW B5 3GBP161031-BDG
M3BP160MLB2 15KW B5 3GBP161036-BDG
M3BP160MLC2 18.5KW B5 3GBP161037-BDG
M3BP180MLA2 22KW B5 3GBP181031-BDG
M3BP200MLA2 30KW B5 3GBP201035-BDG
M3BP200MLB2 37KW B5 3GBP201036-BDG
M3BP225SMA2 45KW B5 3GBP221031-BDG
M3BP250SMA2 55KW B5 3GBP251031-BDG
M3BP280SMA2 75KW B5 3GBP281210-BDG
M3BP280SMB2 90KW B5 3GBP281220-BDG
M3BP315SMA2 110KW B5 3GBP311210-BDG
M3BP315SMB2 132KW B5 3GBP311220-BDG
M3BP315SMC2 160KW B5 3GBP311230-BDG
M3BP315MLA2 200KW B5 3GBP311410-BDG
M3BP355SMA2 250KW B5 3GBP351210-BDG
M3BP355SMB2 315KW B5 3GBP351220-BDG
M3BP355SMC2 355KW B5 3GBP351230-BDG
M3BP355MLA2 400KW B5 3GBP351410-BDG
M3BP355MLB2 450KW B5 3GBP351420-BDG
M3BP355LKA2 500KW B5 3GBP351810-BDG
M3BP355LKB2 560KW B5 3GBP351820-BDG
M3BP400LA2 560KW B5 3GBP401510-BDG
M3BP400LKA2 560KW B5 3GBP401810-BDG
M3BP400LB2 630KW B5 3GBP401520-BDG
M3BP400LKB2 630KW B5 3GBP401820-BDG
M3BP400LC2 710KW B5 3GBP401530-BDG
M3BP400LKC2 710KW B5 3GBP401830-BDG
3000r/min 2極，B3臥式安裝,高功率輸出設計
M3BP160MLD2 22KW B3 3GBP161034-ADG
M3BP160MLE2 27KW B3 3GBP161035-ADG
M3BP180MLB2 30KW B3 3GBP181032-ADG
M3BP200MLC2 45KW B3 3GBP201033-ADG
M3BP200MLD2 55KW B3 3GBP201034-ADG
M3BP225SMB2 55KW B3 3GBP221032-ADG
M3BP225SMC2 75KW B3 3GBP221033-ADG
M3BP225SMD2 80KW B3 3GBP221034-ADG
M3BP250SMB2 75KW B3 3GBP251032-ADG
M3BP250SMC2 90KW B3 3GBP251033-ADG
M3BP280SMC2 110KW B3 3GBP281230-ADG
M3BP315LKA2 250KW B3 3GBP311810-ADG
M3BP315LKC2 315KW B3 3GBP311830-ADG
3000r/min 2極，B5立式安裝,高功率輸出設計
M3BP160MLD2 22KW B5 3GBP161034-BDG
M3BP160MLE2 27KW B5 3GBP161035-BDG
M3BP180MLB2 30KW B5 3GBP181032-BDG
M3BP200MLC2 45KW B5 3GBP201033-BDG
M3BP200MLD2 55KW B5 3GBP201034-BDG
M3BP225SMB2 55KW B5 3GBP221032-BDG
M3BP225SMC2 75KW B5 3GBP221033-BDG
M3BP225SMD2 80KW B5 3GBP221034-BDG
M3BP250SMB2 75KW B5 3GBP251032-BDG
M3BP250SMC2 90KW B5 3GBP251033-BDG
M3BP280SMC2 110KW B5 3GBP281230-BDG
M3BP315LKA2 250KW B5 3GBP311810-BDG
M3BP315LKC2 315KW B5 3GBP311830-BDG
1500r/min 4極，B3臥式安裝,標準設計
M3BP71MA4 0.25KW B3 3GBP072321-ASB
M3BP71MB4 0.37KW B3 3GBP072322-ASB
M3BP80MB4 0.55KW B3 3GBP082322-ASB
M3BP80MD4 0.75KW B3 3GBP082324-ASB
M3BP90SLB4 1.1KW B3 3GBP092322-ASB
M3BP90SLD4 1.5KW B3 3GBP092325-ASB
M3BP100LC4 2.2KW B3 3GBP102323-ASB
M3BP100LD4 3KW B3 3GBP102324-ASB
M3BP112MB4 4KW B3 3GBP112322-ADB
M3BP132SMB4 5.5KW B3 3GBP132322-ADB
M3BP132SMC4 7.5KW B3 3GBP132323-ADB
M3BP160MLA4 11KW B3 3GBP162031-ADG
M3BP160MLB4 15KW B3 3GBP162032-ADG
M3BP180MLA4 18.5KW B3 3GBP182031-ADG
M3BP180MLB4 22KW B3 3GBP182032-ADG
M3BP200MLA4 30KW B3 3GBP202031-ADG
M3BP225SMA4 37KW B3 3GBP222031-ADG
M3BP225SMB4 45KW B3 3GBP222032-ADG
M3BP250SMA4 55KW B3 3GBP252031-ADG
M3BP280SMA4 75KW B3 3GBP282210-ADG
M3BP280SMB4 90KW B3 3GBP282220-ADG
M3BP315SMA4 110KW B3 3GBP312210-ADG
M3BP315SMB4 132KW B3 3GBP312220-ADG
M3BP315SMC4 160KW B3 3GBP312230-ADG
M3BP315MLA4 200KW B3 3GBP312410-ADG
M3BP355SMA4 250KW B3 3GBP352210-ADG
M3BP355SMB4 315KW B3 3GBP352220-ADG
M3BP355SMC4 355KW B3 3GBP352230-ADG
M3BP355MLA4 400KW B3 3GBP352410-ADG
M3BP355MLB4 450KW B3 3GBP352420-ADG
M3BP355LKA4 500KW B3 3GBP352810-ADG
M3BP355LKB4 560KW B3 3GBP352820-ADG
M3BP400LA4 560KW B3 3GBP402510-ADG
M3BP400LKA4 560KW B3 3GBP402810-ADG
M3BP400LB4 630KW B3 3GBP402520-ADG
M3BP400LKB4 630KW B3 3GBP402820-ADG
M3BP400LC4 710KW B3 3GBP402530-ADG
M3BP400LKC4 710KW B3 3GBP402830-ADG
1500r/min 4極，B5立式安裝,標準設計
M3BP71MA4 0.25KW B5 3GBP072321-BSB
M3BP71MB4 0.37KW B5 3GBP072322-BSB
M3BP80MB4 0.55KW B5 3GBP082322-BSB
M3BP80MD4 0.75KW B5 3GBP082324-BSB
M3BP90SLB4 1.1KW B5 3GBP092322-BSB
M3BP90SLD4 1.5KW B5 3GBP092325-BSB
M3BP100LC4 2.2KW B5 3GBP102323-BSB
M3BP100LD4 3KW B5 3GBP102324-BSB
M3BP112MB4 4KW B5 3GBP112322-BDB
M3BP132SMB4 5.5KW B5 3GBP132322-BDB
M3BP132SMC4 7.5KW B5 3GBP132323-BDB
M3BP160MLA4 11KW B5 3GBP162031-BDG
M3BP160MLB4 15KW B5 3GBP162032-BDG
M3BP180MLA4 18.5KW B5 3GBP182031-BDG
M3BP180MLB4 22KW B5 3GBP182032-BDG
M3BP200MLA4 30KW B5 3GBP202031-BDG
M3BP225SMA4 37KW B5 3GBP222031-BDG
M3BP225SMB4 45KW B5 3GBP222032-BDG
M3BP250SMA4 55KW B5 3GBP252031-BDG
M3BP280SMA4 75KW B5 3GBP282210-BDG
M3BP280SMB4 90KW B5 3GBP282220-BDG
M3BP315SMA4 110KW B5 3GBP312210-BDG
M3BP315SMB4 132KW B5 3GBP312220-BDG
M3BP315SMC4 160KW B5 3GBP312230-BDG
M3BP315MLA4 200KW B5 3GBP312410-BDG
M3BP355SMA4 250KW B5 3GBP352210-BDG
M3BP355SMB4 315KW B5 3GBP352220-BDG
M3BP355SMC4 355KW B5 3GBP352230-BDG
M3BP355MLA4 400KW B5 3GBP352410-BDG
M3BP355MLB4 450KW B5 3GBP352420-BDG
M3BP355LKA4 500KW B5 3GBP352810-BDG
M3BP355LKB4 560KW B5 3GBP352820-BDG
M3BP400LA4 560KW B5 3GBP402510-BDG
M3BP400LKA4 560KW B5 3GBP402810-BDG
M3BP400LB4 630KW B5 3GBP402520-BDG
M3BP400LKB4 630KW B5 3GBP402820-BDG
M3BP400LC4 710KW B5 3GBP402530-BDG
M3BP400LKC4 710KW B5 3GBP402830-BDG
1500r/min 4極，B3臥式安裝,高功率輸出設計
M3BP160MLC4 18.5KW B3 3GBP162033-ADG
M3BP160MLD4 22KW B3 3GBP162034-ADG
M3BP180MLC4 30KW B3 3GBP182033-ADG
M3BP200MLB4 37KW B3 3GBP202032-ADG
M3BP200MLC4 45KW B3 3GBP202033-ADG
M3BP225SMC4 55KW B3 3GBP222033-ADG
M3BP225SMD4 64KW B3 3GBP222034-ADG
M3BP250SMB4 75KW B3 3GBP252032-ADG
M3BP250SMC4 90KW B3 3GBP252033-ADG
M3BP280SMC4 110KW B3 3GBP282230-ADG
M3BP315LKA4 250KW B3 3GBP312810-ADG
M3BP315LKB4 280KW B3 3GBP312820-ADG
M3BP315LKC4 315KW B3 3GBP312830-ADG
1500r/min 4極，B5立式安裝,高功率輸出設計
M3BP160MLC4 18.5KW B5 3GBP162033-BDG
M3BP160MLD4 22KW B5 3GBP162034-BDG
M3BP180MLC4 30KW B5 3GBP182033-BDG
M3BP200MLB4 37KW B5 3GBP202032-BDG
M3BP200MLC4 45KW B5 3GBP202033-BDG
M3BP225SMC4 55KW B5 3GBP222033-BDG
M3BP225SMD4 64KW B5 3GBP222034-BDG
M3BP250SMB4 75KW B5 3GBP252032-BDG
M3BP250SMC4 90KW B5 3GBP252033-BDG
M3BP280SMC4 110KW B5 3GBP282230-BDG
M3BP315LKA4 250KW B5 3GBP312810-BDG
M3BP315LKB4 280KW B5 3GBP312820-BDG
M3BP315LKC4 315KW B5 3GBP312830-BDG
1000r/min 6極，B3臥式安裝,標準設計
M3BP71MA6 0.18KW B3 3GBP073321-ASB
M3BP71MB6 0.25KW B3 3GBP073322-ASB
M3BP80MA6 0.37KW B3 3GBP083321-ASB
M3BP80MB6 0.55KW B3 3GBP083322-ASB
M3BP90SLC6 0.75KW B3 3GBP093323-ASB
M3BP90SLE6 1.1KW B3 3GBP093324-ASB
M3BP100L6 1.5KW B3 3GBP103322-ASB
M3BP112MB6 2.2KW B3 3GBP113322-ASB
M3BP132SMB6 3KW B3 3GBP133321-ASB
M3BP132SMC6 4KW B3 3GBP133322-ADB
M3BP132SMF6 5.5KW B3 3GBP133324-ADB
M3BP160MLA6 7.5KW B3 3GBP163031-ADG
M3BP160MLB6 11KW B3 3GBP163032-ADG
M3BP180MLA6 15KW B3 3GBP183031-ADG
M3BP200MLA6 18.5KW B3 3GBP203031-ADG
M3BP200MLB6 22KW B3 3GBP203032-ADG
M3BP225SMA6 30KW B3 3GBP223031-ADG
M3BP250SMA6 37KW B3 3GBP253031-ADG
M3BP280SMA6 45KW B3 3GBP283210-ADG
M3BP280SMB6 55KW B3 3GBP283220-ADG
M3BP315SMA6 75KW B3 3GBP313210-ADG
M3BP315SMB6 90KW B3 3GBP313220-ADG
M3BP315SMC6 110KW B3 3GBP313230-ADG
M3BP315MLA6 132KW B3 3GBP313410-ADG
M3BP355SMA6 160KW B3 3GBP353210-ADG
M3BP355SMB6 200KW B3 3GBP353220-ADG
M3BP355SMC6 250KW B3 3GBP353230-ADG
M3BP355MLB6 315KW B3 3GBP353420-ADG
M3BP355LKA6 355KW B3 3GBP353810-ADG
M3BP355LKB6 400KW B3 3GBP353820-ADG
M3BP400LA6 400KW B3 3GBP403510-ADG
M3BP400LKA6 400KW B3 3GBP403810-ADG
M3BP400LB6 450KW B3 3GBP403520-ADG
M3BP400LKB6 450KW B3 3GBP403820-ADG
M3BP400LC6 500KW B3 3GBP403530-ADG
M3BP400LKC6 500KW B3 3GBP403830-ADG
M3BP400LD6 560KW B3 3GBP403540-ADG
M3BP400LKD6 560KW B3 3GBP403840-ADG
1000r/min 6極，B5立式安裝,標準設計
M3BP71MA6 0.18KW B5 3GBP073321-BSB
M3BP71MB6 0.25KW B5 3GBP073322-BSB
M3BP80MA6 0.37KW B5 3GBP083321-BSB
M3BP80MB6 0.55KW B5 3GBP083322-BSB
M3BP90SLC6 0.75KW B5 3GBP093323-BSB
M3BP90SLE6 1.1KW B5 3GBP093324-BSB
M3BP100L6 1.5KW B5 3GBP103322-BSB
M3BP112MB6 2.2KW B5 3GBP113322-BSB
M3BP132SMB6 3KW B5 3GBP133321-BSB
M3BP132SMC6 4KW B5 3GBP133322-BDB
M3BP132SMF6 5.5KW B5 3GBP133324-BDB
M3BP160MLA6 7.5KW B5 3GBP163031-BDG
M3BP160MLB6 11KW B5 3GBP163032-BDG
M3BP180MLA6 15KW B5 3GBP183031-BDG
M3BP200MLA6 18.5KW B5 3GBP203031-BDG
M3BP200MLB6 22KW B5 3GBP203032-BDG
M3BP225SMA6 30KW B5 3GBP223031-BDG
M3BP250SMA6 37KW B5 3GBP253031-BDG
M3BP280SMA6 45KW B5 3GBP283210-BDG
M3BP280SMB6 55KW B5 3GBP283220-BDG
M3BP315SMA6 75KW B5 3GBP313210-BDG
M3BP315SMB6 90KW B5 3GBP313220-BDG
M3BP315SMC6 110KW B5 3GBP313230-BDG
M3BP315MLA6 132KW B5 3GBP313410-BDG
M3BP355SMA6 160KW B5 3GBP353210-BDG
M3BP355SMB6 200KW B5 3GBP353220-BDG
M3BP355SMC6 250KW B5 3GBP353230-BDG
M3BP355MLB6 315KW B5 3GBP353420-BDG
M3BP355LKA6 355KW B5 3GBP353810-BDG
M3BP355LKB6 400KW B5 3GBP353820-BDG
M3BP400LA6 400KW B5 3GBP403510-BDG
M3BP400LKA6 400KW B5 3GBP403810-BDG
M3BP400LB6 450KW B5 3GBP403520-BDG
M3BP400LKB6 450KW B5 3GBP403820-BDG
M3BP400LC6 500KW B5 3GBP403530-BDG
M3BP400LKC6 500KW B5 3GBP403830-BDG
M3BP400LD6 560KW B5 3GBP403540-BDG
M3BP400LKD6 560KW B5 3GBP403840-BDG
1000r/min 6極，B3臥式安裝,高功率輸出設計
M3BP160MLC6 15KW B3 3GBP163033-ADG
M3BP180MLB6 18.5KW B3 3GBP183034-ADG
M3BP200MLC6 30KW B3 3GBP203033-ADG
M3BP225SMB6 37KW B3 3GBP223034-ADG
M3BP225SMC6 45KW B3 3GBP223033-ADG
M3BP250SMB6 45KW B3 3GBP253032-ADG
M3BP250SMC6 55KW B3 3GBP253033-ADG
M3BP280SMC6 75KW B3 3GBP283230-ADG
M3BP315LKA6 160KW B3 3GBP313810-ADG
M3BP315LKB6 180KW B3 3GBP313820-ADG
M3BP315LKC6 200KW B3 3GBP313830-ADG
1000r/min 6極，B5立式安裝,高功率輸出設計
M3BP160MLC6 15KW B5 3GBP163033-BDG
M3BP180MLB6 18.5KW B5 3GBP183034-BDG
M3BP200MLC6 30KW B5 3GBP203033-BDG
M3BP225SMB6 37KW B5 3GBP223034-BDG
M3BP225SMC6 45KW B5 3GBP223033-BDG
M3BP250SMB6 45KW B5 3GBP253032-BDG
M3BP250SMC6 55KW B5 3GBP253033-BDG
M3BP280SMC6 75KW B5 3GBP283230-BDG
M3BP315LKA6 160KW B5 3GBP313810-BDG
M3BP315LKB6 180KW B5 3GBP313820-BDG
M3BP315LKC6 200KW B5 3GBP313830-BDG
750r/min 8極，B3臥式安裝,標準設計
M3BP71MA8 0.09KW B3 3GBP074101-ASB
M3BP71MB8 0.12KW B3 3GBP074102-ASB
M3BP80MA8 0.18KW B3 3GBP084101-ASB
M3BP80MB8 0.25KW B3 3GBP084102-ASB
M3BP90SLB8 0.37KW B3 3GBP094102-ASB
M3BP90SLC8 0.55KW B3 3GBP094103-ASB
M3BP100LA8 0.75KW B3 3GBP104101-ASB
M3BP100LB8 1.1KW B3 3GBP104102-ASB
M3BP112M8 1.5KW B3 3GBP114101-ASB
M3BP132SMA8 2.2KW B3 3GBP134101-ASB
M3BP132SMB8 3KW B3 3GBP134102-ASB
M3BP160MLA8 4KW B3 3GBP164031-ADG
M3BP160MLB8 5.5KW B3 3GBP164032-ADG
M3BP160MLC8 7.5KW B3 3GBP164033-ADG
M3BP180MLA8 11KW B3 3GBP184031-ADG
M3BP200MLA8 15KW B3 3GBP204031-ADG
M3BP225SMA8 18.5KW B3 3GBP224031-ADG
M3BP225SMB8 22KW B3 3GBP224032-ADG
M3BP250SMA8 30KW B3 3GBP254031-ADG
M3BP280SMA8 37KW B3 3GBP284210-ADG
M3BP280SMB8 45KW B3 3GBP284220-ADG
M3BP315SMA8 55KW B3 3GBP314210-ADG
M3BP315SMB8 75KW B3 3GBP314220-ADG
M3BP315SMC8 90KW B3 3GBP314230-ADG
M3BP315MLA8 110KW B3 3GBP314410-ADG
M3BP355SMA8 132KW B3 3GBP354210-ADG
M3BP355SMB8 160KW B3 3GBP354220-ADG
M3BP355SMC8 200KW B3 3GBP354230-ADG
M3BP355MLB8 250KW B3 3GBP354420-ADG
M3BP355LKB8 315KW B3 3GBP354820-ADG
M3BP400LA8 315KW B3 3GBP404510-ADG
M3BP400LKA8 315KW B3 3GBP404810-ADG
M3BP400LB8 355KW B3 3GBP404520-ADG
M3BP400LKB8 355KW B3 3GBP404820-ADG
M3BP400LC8 400KW B3 3GBP404530-ADG
M3BP400LKC8 400KW B3 3GBP404830-ADG
750r/min 8極，B5立式安裝,標準設計
M3BP71MA8 0.09KW B5 3GBP074101-BSB
M3BP71MB8 0.12KW B5 3GBP074102-BSB
M3BP80MA8 0.18KW B5 3GBP084101-BSB
M3BP80MB8 0.25KW B5 3GBP084102-BSB
M3BP90SLB8 0.37KW B5 3GBP094102-BSB
M3BP90SLC8 0.55KW B5 3GBP094103-BSB
M3BP100LA8 0.75KW B5 3GBP104101-BSB
M3BP100LB8 1.1KW B5 3GBP104102-BSB
M3BP112M8 1.5KW B5 3GBP114101-BSB
M3BP132SMA8 2.2KW B5 3GBP134101-BSB
M3BP132SMB8 3KW B5 3GBP134102-BSB
M3BP160 MLA8 4KW B5 3GBP164031-BDG
M3BP160MLB8 5.5KW B5 3GBP164032-BDG
M3BP160MLC8 7.5KW B5 3GBP164033-BDG
M3BP180MLA8 11KW B5 3GBP184031-BDG
M3BP200MLA8 15KW B5 3GBP204031-BDG
M3BP225SMA8 18.5KW B5 3GBP224031-BDG
M3BP225SMB8 22KW B5 3GBP224032-BDG
M3BP250SMA8 30KW B5 3GBP254031-BDG
M3BP280SMA8 37KW B5 3GBP284210-BDG
M3BP280SMB8 45KW B5 3GBP284220-BDG
M3BP315SMA8 55KW B5 3GBP314210-BDG
M3BP315SMB8 75KW B5 3GBP314220-BDG
M3BP315SMC8 90KW B5 3GBP314230-BDG
M3BP315MLA8 110KW B5 3GBP314410-BDG
M3BP355SMA8 132KW B5 3GBP354210-BDG
M3BP355SMB8 160KW B5 3GBP354220-BDG
M3BP355SMC8 200KW B5 3GBP354230-BDG
M3BP355MLB8 250KW B5 3GBP354420-BDG
M3BP355LKB8 315KW B5 3GBP354820-BDG
M3BP400LA8 315KW B5 3GBP404510-BDG
M3BP400LKA8 315KW B5 3GBP404810-BDG
M3BP400LB8 355KW B5 3GBP404520-BDG
M3BP400LKB8 355KW B5 3GBP404820-BDG
M3BP400LC8 400KW B5 3GBP404530-BDG
M3BP400LKC8 400KW B5 3GBP404830-BDG
750r/min 8極，B3臥式安裝,高功率輸出設計
M3BP280SMC8 55KW B3 3GBP284230-ADG
M3BP315LKA8 132KW B3 3GBP314810-ADG
M3BP315LKB8 150KW B3 3GBP314820-ADG
M3BP315LKC8 160KW B3 3GBP314830-ADG
750r/min 8極，B5立式安裝,高功率輸出設計
M3BP280SMC8 55KW B5 3GBP284230-BDG
M3BP315LKA8 132KW B5 3GBP314810-BDG
M3BP315LKB8 150KW B5 3GBP314820-BDG
M3BP315LKC8 160KW B5 3GBP314830-BDG
