| 運轉速度 | 450-3000 |
|---|---|
| 用途 | 通用 |
| 電源相數 | 三相電動機 |
| 安裝結構型式 | 多種安裝方式 |
| 功能類型 | 三相異步電動機 |
| 防護型式 | IP44 IP54 IP55 |
| 絕緣等級 | F級 |
| 電源種類 | 交流電動機 |
| 結構與工作原理 | 感應電動機 |
| 工作原理 | 異步電動機 |
| 品牌 | 豫通 |
| 型號 | YB3系類通用型防爆電機 |
豫通為您提供終身的技術服務支持
我們擁有專業的工程師團隊建立了規模化的產品研發、咨詢、技術支持和服務體系,
并基于先進的機電安裝和項目管理模式,為客戶提供優質的使用體驗.
廠家直銷 歡迎咨詢
絕對的專業從事各類電機設備生產廠家，
可訂制各型號電動機
此款電機入圍“國家惠民補貼工程”

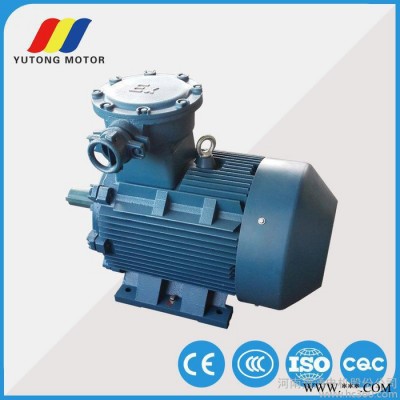

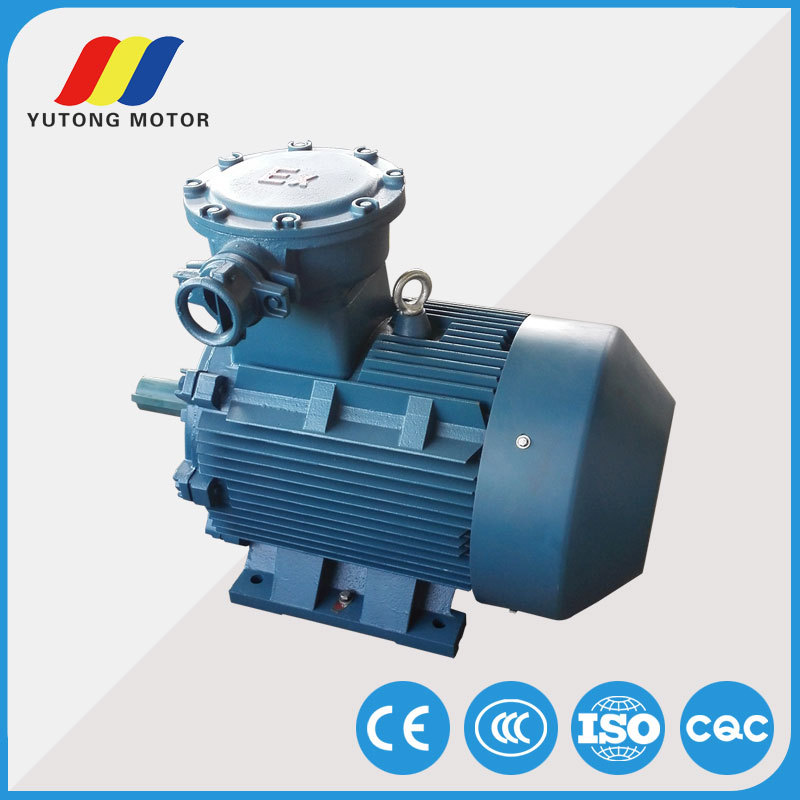

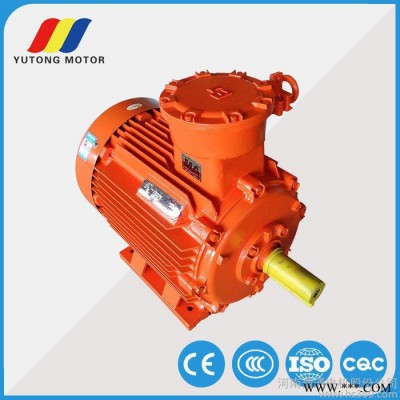

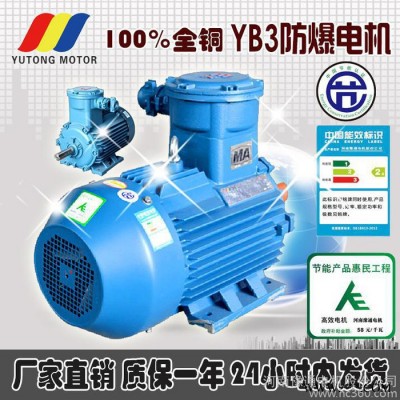

YB3G系列防爆三相感應電動機采用全密封,風冷,鼠籠式結構，具有效率高、噪音低、振動小、堵轉轉矩高、運行可靠和外形美觀的特點。
YB3電動機的節能效果符合GB18613 - 2012標準IE3能效。它是一種被大力推廣新型的防爆電動機。
主要用于油田、化工、隧道施工及煤礦非開采面等有爆炸危險的環境。
YB3G電動機符合GB3836.1 – 2000《爆炸性環境 第一部分:設備通用要求》和
GB3836.2 – 2010《爆炸性環境 第2部分：由隔爆外殼“d”保護的設備》。
防爆標志為：EXdⅠMb;EXdⅡAT4 Gb;EXd BT4 Gb
防護等級:IP55,
冷卻方法:IC411,
絕緣等級:F
工作方式:S1
電壓:380v、660v、1140v和380v/660v,660v/1140v
YB3系列隔爆型三相異步電動機
YB3 series flameproof three-phase asynchronous motor
性能數據Performance Data 380V 50Hz
型 號 | 功率 | 額定 | 轉速 | 效率 | 功率 | 額定 | 堵轉轉矩 | 最大轉矩 | 堵轉電流 | 噪聲 | 重量 |
2極—同步轉速 3000 r/min | |||||||||||
YB3-80M1-2G | 0.75 | 1.7 | 2855 | 80.7 | 0.82 | 2.5 | 2.3 | 2.3 | 7.0 | 64 | 19 |
YB3-80M2-2G | 1.1 | 2.4 | 82.7 | 0.83 | 3.7 | 2.2 | 7.3 | 22 | |||
YB3-90S-2G | 1.5 | 3.2 | 2875 | 84.2 | 0.84 | 5.0 | 7.6 | 69 | 30 | ||
YB3-90L-2G | 2.2 | 4.5 | 2875 | 85.9 | 0.85 | 7.3 | 36 | ||||
Y YB3-100L-2G | 3 | 6.0 | 2880 | 87.1 | 0.87 | 9.9 | 7.8 | 76 | 45 | ||
YB3-112M-2G | 4 | 7.8 | 2900 | 88.1 | 0.88 | 13.2 | 8.3 | 79 | 58 | ||
YB3-132S1-2G | 5.5 | 10.6 | 2900 | 89.2 | 18.1 | 2.0 | 81 | 75 | |||
YB3-132S2-2G | 7.5 | 14.4 | 2900 | 90.1 | 24.7 | 7.9 | 84 | ||||
YB3-160M1-2G | 11 | 20.6 | 2940 | 91.2 | 0.89 | 35.7 | 8.1 | 83 | 147 | ||
YB3-160M2-2G | 15 | 27.9 | 2940 | 91.9 | 48.7 | 166 | |||||
YB3-160L-2G | 18.5 | 34.2 | 2940 | 92.4 | 60.1 | 8.2 | 183 | ||||
YB3-180M-2G | 22 | 40.5 | 2955 | 92.7 | 71.1 | 85 | 235 | ||||
YB3-200L1-2G | 30 | 54.9 | 2965 | 93.3 | 96.6 | 7.6 | 84 | 298 | |||
YB3-200L2-2G | 37 | 67.4 | 2965 | 93.7 | 119.2 | 325 | |||||
YB3-225M-2G | 45 | 80.8 | 2970 | 94.0 | 0.90 | 144.7 | 7.7 | 88 | 379 | ||
YB3-250M-2G | 55 | 98.5 | 2975 | 94.3 | 176.6 | 91 | 483 | ||||
YB3-280S-2G | 75 | 133.7 | 2975 | 94.7 | 240.8 | 1.8 | 7.1 | 93 | 629 | ||
YB3-280M-2G | 90 | 159.9 | 2975 | 95.0 | 288.9 | 705 | |||||
YB3-315S-2G | 110 | 195.1 | 2980 | 95.2 | 352.5 | 94 | 1040 | ||||
YB3-315M-2G | 132 | 233.6 | 2990 | 95.4 | 423.0 | 1140 | |||||
YB3-315L-2G | 160 | 279.4 | 2990 | 95.6 | 0.91 | 512.8 | 7.2 | 1293 | |||
YB3-315L2-2G | 200 | 348.6 | 2980 | 95.8 | 640.9 | 2.2 | 1358 | ||||
YB3-355M2-2G | 250 | 435.7 | 2980 | 95.8 | 801.2 | 1.6 | 102 | 1802 | |||
YB3-355L2-2G | 315 | 549.0 | 2980 | 95.8 | 1009.5 | 2017 | |||||
性能數據Performance Data 380V 50Hz
型 號 | 功率 | 額定 | 轉速 | 效率 | 功率 | 額定 | 堵轉轉矩 | 最大轉矩 | 堵轉電流 | 噪聲 | 重量 |
4極—同步轉速1500 r/min | |||||||||||
YB3-80M2-4G | 0.75 | 1.8 | 1400 | 82.5 | 0.75 | 5.1 | 2.3 | 2.3 | 6.6 | 61 | 24 |
YB3-90S-4G | 1.1 | 2.6 | 1425 | 84.1 | 0.76 | 7.4 | 6.8 | 64 | 32 | ||
YB3-90L-4G | 1.5 | 3.5 | 1425 | 85.3 | 0.77 | 10.1 | 7.0 | 39 | |||
YB3-100L1-4G | 2.2 | 4.8 | 1440 | 86.7 | 0.81 | 14.6 | 7.6 | 69 | 49 | ||
YB3-100L2-4G | 3 | 6.3 | 1440 | 87.7 | 0.82 | 19.9 | 56 | ||||
YB3-112M-4G | 4 | 8.4 | 1450 | 88.6 | 26.3 | 2.2 | 7.8 | 70 | 73 | ||
YB3-132S-4G | 5.5 | 11.2 | 1455 | 89.6 | 0.83 | 36.1 | 2.0 | 7.9 | 76 | 88 | |
YB3-132M-4G | 7.5 | 15.0 | 1455 | 90.4 | 0.84 | 49.2 | 7.5 | 108 | |||
YB3-160M-4G | 11 | 21.5 | 1465 | 91.4 | 0.85 | 71.7 | 2.2 | 7.7 | 78 | 150 | |
YB3-160L-4G | 15 | 28.8 | 1465 | 92.1 | 0.86 | 97.8 | 7.8 | 180 | |||
YB3-180M-4G | 18.5 | 35.3 | 1470 | 92.6 | 120.2 | 2.0 | 80 | 221 | |||
YB3-180L-4G | 22 | 41.8 | 1475 | 93.0 | 142.4 | 255 | |||||
YB3-200L-4G | 30 | 56.6 | 1475 | 93.6 | 194.2 | 7.3 | 325 | ||||
YB3-225S-4G | 37 | 69.6 | 1480 | 93.9 | 238.8 | 7.4 | 81 | 380 | |||
YB3-225M-4G | 45 | 84.4 | 1480 | 94.2 | 290.4 | 419 | |||||
YB3-250M-4G | 55 | 102.7 | 1480 | 94.6 | 354.9 | 2.2 | 82 | 517 | |||
YB3-280S-4G | 75 | 136..3 | 1485 | 95.0 | 0.88 | 482.3 | 2.0 | 6.9 | 83 | 688 | |
YB3-280M-4G | 90 | 163.2 | 1485 | 95.2 | 578.8 | 801 | |||||
YB3-315S-4G | 110 | 196.8 | 1485 | 95.4 | 0.89 | 707.4 | 2.2 | 7.0 | 91 | 1049 | |
YB3-315M-4G | 132 | 235.7 | 1485 | 95.6 | 848.9 | 1160 | |||||
YB3-315L-4G | 160 | 285.1 | 1485 | 95.8 | 1029.0 | 7.1 | 1269 | ||||
YB3-315L2-4G | 200 | 351.7 | 1485 | 96.0 | 0.90 | 1286.2 | 1521 | ||||
YB3-355M2-4G | 250 | 439.6 | 1490 | 96.0 | 1602.3 | 97 | 1815 | ||||
YB3-355L2-4G | 315 | 553.9 | 1490 | 96.0 | 2018.9 | 1984 | |||||
同步轉速1000 r/min | |||||||||||
性能數據Performance Data 380V 50Hz
型 號 | 功率 | 額定 | 轉速 | 效率 | 功率 | 額定 | 堵轉轉矩 | 最大轉矩 | 堵轉電流 | 噪聲 | 重量 |
6極—同步轉速 1000 r/min | |||||||||||
YB3-90S-6G | 0.75 | 2.0 | 935 | 78.9 | 0.71 | 7.7 | 2.0 | 2.1 | 6.0 | 64 | 32 |
YB3-90L-6G | 1.1 | 2.8 | 940 | 81.0 | 0.73 | 11.2 | 40 | ||||
YB3-100L-6G | 1.5 | 3.8 | 945 | 82.5 | 15.2 | 6.5 | 68 | 47 | |||
YB3-112M-6G | 2.2 | 5.4 | 950 | 84.3 | 0.74 | 22.1 | 6.6 | 72 | 63 | ||
YB3-132S-6G | 3 | 7.2 | 960 | 85.6 | 29.8 | 6.8 | 76 | 75 | |||
YB3-132M1-6G | 4 | 9.5 | 960 | 86.8 | 39.8 | 92 | |||||
YB3-132M2-6G | 5.5 | 12.7 | 960 | 88.0 | 0.75 | 54.7 | 7.0 | 108 | |||
YB3-160M-6G | 7.5 | 16.2 | 970 | 89.1 | 0.79 | 73.8 | 80 | 144 | |||
YB3-160L-6G | 11 | 23.1 | 970 | 90.3 | 0.80 | 108.3 | 7.2 | 178 | |||
YB3-180L-6G | 15 | 30.9 | 975 | 91.2 | 0.81 | 146.9 | 7.3 | 79 | 227 | ||
YB3-200L1-6G | 18.5 | 37.8 | 975 | 91.7 | 181.2 | 294 | |||||
YB3-200L2-6G | 22 | 44.8 | 975 | 92.2 | 215.5 | 7.4 | 316 | ||||
YB3-225M-6G | 30 | 59.1 | 985 | 92.9 | 0.83 | 290.9 | 6.9 | 80 | 357 | ||
YB3-250M-6G | 37 | 71.7 | 985 | 93.3 | 0.84 | 358.7 | 7.1 | 82 | 496 | ||
YB3-280S-6G | 45 | 85.8 | 985 | 93.7 | 0.85 | 436.3 | `2.0 | 7.3 | 84 | 613 | |
YB3-280M-6G | 55 | 103.3 | 985 | 94.1 | 0.86 | 533.2 | 693 | ||||
YB3-315S-6G | 75 | 143.4 | 990 | 94.6 | 0.84 | 723.5 | 6.6 | 88 | 1049 | ||
YB3-315M-6G | 90 | 169.5 | 990 | 94.9 | 0.85 | 868.2 | 6.7 | 1215 | |||
YB3-315L1-6G | 110 | 206.8 | 990 | 95.1 | 1061.1 | 1302 | |||||
YB3-315L2-6G | 132 | 244.5 | 990 | 95.4 | 0.86 | 1273.3 | 6.8 | 1455 | |||
YB3-355S-6G | 160 | 295.7 | 990 | 95.6 | 1543.4 | 1.8 | 89 | 1709 | |||
YB3-355M2-6G | 200 | 364.6 | 990 | 95.8 | 0.87 | 1929.3 | 1945 | ||||
YB3-355L2-6G | 250 | 455.7 | 990 | 95.8 | 2411.6 | 2092 | |||||
