| 功率 | 37.5 |
|---|---|
| 額定電壓 | 220-380 |
| 速度響應(yīng)頻率 | 40-60 |
| 品牌 | 晟昌 |
| 型號 | SVM-160S |
產(chǎn)品說明：

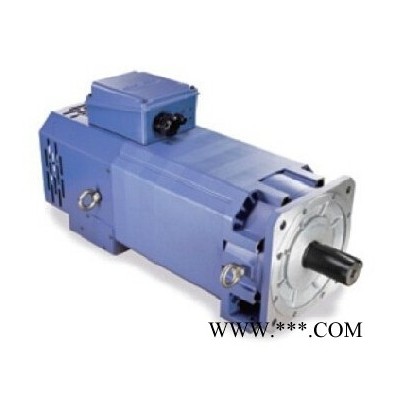

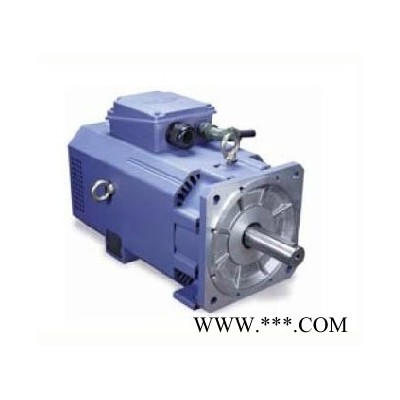

| Motor | SVM-160S | SVM-160M | SVM-160L |
| Rated voltage UN | 220/380 | 220/380 | 220/380 |
| Rated Power output PN | 37.5 kw | 45 kw | 50 kw |
| Rated speed NN | 1500 rpm | ||
| Rated torque MN | 236.67 Nm | 284 Nm | 315.5 Nm |
| Rated current IN | 129.45/74.7 | 155.4/89.7 | 171.8/99.2 |
| Efficiency | 0.92 | ||
| Max speed Nmax | 4000 rpm | ||
| Max current Imax | 191.5/110.5 A | 233.1/134.55 A | 252.1/144 A |
| Weight | 240 kg | 265 kg | 282 kg |
| Rated inertia J | 1860 kg/㎝2 | 2300 kg/㎝2 | 2560 kg/㎝2 |
| Protection | IP54 | ||
| Fan | 1Φ220 V | ||
