| 功率 | 15 |
|---|---|
| 額定電壓 | 220-380 |
| 速度響應(yīng)頻率 | 50-60 |
| 品牌 | 晟昌 |

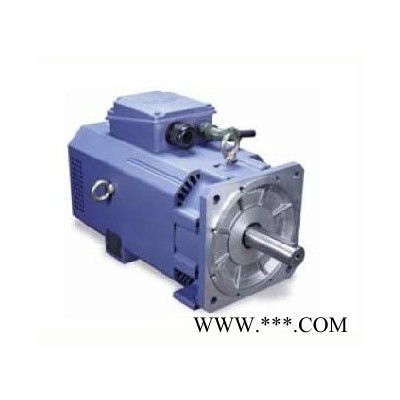

| 型號(hào) | SVM-132S |
產(chǎn)品說明：
| Motor | Rated speed | Rated power in duty type in accordance | Rated torque | Rated current for duty type | Rated Power for duty type | Moment of inertia | Weight | |||
| Mrated | M2 | Irated [220/380v] | ||||||||
| S1 | S6~60% | S1 | S6~60% | S1 | S6~60% | J | W | |||
| TYPE | rpm | rpm | rpm | Nm | A | A | KW | KW | kg㎡ | kg |
| SVM-132S-10 | 1000 | 4000 | 4000 | 104.13 | 37/21.36 | 50.08/28.9 | 11 | 15 | 0.065 | 105 |
| SVM-132S-15 | 1500 | 6000 | 6000 | 94.66 | 50.08/28.9 | 62.2/35.9 | 15 | 18.5 | 0.065 | 105 |
| SVM-132S-20 | 2000 | 6000 | 6000 | 87.56 | 62.2/35.9 | 74/42.7 | 18.5 | 22 | 0.065 | 105 |
| SVM-132M-10 | 1000 | 4000 | 4000 | 142.00 | 50.08/28.9 | 62.2/35.9 | 15 | 18.5 | 0.077 | 120 |
| SVM-132M-15 | 1500 | 6000 | 6000 | 116.70 | 62.2/35.9 | 74/42.7 | 18.5 | 22 | 0.077 | 120 |
| SVM-132M-20 | 2000 | 6000 | 6000 | 104.13 | 74/42.7 | 101/58.3 | 22 | 30 | 0.077 | 120 |
| SVM-132L-10 | 1000 | 4000 | 4000 | 175.10 | 62.2/35.9 | 74/42.7 | 18.5 | 22 | 0.101 | 152 |
| SVM-132L-15 | 1500 | 6000 | 6000 | 138.80 | 74/42.7 | 101/58.3 | 22 | 30 | 0.101 | 152 |
| SVM-132L-20 | 2000 | 6000 | 6000 | 142.00 | 101/58.3 | 126/72.8 | 30 | 37.5 | 0.101 | 152 |
| SVM-132X-10 | 1000 | 4000 | 4000 | 208.26 | 74/42.7 | 101/58.3 | 22 | 30 | 0.126 | 178 |
| SVM-132X-15 | 1500 | 4500 | 4500 | 189.33 | 101/58.3 | 126/72.8 | 30 | 37.5 | 0.126 | 178 |
| SVM-132X-20 | 2000 | 4500 | 4500 | 177.50 | 126.1/72.8 | 151.4/87.4 | 37.5 | 45 | 0.126 | 178 |
