| 材質 | 橡膠 |
| 類型 | 密封圈 |
| 使用溫度 | 20-250 |
| 使用壓力 | 1.5 |
| 適用范圍 | 電器 |
| 性質 | 耐高溫,耐高壓 |
| 作用 | 孔用密封 |
| 是否標準件 | 標準件 |
| 樣品或現貨 | 現貨 |
| 是否進口 | 否 |
| 截面形狀 | U型 |
| 品牌 | 高宏 |
| 型號 | 502 |
| 加工定制 | 是 |

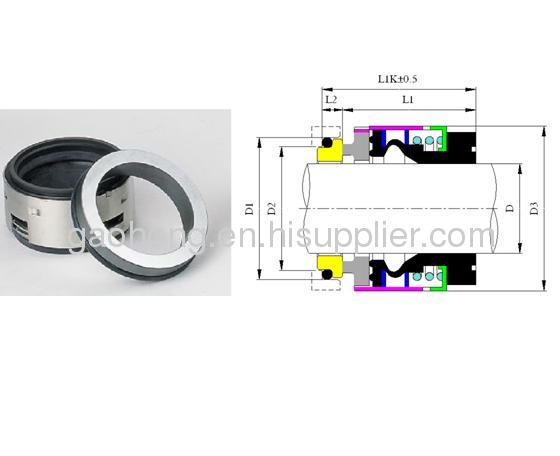

標準規格尺寸:GH502
GAOHONG STANDARD SIZES
| Shaft size D | Size code | D1 | D2 | D3 | L1 | L2 | L1K |
| 14 | 0140 | 25.0 | 21.0 | 24.0 | 23.0 | 12.0 | 35.0 |
| 16 | 0160 | 27.0 | 23.0 | 26.0 | 23.0 | 12.0 | 35.0 |
| 18 | 0180 | 33.0 | 27.0 | 32.0 | 24.0 | 13.5 | 37.5 |
| 20 | 0200 | 35.0 | 29.0 | 34.0 | 24.0 | 13.5 | 37.5 |
| 22 | 0220 | 37.0 | 31.0 | 36.0 | 24.0 | 13.5 | 37.5 |
| 24 | 0240 | 39.0 | 33.0 | 38.0 | 26.7 | 13.3 | 40.0 |
| 25 | 0250 | 40.0 | 34.0 | 39.0 | 27.0 | 13.0 | 40.0 |
| 28 | 0280 | 43.0 | 37.0 | 42.0 | 30.0 | 12.5 | 42.5 |
| 30 | 0300 | 45.0 | 39.0 | 44.0 | 30.5 | 12.0 | 42.5 |
| 32 | 0320 | 48.0 | 42.0 | 46.0 | 30.5 | 12.0 | 42.5 |
| 33 | 0330 | 48.0 | 42.0 | 47.0 | 30.5 | 12.0 | 42.5 |
| 35 | 0350 | 50.0 | 44.0 | 49.0 | 30.5 | 12.0 | 42.5 |
| 38 | 0380 | 56.0 | 49.0 | 54.0 | 32.0 | 13.0 | 45.0 |
| 40 | 0400 | 58.0 | 51.0 | 56.0 | 32.0 | 13.0 | 45.0 |
| 43 | 0430 | 61.0 | 54.0 | 59.0 | 32.0 | 13.0 | 45.0 |
| 45 | 0450 | 63.0 | 56.0 | 61.0 | 32.0 | 13.0 | 45.0 |
| 48 | 0480 | 66.0 | 59.0 | 64.0 | 32.0 | 13.0 | 45.0 |
| 50 | 0500 | 70.0 | 62.0 | 66.0 | 34.0 | 13.5 | 47.5 |
| 53 | 0530 | 73.0 | 65.0 | 69.0 | 34.0 | 13.5 | 47.5 |
| 55 | 0550 | 75.0 | 67.0 | 71.0 | 34.0 | 13.5 | 47.5 |
| 58 | 0580 | 78.0 | 70.0 | 78.0 | 39.0 | 13.5 | 52.5 |
| 60 | 0600 | 80.0 | 72.0 | 80.0 | 39.0 | 13.5 | 52.5 |
| 63 | 0630 | 83.0 | 75.0 | 83.0 | 39.0 | 13.5 | 52.5 |
| 65 | 0650 | 85.0 | 77.0 | 85.0 | 39.0 | 13.5 | 52.5 |
| 68 | 0680 | 90.0 | 81.0 | 88.0 | 39.0 | 13.5 | 52.5 |
| 70 | 0700 | 92.0 | 83.0 | 89.0 | 45.5 | 14.5 | 60.0 |
| 75 | 0750 | 97.0 | 88.0 | 96.0 | 45.5 | 14.5 | 60.0 |
| 80 | 0800 | 105.0 | 95.0 | 104.0 | 45.0 | 15.0 | 60.0 |
| 85 | 0850 | 110.0 | 100.0 | 108.0 | 45.0 | 15.0 | 60.0 |
| 90 | 0900 | 115.0 | 105.0 | 114.0 | 50.0 | 15.0 | 65.0 |
| 95 | 0950 | 120.0 | 110.0 | 118.0 | 50.0 | 15.0 | 65.0 |
| 100 | 1000 | 125.0 | 115.0 | 124.0 | 50.0 | 15.0 | 65.0 |
