| 外形尺寸 | 200CM*170CM*150CM |
|---|---|
| 種類 | 折彎機 |
| 重量 | 350KG |
| 品牌 | 德力焊接設備有限公司 |
| 型號 | ST-EFM |
| 加工定制 | 是 |

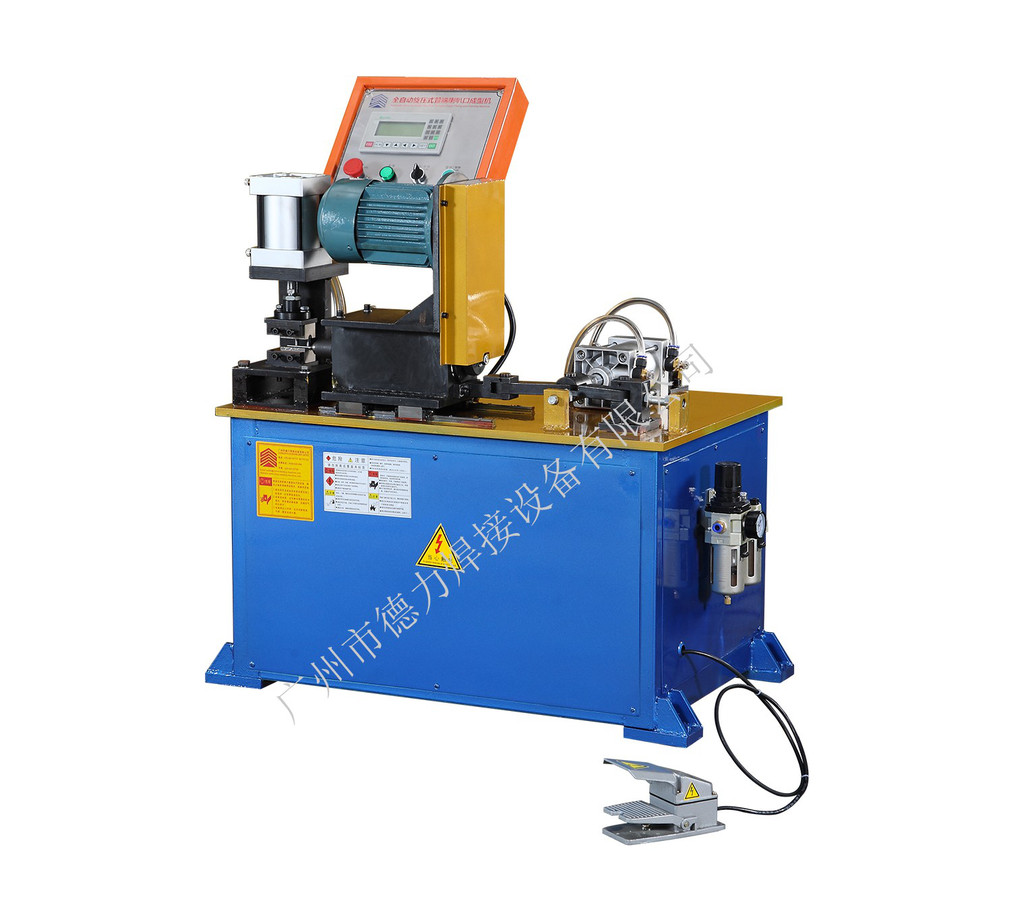

ST-EFM Series Spinning Type Automatic Pipe End FlaringMachine
ST-EFM系列旋壓式全自動管端喇叭口成型機
主要功能及應用
喇叭口常用于冷凝器、蒸發器的管道連接以及焊接。
喇叭口制作應大小適宜，過大會開裂，過小接觸面不夠，要求喇叭口均勻、光滑、無劃痕、無毛刺。
管端喇叭口成型機主要利用旋壓的方式，將銅管或者鋁管的管端加工成喇叭口形狀，高速旋壓擴口，與機械式鍛打擴口相比，開口處光滑，平整，無破裂。
MainCharacteristics and Applications
Trumpet Tube End is often used in the pipeconnecting and welding of the condenser and evaporator.
As to the flaring shape,the size should beproper,too big size will cause crack, too small size leads to insufficientcontact area,it should be uniform, smooth, no scratches, no burr.
Automatic Pipe End Flaring Machine is mainlyused for machining the copper or aluminum pipe end into flaring shape by highspeed spinning and pressing way,compared with the mechanical forging way,thetube end will be much more smooth, flat, no rupture.
主要技術參數
MainTechnical Parameters
| 銅管與鋁管的加工直徑 Copper & Al Pipe Diameter | 3-35MM |
| 銅管與鋁管的加工長度 Copper & Al Pipe Length | ≥100MM |
| 固定與驅動方式Driving Mode | 氣動+電動 Pneumatic or Electrical |
| 加工方式Processing Mode | 冷鐓+旋壓 Cold-forging+Spinning |
| 生產加工效率 Producing and Processing Efficiency | 1-5秒/件 1-5Seconds/PC |
| 輸入電壓Input Voltage | 220V / 380V / 440V / 480V, 50/60Hz |
| 設備重量Machine Weight | 350KG |
