| 頭型 | 扁圓頭 |
|---|---|
| 材質 | 鋁、鐵、不銹鋼、銅、鋼 |
| 作用方式 | 壓鉚 |
| 應用范圍 | 機械設備 |
| 等級 | A級 |
| 螺紋規格 | M3-M10 |
| 品牌 | 穎錸 |
| 型號 | M3*20 |

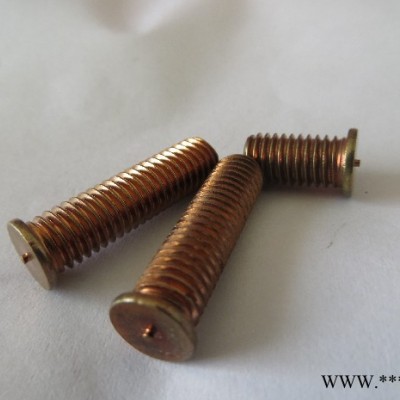

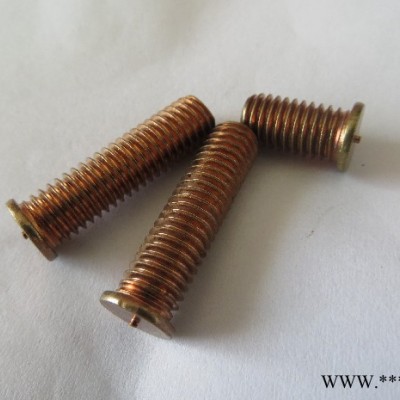

銅焊釘/點焊種焊螺絲 銅種焊釘/點焊種焊螺絲
| 螺紋規格 Thread Size ×Pitch | 材質型號 Type | 長度 L ±0.4 | 最小鈑厚 Sheet Thickness Min. | C Max. | 頭徑 E ±0.4 | S Max. | 鈑孔尺寸 Hole Size +0.08 | ||||||||||
| Steel | Stainless Steel | ||||||||||||||||
| M2.5×0.45 | FH | FHS | 6 | 8 | 10 | 12 | 15 | 18 | / | / | / | / | 1.0 | 0.64 | 4.1 | 1.95 | 2.5 |
| M3×0.5 | FH | FHS | 6 | 8 | 10 | 12 | 15 | 18 | 20 | 25 | / | / | 1.0 | 0.64 | 4.6 | 2.1 | 3.0 |
| M4×0.7 | FH | FHS | 6 | 8 | 10 | 12 | 15 | 18 | 20 | 25 | 30 | / | 1.0 | 0.64 | 5.9 | 2.4 | 4.0 |
| M5×0.8 | FH | FHS | / | 8 | 10 | 12 | 15 | 18 | 20 | 25 | 30 | 35 | 1.0 | 0.64 | 6.5 | 2.7 | 5.0 |
| M6×1.0 | FH | FHS | / | / | 10 | 12 | 15 | 18 | 20 | 25 | 30 | 35 | 1.6 | 0.64 | 8.2 | 3 | 6.0 |
| M8×1.25 | FH | FHS | / | / | / | 12 | 15 | 18 | 20 | 25 | 30 | 35 | 2.4 | 0.8 | 9.6 | 3.7 | 8.0 |
| M10×1.5 | FH | FHS | / | / | / | / | 15 | 18 | 20 | 25 | 30 | 35 | 3.0 | 1.2 | 11.6 | 4.2 | 10.0 |
