| 品牌 | 鑫源 |
|---|
應用范圍
RANGE OF APPLICATION

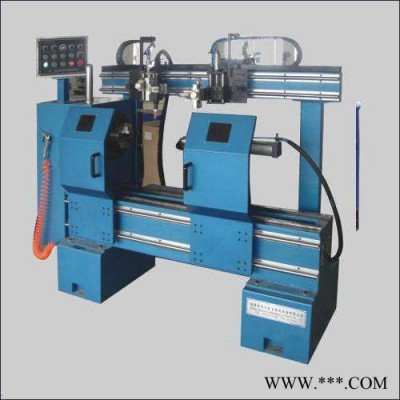

JHW系列臥式環縫焊接機床主要適用于碳鋼、不銹鋼及其它金屬工件的環形焊縫焊接。其可焊接類似工件外觀如儲氣筒、熱水器、消防筒、傳動軸、減震器、消聲器、容器罐、管管對接、管法蘭、管彎頭三通等環峰焊接。
The JHW series of horizontal Girth seam welding machine tools are mainly suitable for ring weld welding of carbon steel, stainless steel and other metal workpieces. It can be welded similar to the appearance of the workpiece such as gas storage tube, water heater, fire tube, transmission shaft, shock absorber, muffler, container tank, tube butt, tube flange, pipe bend three pass and other ring peak welding.
產品特點
Product characteristics
◎JHW系列環縫自動曝光焊接機床是一臺實現環縫自動焊接設備。可配用氬弧焊機（填絲或不填絲）、熔化極氣體保護焊機（CO2/MAG/MIG焊機）、等離子焊機等焊接電源組成一套環縫自動焊接系統；
The JHW Series Girth seam automatic exposure welding machine tool is an automatic welding device for the ring seam. Can be equipped with argon arc welding machine(filling or non-filling), melting gas protection welding machine(CO2 / MAG/MIG welding machine), plasma welding machine and other welding power to form a ring seam automatic welding system
◎該產品一般主要由床身、主傳動箱、托架、尾座、焊炬移動機構、焊炬升降機構、多維調槍器和弧焊控制系統等等組成；
The product is mainly composed of bed body, main transmission box, bracket, tail seat, torch moving mechanism, torch lifting mechanism, multi-dimensional gun regulator and arc welding control system
◎先進的控制系統，人性化的人機操作界面，自動化程度高，性能穩定可靠
Advanced control system, Humanized human-machine interface, high degree of automation, stable and reliable performance
| 設備型號 | GCW-500 | GCW-1000 | GCW-1500 | GCW-2000 | GCW-2500 | GCW-3000 | GCW-500 |
| 設備控制電源 | one-phase 50Hz AC220V | ||||||
| 焊接電源 | three phase 50Hz AC380V | ||||||
| 焊接形式 | TIG、MIG/MAG、SAW | ||||||
| 焊炬數量 | a set | ||||||
| 焊接工件厚度 | Weldable range：a certain range of a few to several tens of millimeters. | ||||||
| 焊接工件直徑 | processing range：a certain range of several tens of millimeters to more than one meter | ||||||
| 焊接工件長度 | ≤500 | ≤1000 | ≤1500 | ≤2000 | ≤2500 | ≤3000 | ≤5000 |
