| 適用行業 | 化工 |
|---|---|
| 產品別名 | 振動電機 |
| 用途 | 生產線 |
| 包裝類型 | 箱 |
| 規格 | 18L-20L |
| 電壓 | 380V |
| 功率 | 0.55 |
| 品牌 | 濱河 |

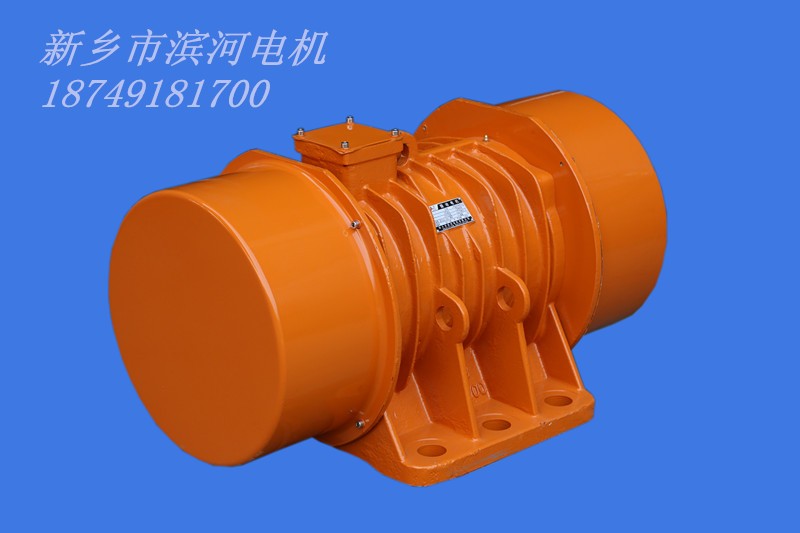

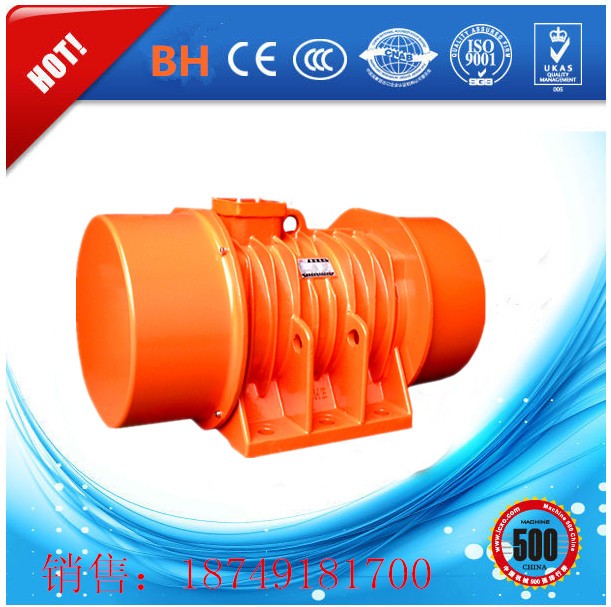

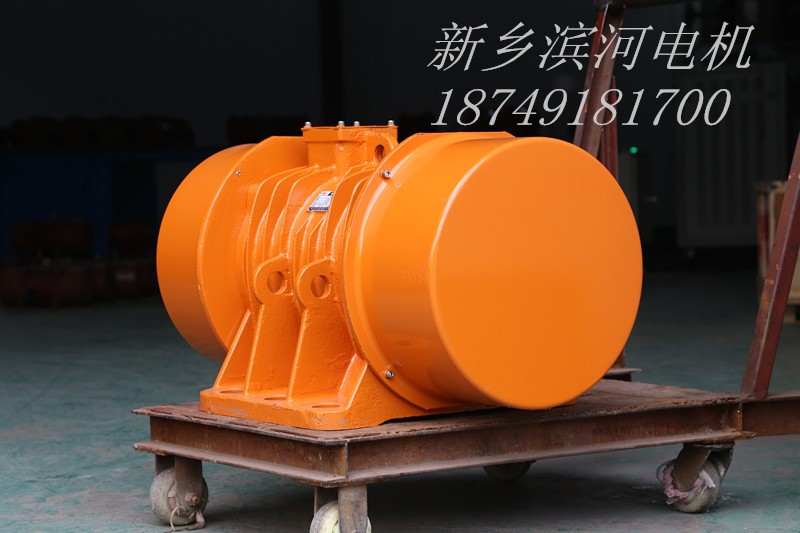

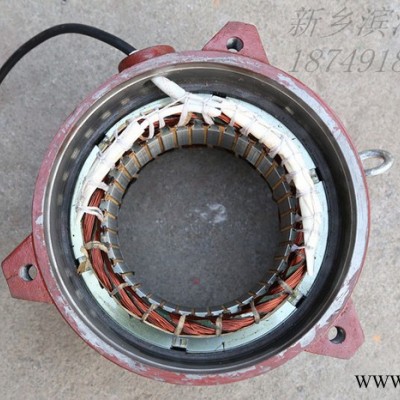

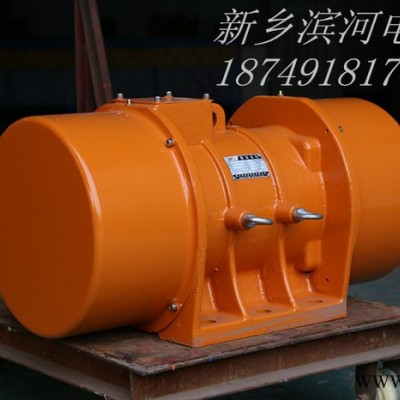

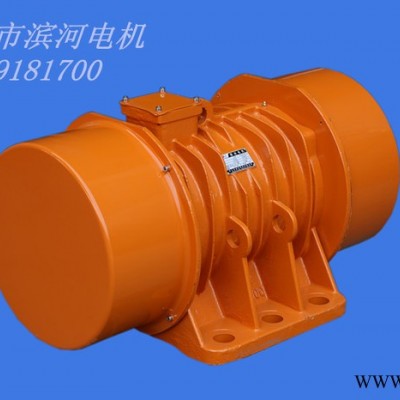

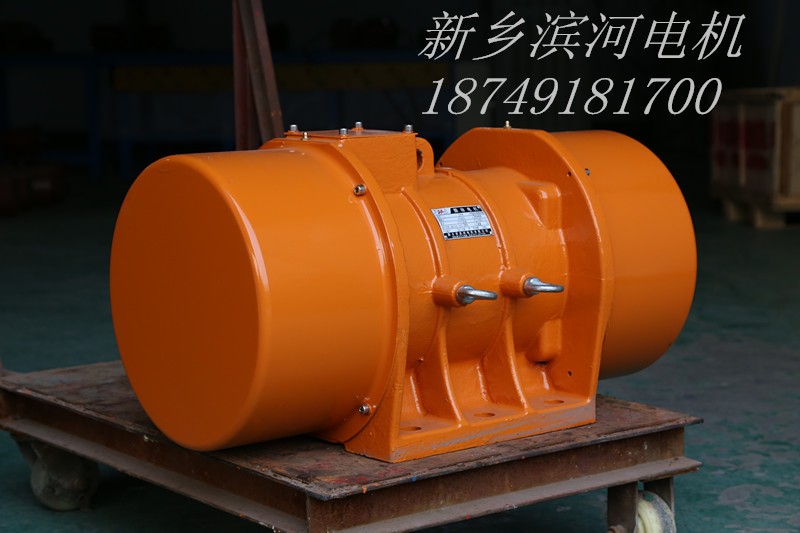

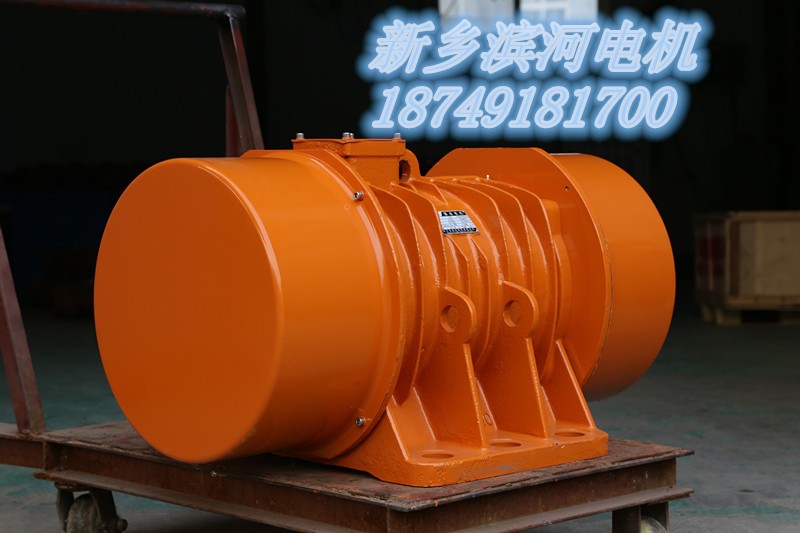

新鄉市濱河振動電機有限公司生產的YZH系列振動電機，采用先進的機械設備，引進國外的先進真空浸漆設備，讓電機的銅線圈在設備爐里先把空氣抽干，然后再注入漆，讓每一個漆包線都浸上漆，這樣電機的壽命會增加很長。淘汰了以前傳統的浸漆方式，使電機的質量上了一個臺階！
| 型號 Type | 最大激振力 CF(KN) | 額定功率(Kw) | 額定電流 （A） | 轉 速(r/min) | 安裝尺寸 | 外型尺寸 | 重量(KG) | |||||||||
| A | B | H | N-Φd | AB | BB | HD | G | L | ||||||||
| 1.5-2 | 1.5 | 0.12 | 0.35 | 2880 | 80 | 130 | 80 | 4-Φ12 | 170 | 118 | 200 | 19 | 245 | 13 | ||
| 2.5-2 | 2.5 | 0.22 | 0.5 | 80 | 130 | 80 | 4-Φ12 | 170 | 118 | 200 | 19 | 245 | 13 | |||
| 3-2 | 3.0 | 0.25 | 0.58 | 90 | 150 | 90 | 4-Φ14 | 185 | 124 | 220 | 21 | 270 | 18 | |||
| 5-2 | 5.0 | 0.37 | 0.9 | 90 | 150 | 90 | 4-Φ14 | 185 | 124 | 220 | 21 | 270 | 19 | |||
| 10-2 | 10 | 0.75 | 1.8 | 110 | 180 | 112 | 4-Φ18 | 225 | 155 | 238 | 27 | 335 | 30.5 | |||
| 15-2 | 15 | 1.1 | 2.6 | 140 | 220 | 125 | 4-Φ22 | 272 | 190 | 265 | 32 | 385 | 47 | |||
| 20-2 | 20 | 1.5 | 3.6 | 150 | 260 | 140 | 4-Φ26 | 344 | 234 | 320 | 42 | 452 | 91 | |||
| 30-2 | 30 | 2.2 | 5.4 | 170 | 310 | 170 | 4-Φ33 | 400 | 270 | 365 | 35 | 520 | 125 | |||
| 1.0-4 | 1.0 | 0.09 | 0.28 | 1460 | 80 | 130 | 80 | 4-Φ12 | 170 | 118 | 200 | 19 | 245 | 13 | ||
| 1.5-4 | 1.5 | 0.12 | 0.4 | 80 | 130 | 80 | 4-Φ12 | 170 | 118 | 200 | 19 | 245 | 13 | |||
| 3-4 | 3.0 | 0.18 | 0.5 | 90 | 150 | 90 | 4-Φ14 | 185 | 124 | 220 | 21 | 270 | 20 | |||
| 5-4 | 5.0 | 0.25 | 0.7 | 110 | 180 | 112 | 4-Φ18 | 225 | 155 | 238 | 27 | 335 | 32 | |||
| 8-4 | 8 | 0.4 | 1.2 | 110 | 180 | 112 | 4-Φ18 | 225 | 155 | 238 | 27 | 380 | 42 | |||
| 10-4 | 10 | 0.55 | 1.6 | 140 | 220 | 125 | 4-Φ22 | 272 | 190 | 265 | 32 | 385 | 50 | |||
| 15-4 | 15 | 0.75 | 1.9 | 150 | 260 | 140 | 4-Φ26 | 344 | 234 | 320 | 42 | 452 | 92 | |||
| 20-4 | 20 | 1.1 | 2.8 | 150 | 260 | 140 | 4-Φ26 | 344 | 234 | 320 | 42 | 452 | 93 | |||
| 30-4 | 30 | 1.5 | 3.8 | 170 | 310 | 170 | 4-Φ33 | 400 | 270 | 365 | 35 | 520 | 117 | |||
| 50-4 | 50 | 2.2 | 5.5 | 220 | 350 | 200 | 4-Φ39 | 450 | 313 | 425 | 45 | 600 | 213 | |||
| 75-4 | 75 | 3.7 | 9.5 | 250 | 380 | 210 | 4-Φ39 | 480 | 350 | 465 | 40 | 670 | 305 | |||
| 100-4 | 100 | 6.3 | 15 | 280 | 440 | 260 | 6-Φ45 | 530 | 435 | 520 | 65 | 750 | 432 | |||
| 3-6 | 3 | 0.25 | 0.75 | 980 | 110 | 180 | 112 | 4-Φ18 | 225 | 155 | 238 | 27 | 335 | 35 | ||
| 5-6 | 5 | 0.37 | 1.2 | 140 | 220 | 125 | 4-Φ22 | 272 | 190 | 265 | 32 | 385 | 51 | |||
| 8-6 | 8 | 0.55 | 1.7 | 140 | 220 | 125 | 4-Φ22 | 272 | 190 | 265 | 32 | 385 | 65 | |||
| 10-6 | 10 | 0.75 | 2.2 | 150 | 260 | 140 | 4-Φ26 | 344 | 234 | 320 | 42 | 452 | 98 | |||
| 15-6 | 15 | 1.1 | 3.2 | 150 | 260 | 140 | 4-Φ26 | 344 | 234 | 320 | 42 | 552 | 98 | |||
| 16-6 | 16 | 1.1 | 3.2 | 170 | 310 | 170 | 4-Φ33 | 400 | 270 | 365 | 35 | 520 | 130 | |||
| 20-6 | 20 | 1.5 | 3.8 | 170 | 310 | 170 | 4-Φ33 | 400 | 270 | 365 | 35 | 505 | 130 | |||
| 30-6 | 30 | 2.2 | 5.5 | 220 | 350 | 200 | 4-Φ39 | 450 | 313 | 425 | 45 | 600 | 180 | |||
| 40-6 | 40 | 3.0 | 7.5 | 220 | 350 | 200 | 4-Φ39 | 450 | 313 | 425 | 45 | 650 | 200 | |||
| 50-6 | 50 | 3.7 | 9.5 | 250 | 350 | 210 | 4-Φ39 | 434 | 350 | 420 | 40 | 670 | 265 | |||
| 63-6 | 63 | 4.2 | 11 | 250 | 350 | 210 | 4-Φ39 | 434 | 350 | 420 | 40 | 700 | 285 | |||
| 75-6 | 75 | 5.5 | 13 | 250 | 380 | 210 | 4-Φ39 | 480 | 350 | 465 | 40 | 760 | 340 | |||
| 85-6 | 85 | 6.3 | 16 | 250 | 380 | 210 | 6-Φ39 | 480 | 350 | 465 | 40 | 790 | 360 | |||
| 100-6 | 100 | 7.5 | 18 | 280 | 480 | 260 | 6-Φ39 | 530 | 420 | 580 | 65 | 850 | 450 | |||
