安陽萊億生產的BZD粉塵防爆型振動源三相異步電動機，簡稱BZD粉塵防爆href="#"，防爆安全性能符合GB3836.1-2010《爆炸性氣體環境用電氣設備 第1部分：通用要求》及GB12476.1-2010《可燃性粉塵環境用電氣設備 第1部分：用外殼和限制表面溫度保護的電氣設備第1節：電氣設備的技術要求》的規定，防爆標志為DIPA21 T4適合于溫度組別為T1 ～ T4的可燃性粉塵環境的21區、22區使用。

　　本防爆href="#"適用于要求防爆的振動給料機、振動水平輸送機、振動直線篩、高效重型篩、琴弦篩、防閉塞裝置，振動放礦機、調速式電機振動給料機、雙向振動篩等振動機械。

性能特點

　　1、與其它類型激振器相比，它是將振動源與動力源合為一體的新型隔爆型激震源，電機允許滿壓直接啟動。具有結構緊湊，易維護，激振力大并可調，產品成本低，能耗小，可通用化，標準化的特點。

　　2、href="#"底座均用QT450球墨鑄鐵鑄造而成，端蓋、內檔接線盒、接線蓋采用HT250鑄鐵鑄造，具有很高的機械強度，軸承采用較大的6系列軸承，能承受不大于20g振動加速度的要求。偏心塊用Q235制成。偏心塊分固定和可調兩種，激震力調節范圍從60%、70%、80%、90%到100%的額定激振力，或根據用戶要求設定。

質量保證

　　1、本系列href="#"采用F級絕緣，防爆等級為IP55，采取自身冷卻方式，連續運轉方式。href="#"允許滿壓直接起動。
　　2、執行國家級行業標準，防爆性能符合GB3836.1/GB3836.2，振動源性能符合JB5330。
　　3、本產品均由國家防爆電氣產品質量監督檢驗中心檢驗，確保產品安全、可靠，有礦用產品安全標志證書、全國工業產品生產許可證書、防爆合格證書，可放心選購。

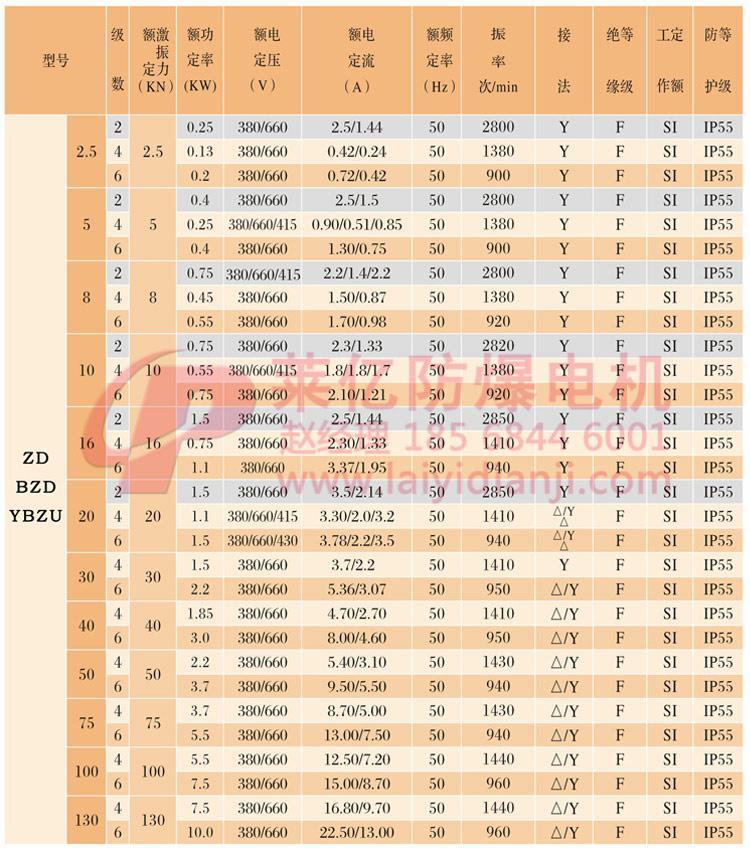

技術參數

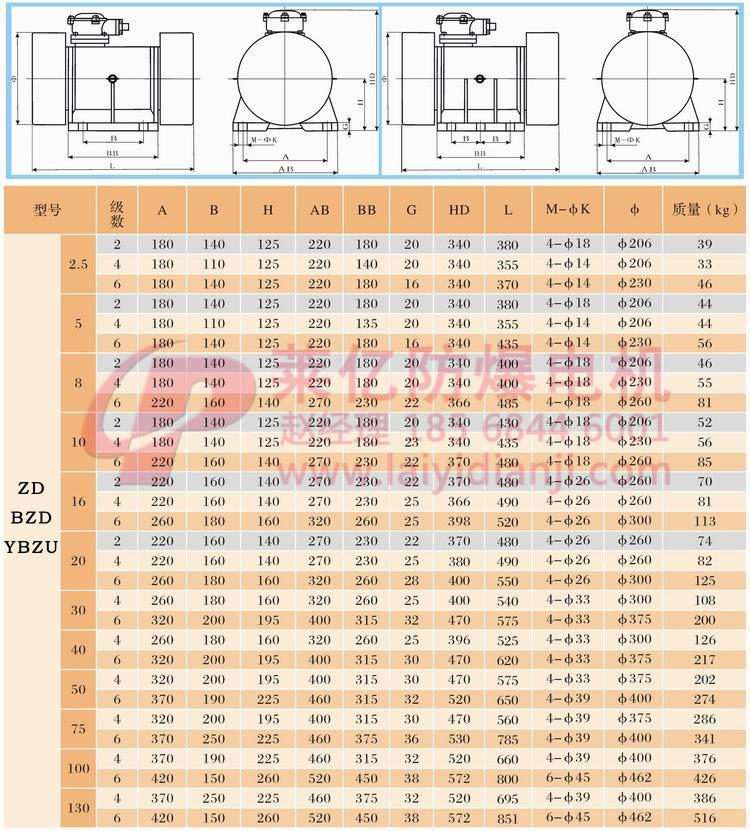

安裝尺寸



安陽市萊億防爆電機有限責任公司
聯系人：趙經理
手  機：18568446001
客服QQ：2598895981
電　話：0185-68446001
郵　箱：ad@laiyidianji.com
網  站：//www.laiyidianji.com
微  信：laiyidianji
地　址：河南省安陽市開發區長江大道與興國路交叉口西北角院內
郵  編：455099

---------------------------------------------------------
