| 產品屬性 | 86步進電機 |
|---|---|
| 相數 | 2 |
| 電壓(V) | 24-80 |
| 轉矩(N.M) | 7.5 |
| 品牌 | 時代超群 |

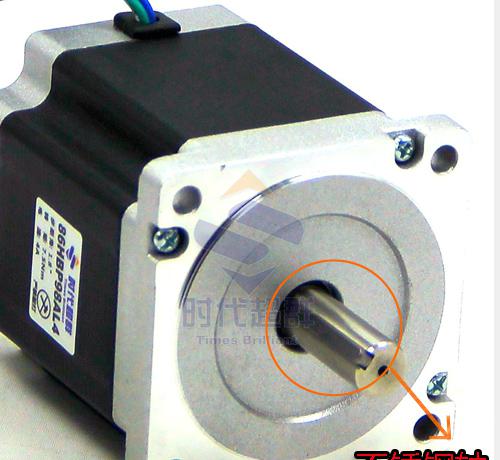

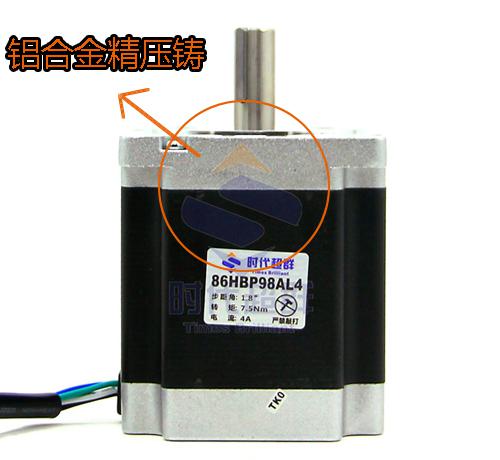

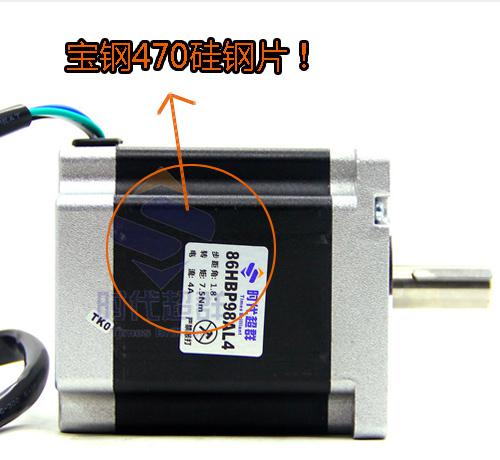

| 型號 | 86HBP98AL4-TK0 |
L1=35MM L2=98MM

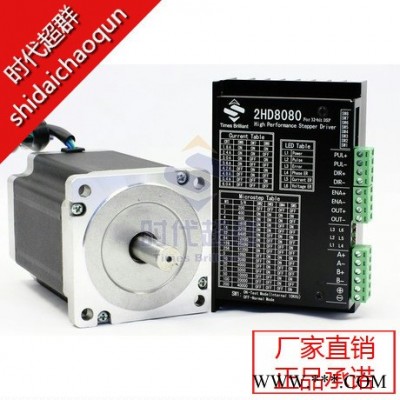

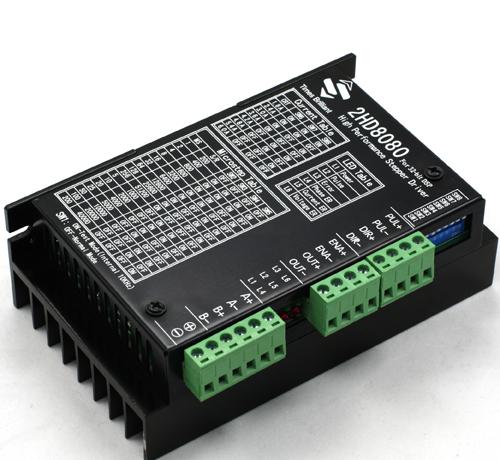

2HD8080 86步進電機驅動器 256細分 7A
86步進電機安裝支架
| 型號 Model | 老型號 old Model | 相數 Phase | 步距角 Step Angle | 靜轉矩 Torque (Nm) | 電流 Current (A) | 相電阻 Resistance (Ω) | 相電感 Inductance (mH) |
| 86HBP65AL4-TF0 | 86BYG250-65 | 2 | 1.8° | 2.8 | 3.0 | 0.58 | 3.35 |
| 86HBS80AL4-TK0 | 86BYG250-80 | 2 | 1.8° | 4.0 | 4.0 | 1.4 | 8.1 |
| 86HBP98AL4-TK0 | 86BYG250-98 | 2 | 1.8° | 7.5 | 4.0 | 0.5 | 7.4 |
| 86HBP113AL4-TK0 | 86BYG250-113 | 2 | 1.8° | 8.5 | 4.0 | 0.6 | 11.0 |
| 86HBP150AL4-TK0 | 86BYG250-150 | 2 | 1.8° | 12.0 | 4.0 | 0.84 | 9.7 |
| 86HBS80AL4-DK0 | 86BYG250-80（雙） | 2 | 1.8° | 4.0 | 4.0 | 1.3 | 8.1 |
| 86HBP98AL4-TK0B | 86BYG250-98(剎) | 2 | 1.8° | 7.5 | 4.0 | 0.5 | 7.4 |
| 86HBP113AL4-DK0 | 86BYG250-113（雙） | 2 | 1.8° | 8.5 | 4.0 | 0.6 | 11.0 |
| 86HBP150AL4-DK0 | 86BYG250-150（雙） | 2 | 1.8° | 12.0 | 4.0 | 0.8 | 9.7 |
| 86HBP113AL4-TK0B | 86BYG250-113（剎車） | 2 | 1.8° | 8.5 | 4.0 | 0.6 | 11.0 |
| 86HBP150AL4-TK0B | 86BYG250-150（剎車） | 2 | 1.8° | 12.0 | 4.0 | 0.84 | 9.7 |
| 86HCY65AL3-TR0 | 86BYG350-65 | 3 | 1.2° | 2.0 | 3.0 | 0.2 | 1.6 |
| 86HCY98AL3-TR0 | 86BYG350-98 | 3 | 1.2° | 4.5 | 5.2 | 0.5 | 3.0 |
| 86HCY113AL3-TK0 | 86BYG350-113 | 3 | 1.2° | 6.0 | 5.2 | 0.4 | 5.9 |
| 86HCY150AL3-TK0 | 86BYG350-150 | 3 | 1.2° | 7.0 | 5.0 | 0.5 | 8.0 |
